Black 9U wall-mount server rack cabinet with mesh front door solid steel back door and side panels 14.6 inch adjustable depth

STARTECH

STARTECH RK9WALM 9U Wall Mount Server Rack 14.6" Deep

SKU CH-M7AE-TKG9R MPN RK9WALM

Wall-mount 9U server rack with 14.6-inch adjustable depth and 198.90 lb capacity

  • TypeWall Mount Cabinet
  • Rack Units9U
  • ColorBlack
  • Weight Capacity198.90 lbs.
  • SpecificationBack Door Construction: Solid Steel Frame Type: Enclosed Cab
  • FeaturesSave space by wall-mounting your servers or networking equip

Style 9U - 14.6" Deep

  • Save space by mounting servers flush to the wall with a 9U rack
  • Adjustable depth from 6 inches to 14.6 inches supports varied equipment

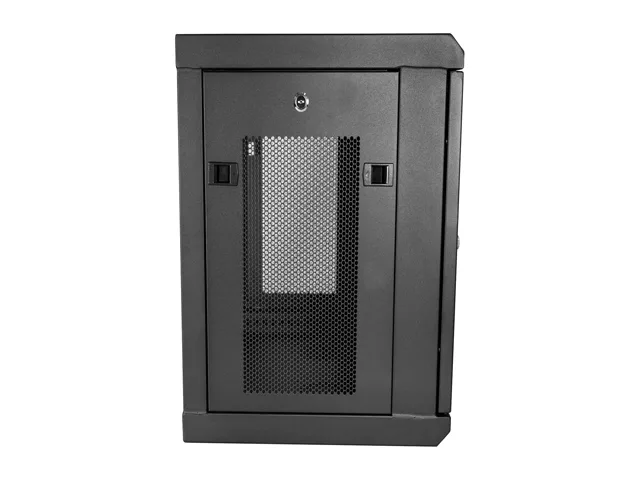

  • Lockable mesh front door and solid steel rear door secure critical hardware
  • Fully assembled unit includes a 1U shelf and cable management roll
  • Passive cooling via mesh doors and vented top and bottom panels

Space-Saving 9U Wall Cabinet

This 9U wall-mount enclosure holds servers or networking gear flush against the wall, freeing floor space in offices, closets or small server rooms. It ships fully assembled with a 1U shelf, cage nuts, screws and hook-and-loop cable ties. Lockable front and side panels secure mission-critical equipment while mesh doors and vented panels promote passive airflow.

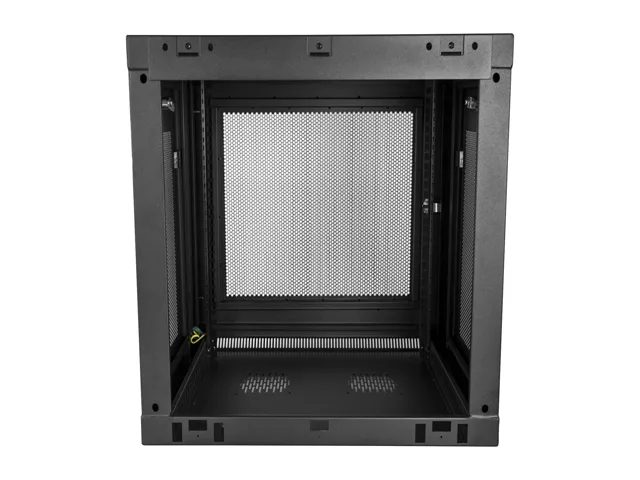

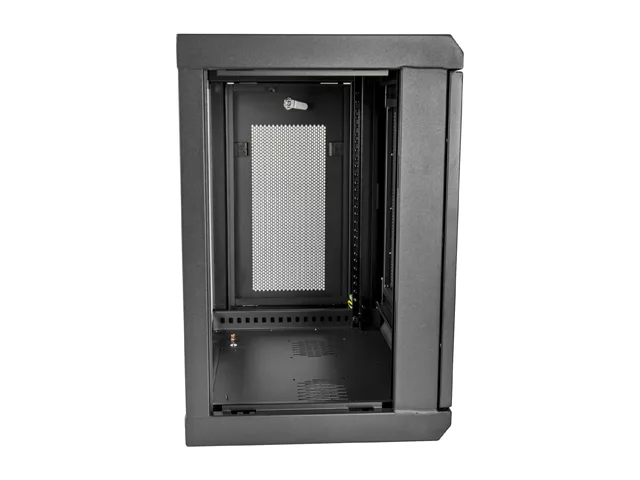

Wall Strength and Mounting Depth

Verify that the mounting surface can support up to 200 lbs (90 kg) including the cabinet and all installed hardware. The adjustable rails slide between 6 inches and 14.6 inches deep, so measure your deepest device before ordering. Two-post rail design accepts both tapped holes and square cage-nut holes for flexible equipment mounting.

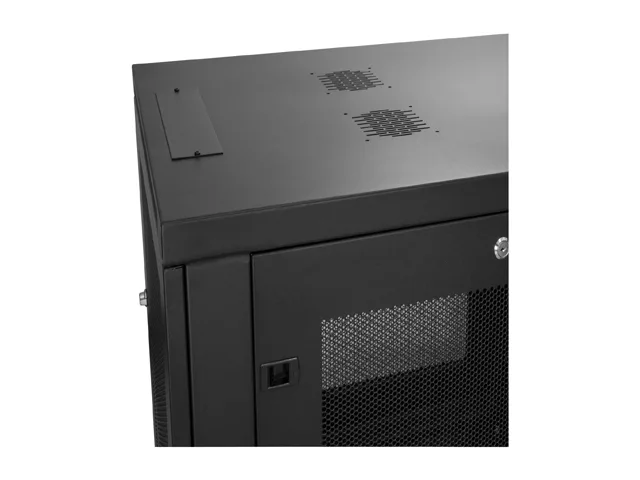

Passive Cooling and Access

Mesh front door and vented top and bottom panels allow natural convection without built-in fans, keeping noise at zero. Removable and reversible front door plus quick-release side panels give tool-free access for maintenance. Solid steel frame and 198.90 lb weight rating ensure stable operation under full load.

Highlights

  • Save space by mounting servers flush to the wall with a 9U rack
  • Adjustable depth from 6 inches to 14.6 inches supports varied equipment
  • Lockable mesh front door and solid steel rear door secure critical hardware
  • Fully assembled unit includes a 1U shelf and cable management roll
  • Passive cooling via mesh doors and vented top and bottom panels

Specifications

BrandStarTech.com
ModelRK9WALM
TypeWall Mount Cabinet
Rack Units9U
ColorBlack
Weight Capacity198.90 lbs.
SpecificationBack Door Construction: Solid Steel
Frame Type: Enclosed Cabinet
Front Door Construction: Steel Mesh
Front Door Key Lock: Yes
Front Door Reversible and / or Removable: Removable, Reversible
Mounting Options: Wall-Mount
Rack Type: 2-Post
Style: Wall-Mount
Wallmountable: Yes
Enclosure Type: Steel
External Depth: 17.7 in [45 cm]
External Height: 19.8 in [50.4 cm]
External Width: 23.6 in [60 cm]
Internal Depth: 16.9 in [43 cm]
Internal Height: 15.7 in [40 cm]
Internal Width: 17.7 in [45 cm]
Maximum Mounting Depth: 16.9 in [43 cm]
Minimum Mounting Depth: 2.4 in [6 cm]
FeaturesSave space by wall-mounting your servers or networking equipment
Easily install your equipment with adjustable 2-post mounting rails
Secure your mission-critical equipment with a locked enclosure
Maximize compatibility by switching the mounting rails between square cage nut holes or tapped 12-24 holes
1U shelf and hook-and-loop cable tie included
Included Accessory1 x wall-mount enclosure
1 x 1U shelf
1 x roll of hook-and-loop fastener
36 x 12-24 cage nuts
36 x 12-24 screws
2 x door keys
2 x side panel keys
1 x instruction manual
Unit Dimension19.80" x 23.60" x 17.70"
Shipping Weight48.60 lbs.
Shipping weight22.23 kg
Package size667 × 584 × 527 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the RK9WALM come with mounting hardware and a shelf, or do I need to buy those separately?

The package includes a 1U shelf, 36 cage nuts, 36 screws, two door keys, two side-panel keys and a roll of hook-and-loop fastener, so no extra hardware is required for basic installation.

Should I choose the 9U version or a different height for my patch panel and switch?

This model provides 9U of rack space; select it when your equipment fits within that height, otherwise choose a taller or shorter cabinet that matches your total U requirement.

What does the 14.6-inch adjustable depth mean once the cabinet is on the wall?

The mounting rails slide between 6 and 14.6 inches deep, letting you position gear flush to the wall or further out, while the 198.90 lb weight limit stays the same across the range.
