Black steel 12U wall-mount server rack with mesh front door and solid rear door

STARTECH

STARTECH RK1232WALHM 12U 32in Deep Wall Mount Server Rack

SKU CH-WSCA-PB4X6 MPN RK1232WALHM

Wall-mountable 12U steel cabinet, 32 inches deep, with hinged mesh front door, lockable side panels, and 90 kg capacity

  • TypeWall Mount Cabinet
  • Rack Units12U
  • ColorBlack
  • MaterialSteel
  • Weight Capacity198.90 lbs.
  • SpecificationBack Door: Construction Solid Steel Frame Type: Enclosed Cab

Style 12U - 32" Deep

  • Save space by wall-mounting servers or networking equipment in a 12U cabinet
  • Hassle-free access with a hinged enclosure that swings open for maintenance
  • Secure mission-critical gear behind a locking front door with included keys
  • Support up to 198.90 lbs of equipment on a sturdy steel frame

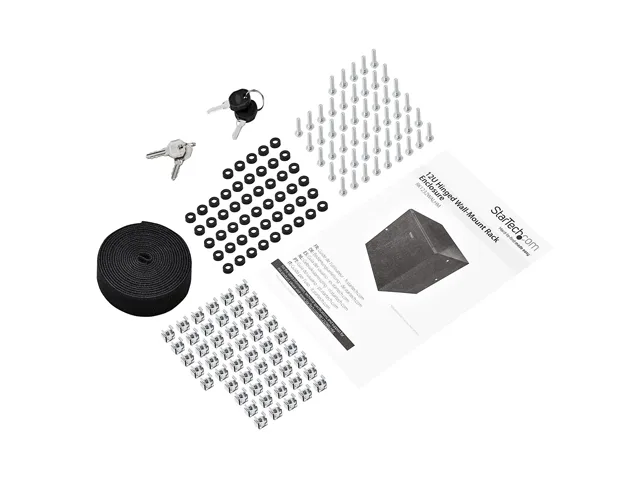

  • Includes 48 cage nuts, 48 screws, 1U shelf and hook-and-loop fastener for quick setup

12U Wall-Mount Server Cabinet

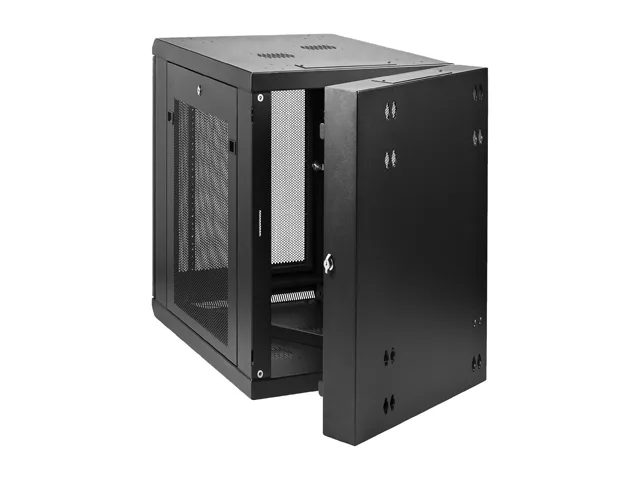

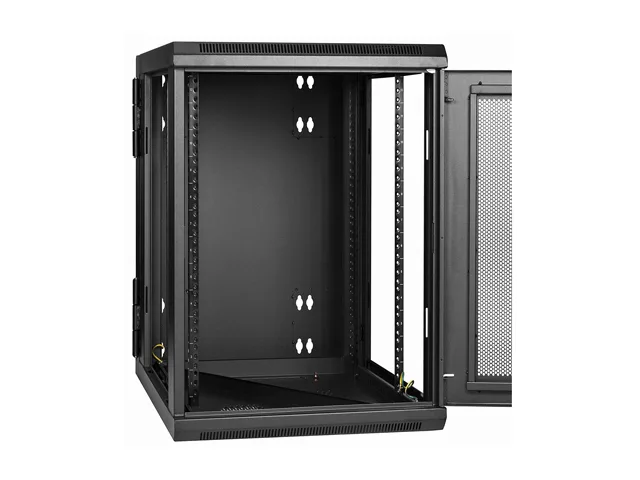

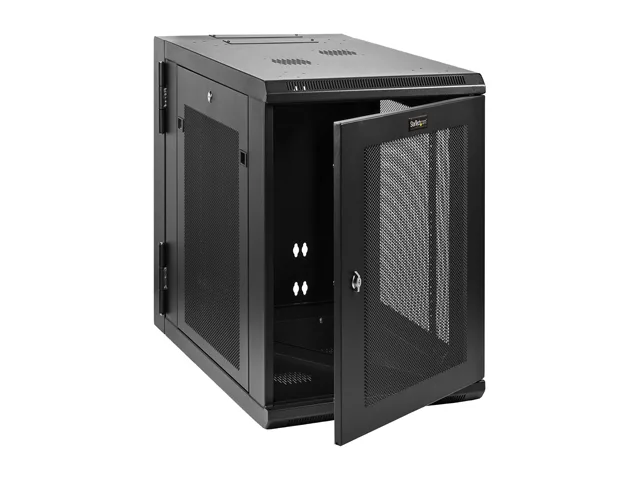

The StarTech RK1232WALHM is a 12U wall-mount server cabinet built from steel with a steel-mesh front door and solid-steel rear door. It provides an enclosed, lockable space for rack-mount servers, network switches and patch panels in locations where floor space is limited. The hinged frame swings open for equipment access and the front door is removable and reversible. This unit targets installers who need secure, space-saving housing for active gear.

198.90 lbs Weight Limit and 27.60 in Usable Depth

The cabinet supports a maximum load of 198.90 lbs (90 kg) and offers 27.60 inches (701.04 mm) of internal rack depth. Equipment deeper than 27.60 inches will not fit, and the total installed weight must stay within the 198.90 lbs rating. The four-post design distributes load across front and rear rails, but the wall structure and mounting hardware must also handle the combined weight of cabinet plus gear. Installers should verify wall strength before mounting.

12U Height and 32 in Overall Depth

The 12U vertical space accommodates up to twelve 1U devices or a mix of taller units such as 2U or 4U appliances. The overall enclosure measures 32 inches deep, 25.10 inches high and 23.60 inches wide, so the wall cavity must clear those outer dimensions. The package includes a 1U shelf, forty-eight 12-24 cage nuts and screws, two door keys, two side-panel keys and hook-and-loop fastener rolls. Buyers needing more than 12U of rack height or a deeper internal cavity should consider a larger floor-standing or wall-mount model.

Highlights

  • Save space by wall-mounting servers or networking equipment in a 12U cabinet
  • Hassle-free access with a hinged enclosure that swings open for maintenance
  • Secure mission-critical gear behind a locking front door with included keys
  • Support up to 198.90 lbs of equipment on a sturdy steel frame
  • Includes 48 cage nuts, 48 screws, 1U shelf and hook-and-loop fastener for quick setup

Specifications

BrandStarTech.com
ModelRK1232WALHM
TypeWall Mount Cabinet
Rack Units12U
ColorBlack
MaterialSteel
Weight Capacity198.90 lbs.
SpecificationBack Door: Construction Solid Steel
Frame Type: Enclosed Cabinet
Front Door: Construction Steel Mesh
Front Door Key Lock: Yes
Front Door Reversible and / or Removable: Removable / Reversible
Rack Type: 4-Post
Side Panels Reversible and / or Removable: Removable
Style: Wall-Mount
Wall-mountable: Yes
External Depth: 33.5 in [85 cm]
External Height: 25.1 in [63.7 cm]
External Width: 23.6 in [60 cm]
Internal Depth: 32.7 in [83 cm]
Internal Height: 21.3 in [54 cm]
Internal Width: 17.7 in [45 cm]
Maximum Mounting Depth: 27.6 in [70 cm]
Minimum Mounting Depth: 2.4 in [6 cm]
FeaturesSave space by wall-mounting your servers or networking equipment
Hassle-free access with a hinged cabinet
Secure your mission-critical equipment with a locked enclosure
Easily install your equipment with adjustable mounting rails
Houses your deep rack-mount equipment with mounting depth up to 32 in
Maximize compatibility by switching the mounting rails between square cage nut holes or tapped 12-24 holes
1U shelf and hook-and-loop cable tie included
Included Accessory1 x wall-mount enclosure
1 x 1U shelf
1 x roll of hook-and-loop fastener
48 x 12-24 cage nuts
48 x 12-24 screws
2 x door keys
2 x side panel keys
1 x instruction manual
Unit Dimension25.10" x 23.60" x 33.50"
Shipping weight59.19 kg
Package size889 × 787 × 640 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 12U version or look for a different capacity?

This model provides 12 rack units of mounting space, suitable for a small stack of servers, switches or patch panels.

What does the 32-inch depth mean once the cabinet is on the wall?

It gives 27.60 inches (701.04 mm) of usable rack depth for equipment, while the overall cabinet projects 33.50 inches from the wall.

How does the wall-mount interface limit what I can install?

The steel frame supports up to 90 kg (198.90 lbs) of equipment, so the combined weight of all mounted devices must stay within that figure.
