Black 12U wall-mount server rack, 17 inch deep, hinged mesh front door, solid rear door, side panels, 1U shelf included

STARTECH

STARTECH RK12WALHM 12U 17" Deep Wall Mount Server Rack

SKU CH-4RX3-X57PE MPN RK12WALHM

A 12U wall-mount cabinet holds servers or networking gear 17 inches deep with a hinged enclosure for easy access and lockable steel-mesh front door

  • TypeWall Mount Cabinet
  • Rack Units12U
  • ColorBlack
  • Weight Capacity198.90 lbs.
  • SpecificationBack Door Construction: Solid Steel Frame Type: Enclosed Cab
  • FeaturesSave space by wall-mounting your servers or networking equip

Style 12U - 17" Deep

  • Wall-mount design saves floor space with 12U capacity
  • Hinged enclosure swings open for quick equipment access
  • Lockable steel-mesh front door secures installed hardware
  • Adjustable 4-post rails support up to 198.90 lbs
  • Includes 1U shelf, cage nuts, screws and keys

Wall-Mount 12U Server Cabinet

The STARTECH RK12WALHM is a 12U wall-mount cabinet designed to hold servers and networking equipment in space-constrained environments. It suits IT administrators and small-business installers who need a secure, enclosed rack without consuming floor space. The black steel frame supports up to 198.90 lbs of equipment. Its 17-inch depth accommodates shallow-depth hardware.

Hinged Enclosure With Adjustable Rails

The cabinet mounts directly to the wall, freeing floor area while keeping patch panels, switches and shallow servers accessible. A hinged design swings the entire enclosure away from the wall for front and rear access during installation and maintenance. Adjustable 12-24 mounting rails let you position gear at the required depth. The package includes 48 cage nuts, 48 screws, a 1U shelf and hook-and-loop fasteners for cable management.

Locked Steel Doors And Solid Rear Panel

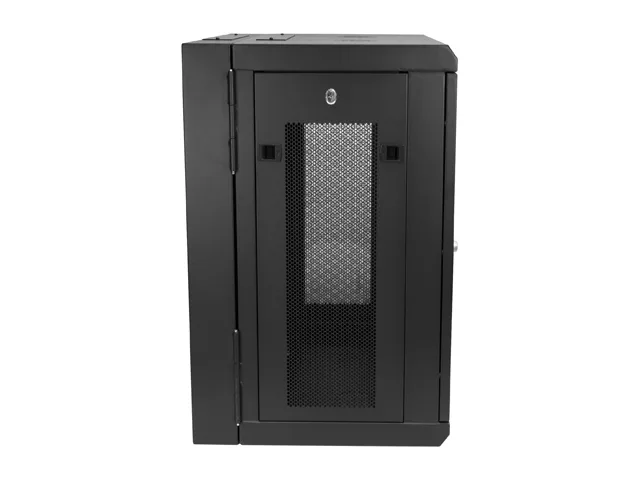

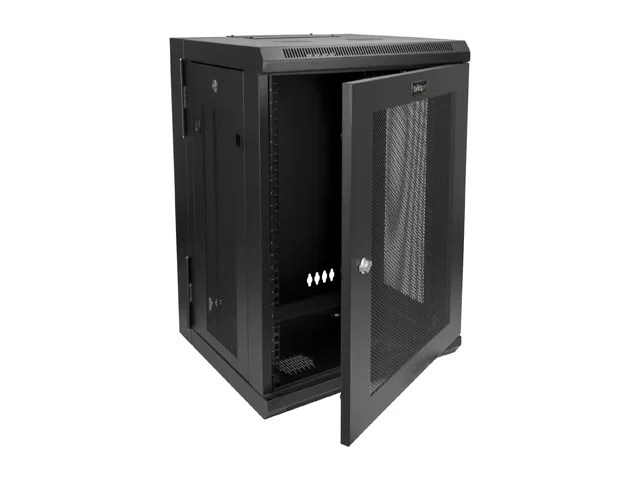

A steel-mesh front door and solid steel rear door both feature key locks to protect mission-critical hardware. The front door is removable and reversible to suit the mounting location. Two side panels with separate keys complete the physical security. Overall dimensions are 25.10" high, 23.60" wide and 21.70" deep, allowing the unit to fit standard wall stud spacing. Passive airflow through the mesh door dissipates heat without integrated fans.

Highlights

  • Wall-mount design saves floor space with 12U capacity
  • Hinged enclosure swings open for quick equipment access
  • Lockable steel-mesh front door secures installed hardware
  • Adjustable 4-post rails support up to 198.90 lbs
  • Includes 1U shelf, cage nuts, screws and keys

Specifications

BrandStarTech.com
ModelRK12WALHM
TypeWall Mount Cabinet
Rack Units12U
ColorBlack
Weight Capacity198.90 lbs.
SpecificationBack Door Construction: Solid Steel
Frame Type: Enclosed Cabinet
Front Door Construction: Steel Mesh
Front Door Key Lock: Yes
Front Door Reversible and / or Removable: Removable, Reversible
Rack Type: 4-Post
Side Panel Construction: Steel Mesh
Style: Wall-Mount
Wall mountable: Yes
Enclosure Type: Steel
External Depth: 21.7 in [55 cm]
External Height: 25.1 in [63.7 cm]
External Width: 23.6 in [60 cm]
Internal Depth: 20.9 in [53 cm]
Internal Height: 21 in [53.4 cm]
Internal Width: 17.7 in [45 cm]
Maximum Mounting Depth: 16.1 in [41 cm]
Minimum Mounting Depth: 2.4 in [6 cm]
FeaturesSave space by wall-mounting your servers or networking equipment
Hassle-free access with a hinged cabinet
Easily install your equipment with adjustable mounting rails
Secure your mission-critical equipment with a locked enclosure
Maximize compatibility by switching the mounting rails between square cage nut holes or tapped 12-24 holes
1U shelf and hook-and-loop cable tie included
Included Accessory1 x wall-mount enclosure
1 x 1U shelf
1 x roll of hook-and-loop fastener
48 x 12-24 cage nuts
48 x 12-24 screws
2 x door keys
2 x side panel keys
1 x instruction manual
Unit Dimension25.10" x 23.60" x 21.70"
Shipping Weight68.50 lbs.
Shipping weight32.75 kg
Package size719 × 676 × 625 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much weight can the 12U rack hold before the wall mounts become the limiting factor?

The cabinet is rated for 198.90 lbs total capacity; ensure your wall structure and fixings can support that load plus the enclosure weight.

Does the solid steel back door and mesh front door provide enough passive airflow for equipment running continuously?

The mesh front door allows front-to-back airflow while the solid rear contains cables; add active fans if your gear generates high heat in a closed room.

What wall type and fixings are needed to mount the 25.10 x 23.60 x 21.70 inch enclosure securely?

You must supply lag bolts or concrete anchors rated for the 198.90 lb load; the package includes only the cage nuts, screws and hook-and-loop fasteners for internal gear.
