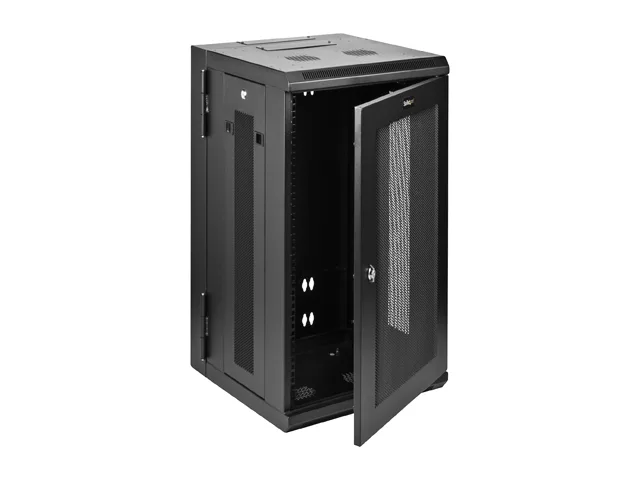

Black 15U wall-mount server rack with hinged mesh front door and solid rear door

STARTECH

STARTECH RK1520WALHM 15U 20in deep wall-mount server rack

SKU CH-K8A4-DESX7 MPN RK1520WALHM

A 15U wall-mount cabinet with a hinged enclosure for easy access, 20 inch depth, and a 198.90 lbs weight capacity

  • TypeWall Mount Cabinet
  • Rack Units15U
  • ColorBlack
  • Weight Capacity198.90 lbs.
  • SpecificationBack Door Construction: Solid Steel Frame Type: Enclosed Cab
  • FeaturesSave space by wall-mounting your servers or networking equip

Style 15U - 20" Deep

  • Wall-mount design frees floor space with a 15U enclosed cabinet
  • Hinged frame swings open for quick front and rear access
  • Lockable steel-mesh front door and solid rear door secure equipment
  • 1 in usable depth fits standard servers and network gear
  • Supplied with 1U shelf, cage nuts, screws and hook-and-loop ties

15U wall-mount cabinet for servers and networking

The StarTech RK1520WALHM is a 15U enclosed rack that bolts to the wall, saving floor space in server rooms, offices or wiring closets. Its four-post frame accepts standard 19in equipment such as servers, switches and patch panels. Lockable front and side panels protect mission-critical gear from unauthorised access.

16.1in usable rack depth decides equipment fit

Only devices that fit within a 16.1in (408.94mm) mounting depth can be installed, so measure your hardware before purchase. The cabinet supports a static load of 90kg (198.90lbs), limiting the total weight of mounted equipment. Deeper servers or heavier blade chassis will require a floor-standing alternative.

Passive cooling relies on mesh front door airflow

A steel mesh front door allows air to enter the cabinet while solid steel sides and rear contain noise within the enclosure. No fans are included, so thermal performance depends entirely on room ventilation and the heat output of installed devices. The hinged design swings open for quick maintenance without removing the unit from the wall.

Highlights

  • Wall-mount design frees floor space with a 15U enclosed cabinet
  • Hinged frame swings open for quick front and rear access
  • Lockable steel-mesh front door and solid rear door secure equipment
  • 1 in usable depth fits standard servers and network gear
  • Supplied with 1U shelf, cage nuts, screws and hook-and-loop ties

Specifications

BrandStarTech.com
ModelRK1520WALHM
TypeWall Mount Cabinet
Rack Units15U
ColorBlack
Weight Capacity198.90 lbs.
SpecificationBack Door Construction: Solid Steel
Frame Type: Enclosed Cabinet
Front Door Construction: Steel Mesh
Front Door Key Lock: Yes
Front Door Reversible and / or Removable: Removable, Reversible
Rack Type: 4-Post
Side Panel Construction: Steel Mesh
Style: Wall-Mount
Wall mountable: Yes
Enclosure Type: Steel
External Depth: 21.7 in [55 cm]
External Height: 30.3 in [77 cm]
External Width: 23.6 in [60 cm]
Internal Depth: 20.9 in [53 cm]
Internal Height: 26.3 in [66.7 cm]
Internal Width: 17.7 in [45 cm]
Maximum Mounting Depth: 16.1 in [41 cm]
Minimum Mounting Depth: 2.4 in [6 cm]
FeaturesSave space by wall-mounting your servers or networking equipment
Hassle-free access with a hinged cabinet
Secure your mission-critical equipment with a locked enclosure
Easily install your equipment with adjustable mounting rails
Maximize compatibility by switching the mounting rails between square cage nut holes or tapped 12-24 holes
1U shelf and hook-and-loop cable tie included

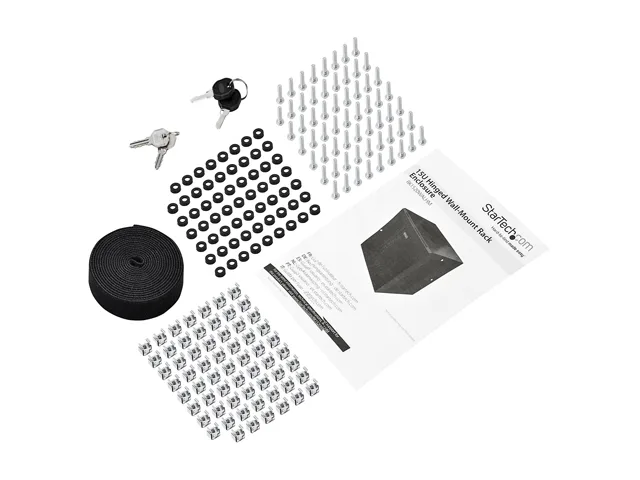

Included Accessory1 x wall-mount enclosure
1 x 1U shelf
1 x 10 ft. hook and loop
60 x 12-24 cage nuts
60 x 12-24 screws
2 x door keys
2 x side panel keys
1 x instruction manual
Unit Dimension30.30" x 23.60" x 21.70"
Shipping Weight185.60 lbs.
Shipping weight43.55 kg
Package size864 × 686 × 635 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much vertical equipment space does the 15U cabinet provide?

The cabinet provides 15 rack units of vertical mounting space for servers or networking gear.

What is the usable depth inside the 20-inch deep enclosure?

The internal rack depth is 16.1 inches, so equipment up to that length will fit.

What wall-mounting hardware is needed to secure the 198.90 lb cabinet?

The unit includes the hinged enclosure and a 1U shelf; installer-supplied lag bolts or anchors rated for the loaded weight are required.
