Black 6U wall-mount server rack cabinet with mesh front door solid steel rear door and included shelf

STARTECH

STARTECH RK616WALM 6U Wall Mount Server Rack 14.8" Deep

SKU CH-H63K-CZN89 MPN RK616WALM

A 6U wall-mount cabinet holds servers or networking gear with 14.8 in. depth, 198.90 lb capacity, locking mesh front door, solid rear door and included 1U shelf

  • TypeWall Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • Weight Capacity198.90 lbs.
  • SpecificationBack Door Construction: Solid Steel Frame Type: Enclosed Cab
  • FeaturesSave space by wall-mounting your servers or networking equip

Style 6U - 14.8" Deep

  • Wall-mount design saves floor space with 6U enclosed cabinet
  • 8 inch depth fits standard networking gear in tight areas
  • 90 lbs weight capacity supports heavy server equipment securely
  • Lockable front and side panels protect mission-critical hardware
  • Includes 1U shelf, cage nuts, screws and hook-and-loop fasteners for quick setup

Space-Saving Wall Mount Cabinet

The StarTech.com RK616WALM is a 6U wall-mount server rack designed to hold networking or server equipment flush against a wall. It suits installers who need a secure, enclosed cabinet in spaces where floor-standing racks are impractical. The unit arrives fully assembled with a 1U shelf and mounting hardware included.

Mounting Depth and Weight Limit

The cabinet provides a mounting depth of 14.8 inches and supports a weight capacity of 200 lbs (90 kg). This single figure determines whether your specific server chassis or switch will fit and be safely supported. Equipment deeper than 14.8 inches cannot be accommodated in this enclosure.

Passive Cooling and Access

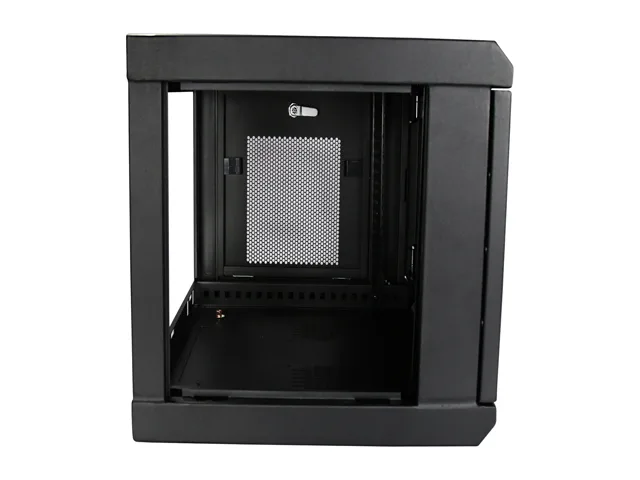

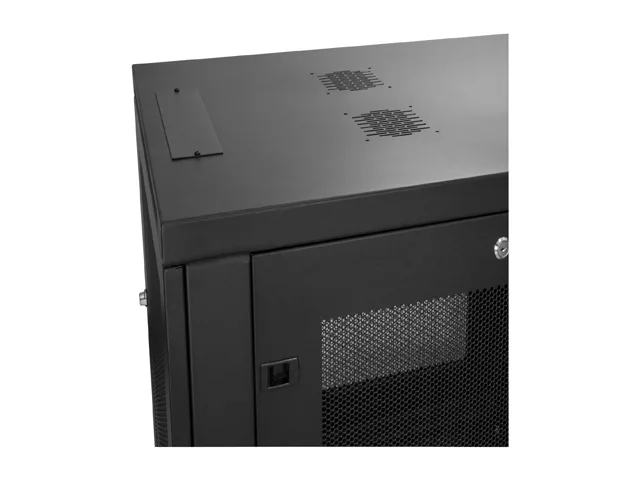

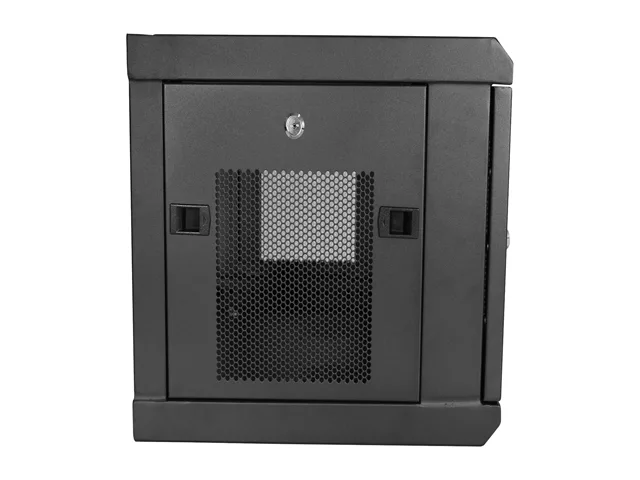

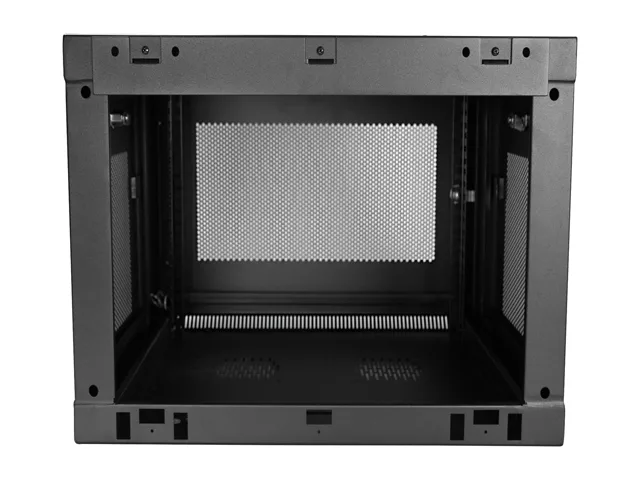

Passive airflow is promoted through a steel mesh front door, vented top panel and vented bottom panel. Solid steel construction with quick-release side panels allows easy internal access during maintenance. Lockable front and side doors secure the installed equipment while maintaining ventilation.

Highlights

  • Wall-mount design saves floor space with 6U enclosed cabinet
  • 8 inch depth fits standard networking gear in tight areas
  • 90 lbs weight capacity supports heavy server equipment securely
  • Lockable front and side panels protect mission-critical hardware
  • Includes 1U shelf, cage nuts, screws and hook-and-loop fasteners for quick setup

Specifications

BrandStarTech.com
ModelRK616WALM
TypeWall Mount Cabinet
Rack Units6U
ColorBlack
Weight Capacity198.90 lbs.
SpecificationBack Door Construction: Solid Steel
Frame Type: Enclosed Cabinet
Front Door Construction: Steel Mesh
Front Door Key Lock: Yes
Front Door Reversible and / or Removable: Removable, Removable
Mounting Options: Wall-Mount
Rack Type: 2-Post
Style: Wall-Mount
U Height: 6U
Wallmountable: Yes
Enclosure Type: Steel
External Depth: 17.7 in [45 cm]
External Height: 14.6 in [37 cm]
External Width: 23.6 in [60 cm]
Internal Depth: 16.9 in [43 cm]
Internal Height: 10.5 in [26.7 cm]
Internal Width: 17.7 in [45 cm]
Maximum Mounting Depth: 16.5 in [42 cm]
FeaturesSave space by wall-mounting your servers or networking equipment
Easily install your equipment with mounting hardware included
Secure your mission-critical equipment with a locked enclosure
Maximize compatibility by switching the mounting rails between square cage nut holes or tapped 12-24 holes
1U shelf and hook-and-loop cable tie included
Included Accessory1 x wall-mount enclosure
1 x 1U shelf
1 x roll of hook-and-loop fastener
24 x 12-24 cage nuts
24 x 12-24 screws
2 x door keys
2 x side panel keys
1 x instruction manual
Unit Dimension14.60" x 23.60" x 17.70"
Shipping Weight62.20 lbs.
Shipping weight18.17 kg
Package size671 × 528 × 442 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much usable depth does the 14.8-inch cabinet leave for equipment once it is on the wall?

The enclosure provides a mounting depth of 14.8 inches, with an overall depth of 17.70 inches including doors and panels.

What mounting pattern do the included 12-24 cage nuts and screws follow?

The hardware fits standard 19-inch EIA rack rails with tapped or square holes on universal vertical spacing.

What wall fixings are needed to hold the rated 198.90 lb load?

The rack mounts directly to wall studs or masonry using the supplied hardware; installer must supply lag bolts or anchors rated for the total weight.
