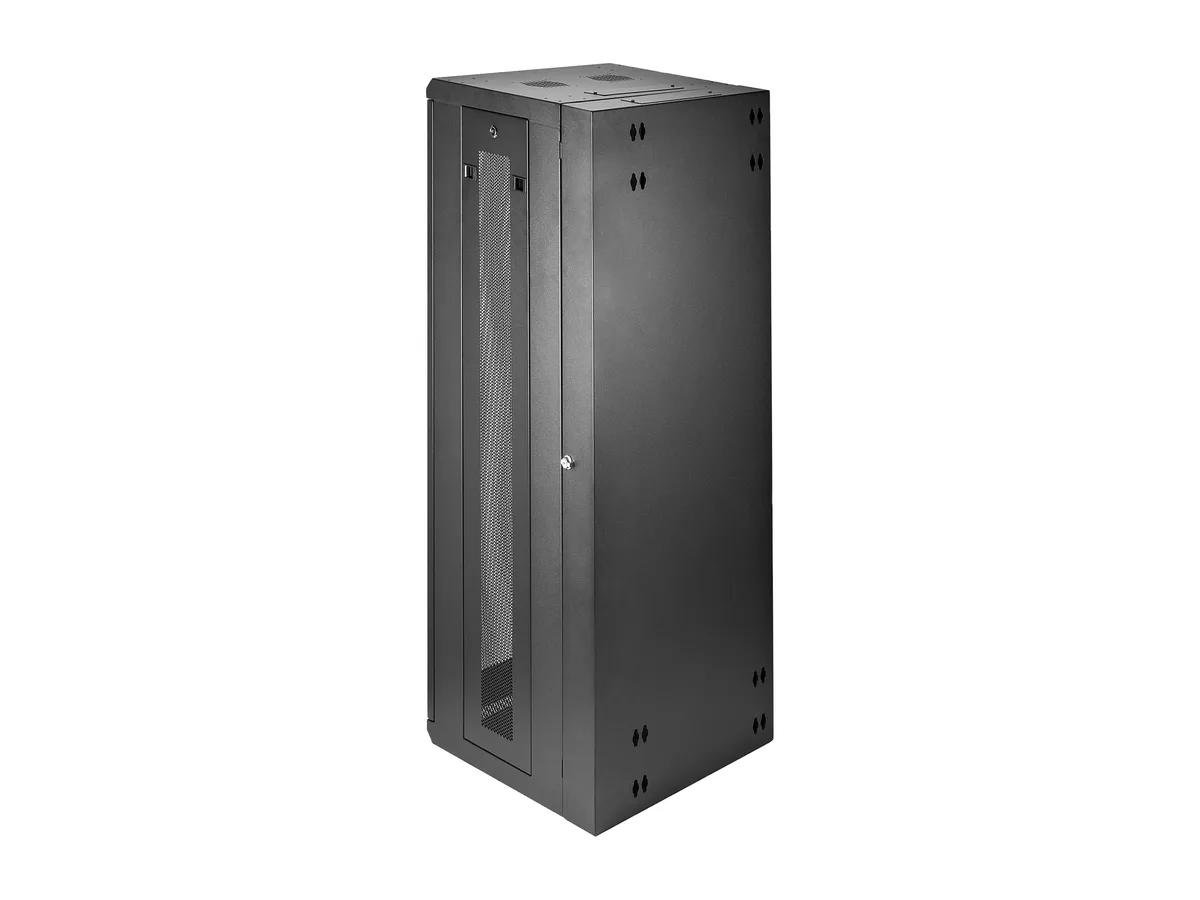

Black 26U wall-mount server rack cabinet, 20 inch depth, mesh front door, solid rear door, hinged enclosure

STARTECH

STARTECH RK2620WALHM 26U Wall Mount Server Rack 20" Deep

SKU CH-VYRG-B809W MPN RK2620WALHM

Wall-mountable 26U enclosed cabinet with hinged rear access, adjustable 3 to 20 inch depth and 200 lb capacity

  • TypeWall Mount Cabinet
  • Rack Units26U
  • ColorBlack
  • Weight Capacity198.90 lbs.
  • SpecificationBack Door Construction: Solid Steel Frame Type: Enclosed Cab
  • FeaturesSave space by wall-mounting your servers or networking equip

Style 26U - 20" Deep

  • Wall-mount design saves valuable floor space in tight areas
  • 26U capacity with adjustable 3 to 20 inch mounting depth fits diverse equipment
  • 200 lb weight rating on 4-post frame supports heavy servers securely

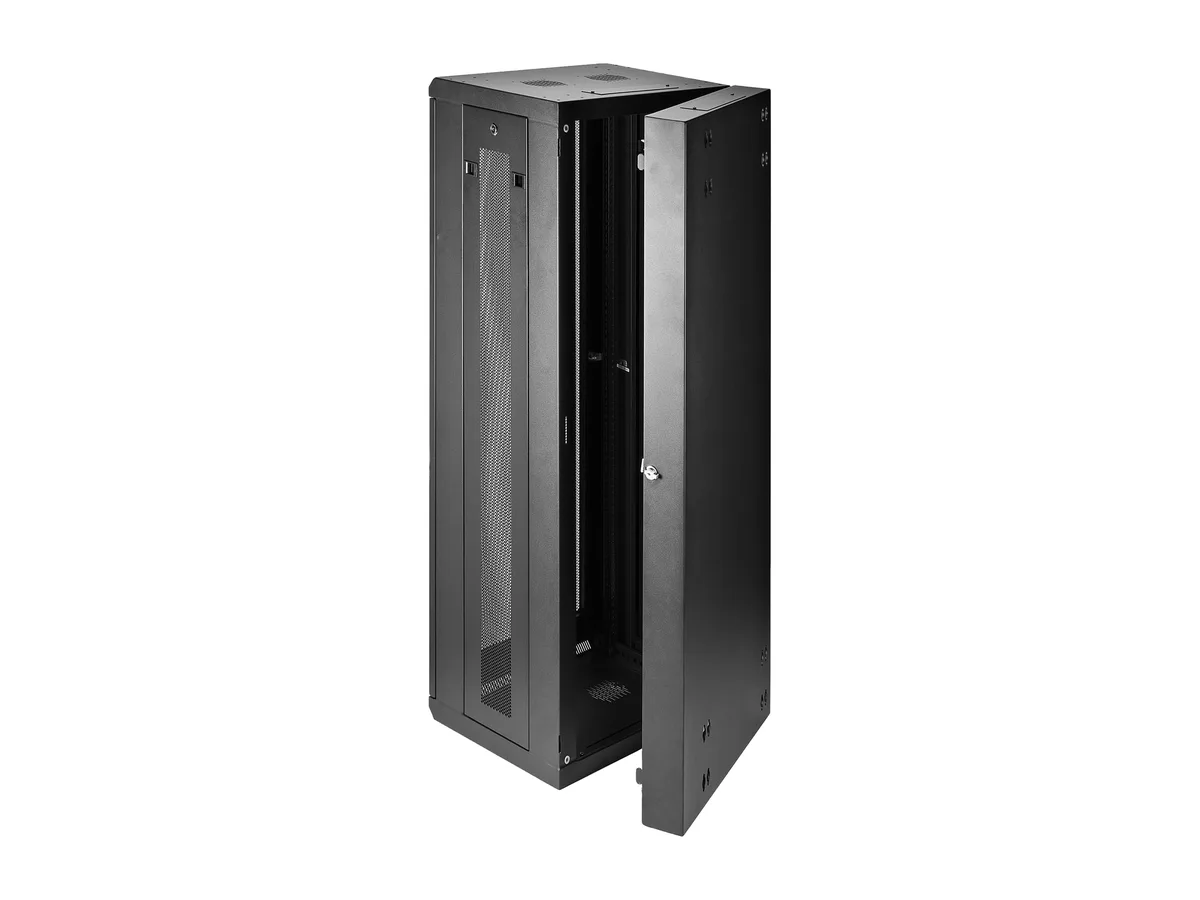

  • Hinged rear door swings 180° for full rear access to cabling

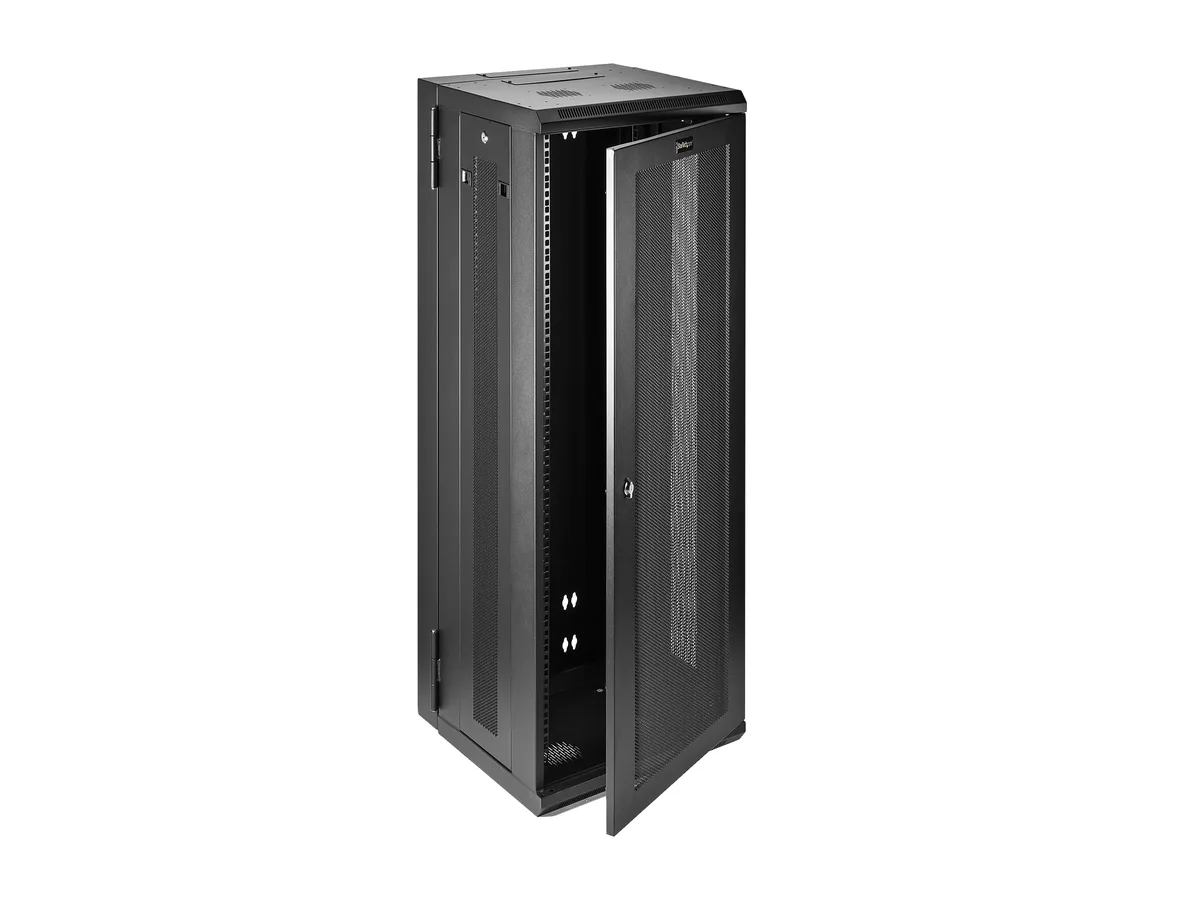

  • Locking mesh front door and solid steel sides protect mission-critical hardware

26U Wall-Mount Server Rack

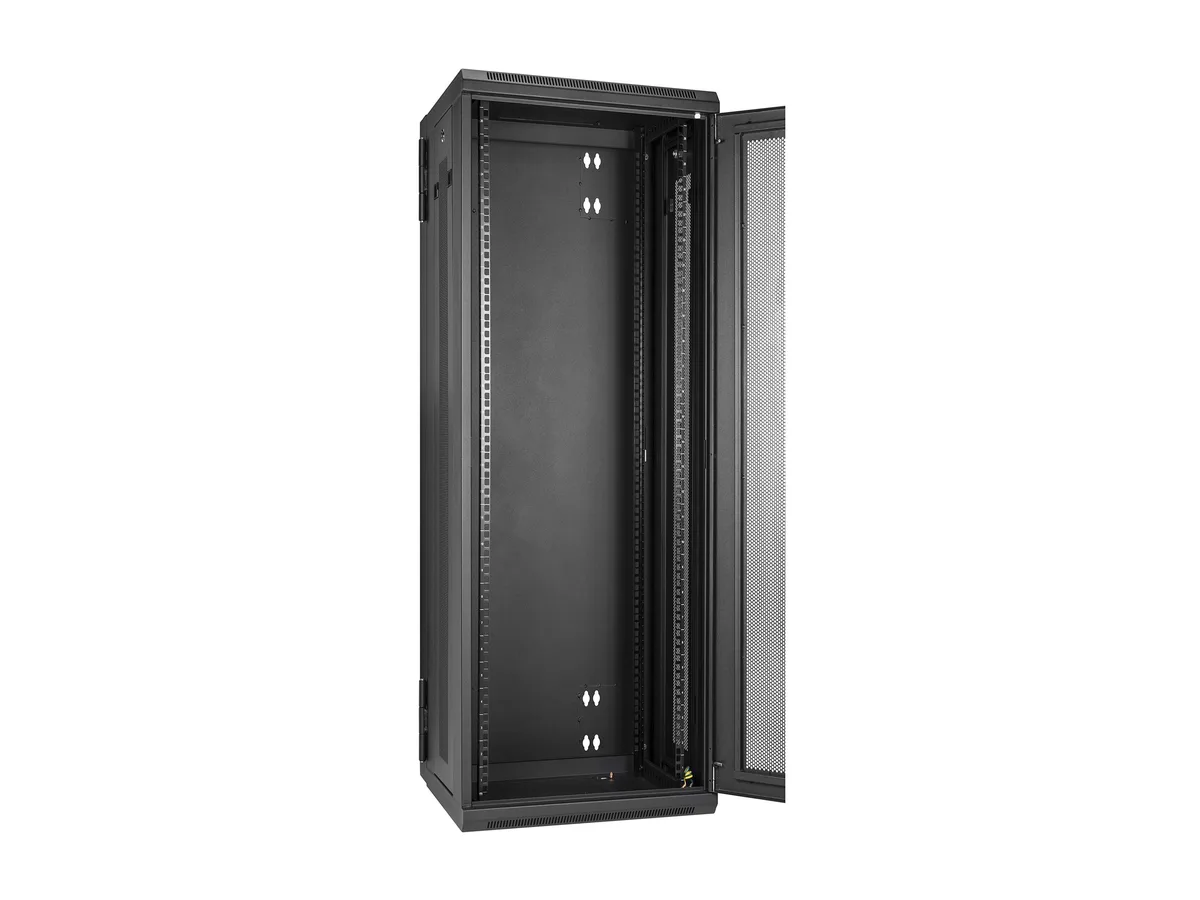

This 26U wall-mount cabinet holds EIA-310 compliant servers and networking gear in a secure four-post enclosure. It mounts flush to the wall to reclaim floor space in offices, classrooms, retail stores or server rooms. The hinged rear door swings away from the wall for full access to equipment and cabling. Adjustable mounting depth ranges from 3 to 20 inches to fit a variety of chassis lengths.

Passive Cooling and Solid Steel Build

Mesh front doors and vented top and bottom panels promote passive airflow through the cabinet without added fans. The frame uses solid steel construction rated for a total load capacity of 200 lb (90 kg), and the rear door is solid steel for protection. Quick-release side panels simplify installation and ongoing maintenance while keeping the enclosure rigid.

Bundled Shelf, Hardware and Locks

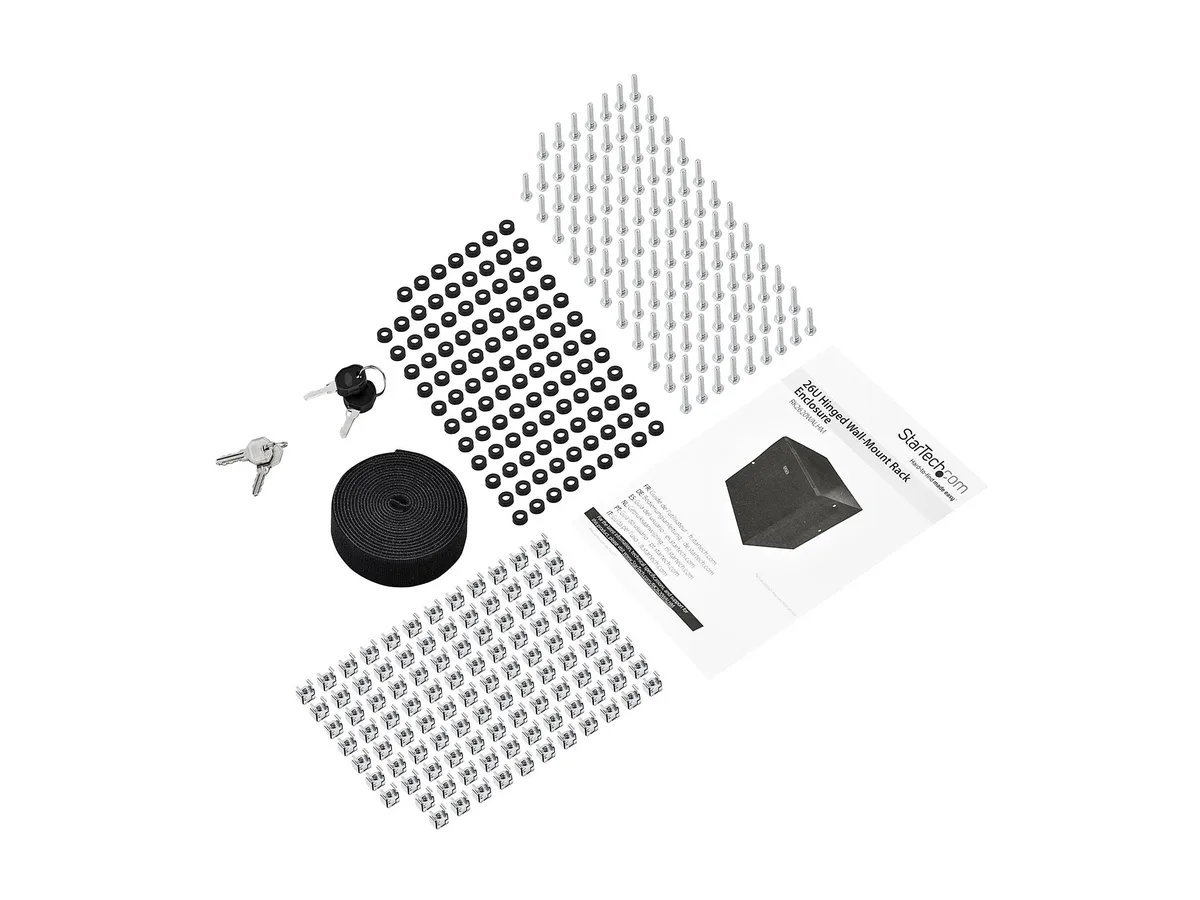

A 1U shelf provides a stable surface for non-rack-mount devices or tools. The package includes 104 cage nuts and 104 screws for 12-24 tapped or square-hole rails, a roll of hook-and-loop fastener for cable management, and separate keys for the front door and side panels. An instruction manual guides the flat-pack assembly and the 180-degree hinge reversal.

Highlights

  • Wall-mount design saves valuable floor space in tight areas
  • 26U capacity with adjustable 3 to 20 inch mounting depth fits diverse equipment
  • 200 lb weight rating on 4-post frame supports heavy servers securely
  • Hinged rear door swings 180° for full rear access to cabling
  • Locking mesh front door and solid steel sides protect mission-critical hardware

Specifications

BrandStarTech.com
ModelRK2620WALHM
TypeWall Mount Cabinet
Rack Units26U
ColorBlack
Weight Capacity198.90 lbs.
SpecificationBack Door Construction: Solid Steel
Frame Type: Enclosed Cabinet
Front Door Construction: Steel Mesh
Front Door Key Lock: Yes
Front Door Reversible and / or Removable: Removable, Reversible
Rack Type: 4-Post
Style: Wall-Mount
Wallmountable: Yes
Enclosure Type: Steel
External Depth: 21.7 in [55 cm]
External Height: 49.6 in [125.9 cm]
External Width: 23.6 in [60 cm]
Internal Depth: 20.9 in [53 cm]
Internal Height: 45.7 in [116 cm]
Internal Width: 17.7 in [45 cm]
Maximum Mounting Depth: 16.1 in [41 cm]
Minimum Mounting Depth: 2.4 in [6 cm]
FeaturesSave space by wall-mounting your servers or networking equipment
Hassle-free access with a hinged cabinet
Secure your mission-critical equipment with a locked enclosure
Easily install your equipment with adjustable mounting rails
Maximize compatibility by switching the mounting rails between square cage nut holes or tapped 12-24 holes
1U shelf and hook-and-loop cable tie included
Included Accessory1 x wall-mount enclosure
1 x 1U shelf
1 x roll of hook-and-loop fastener
104 x 12-24 cage nuts
104 x 12-24 screws
2 x door keys
2 x side panel keys
1 x instruction manual
Unit Dimension49.60" x 23.60" x 21.70"
Shipping Weight165.80 lbs.
Shipping weight75.30 kg
Package size1402 × 650 × 599 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I mount the RK2620WALHM to the wall, and what step do installers often miss?

Use the included hardware to secure the cabinet to structural studs or concrete; the step often missed is verifying the adjustable mounting depth is set between 3 and 20 inches before tightening the lag bolts.

What maintenance will this rack need over time, and which parts might need replacement?

Periodically check that the 104 cage nuts and screws remain tight, lubricate the rear door hinges, and replace the two door keys or side-panel keys if they are lost.

What is the first limit reached when the RK2620WALHM is fully loaded and running continuously?

The 200 lb (90 kg) total weight capacity is the first hard limit; exceeding it risks structural failure regardless of the 26U vertical space available.
