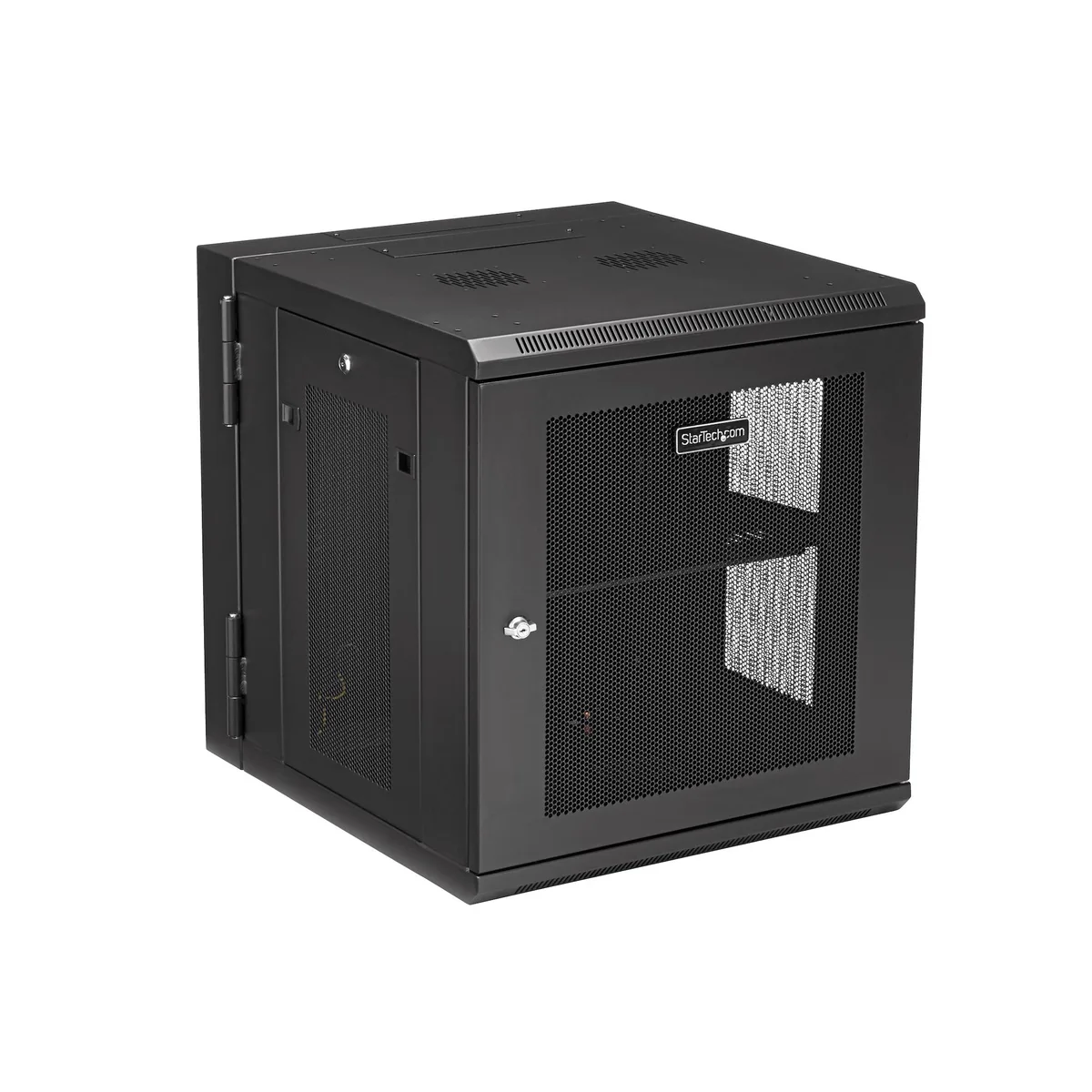

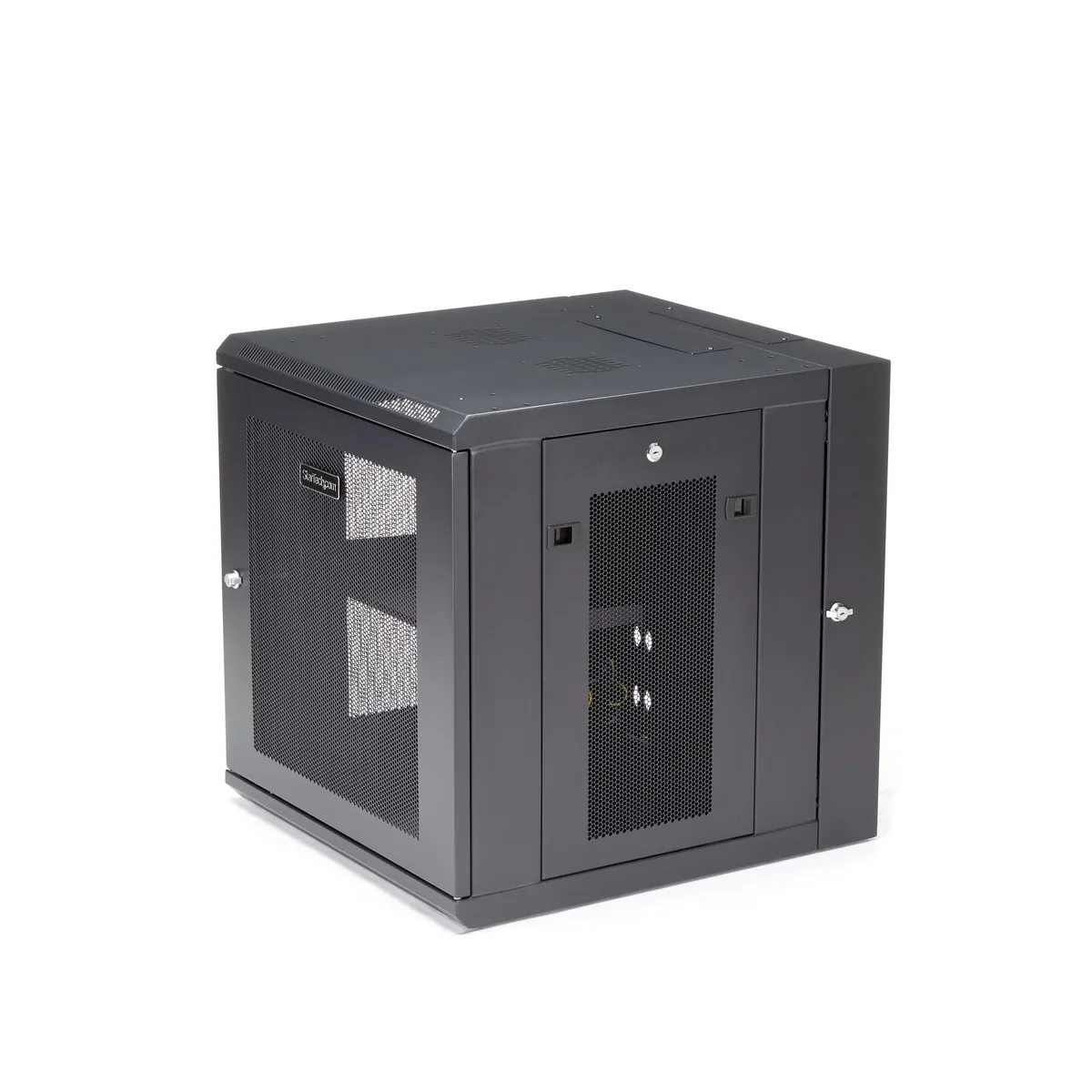

Black 12U four-post wall-mount server rack with mesh front door and 1U shelf

STARTECH

STARTECH RK1224WALHM 12U 4-Post Wall Mount Server Rack

SKU CH-205A-3VS4T MPN RK1224WALHM

Wall-mount 4-post 12U rack cabinet holds 19-inch servers and networking gear, includes a 1U shelf and locking front mesh door, supports 198.90 lbs

  • TypeWall Mount Cabinet
  • Rack Units12U
  • ColorBlack
  • Weight Capacity198.90 lbs.
  • SpecificationBack Door Construction: Solid Steel Frame Type: Enclosed Cab
  • FeaturesSave space by wall-mounting your servers or networking equip

Style 12U - 24" Deep

  • Saves floor space with 12U wall-mount design
  • Hinged cabinet swings open for easy equipment access
  • Adjustable 19-inch rails fit diverse rack-mount hardware
  • Locking front and side panels protect installed devices
  • Includes 1U shelf plus 48 cage nuts and screws

Space-saving 12U wall mount rack

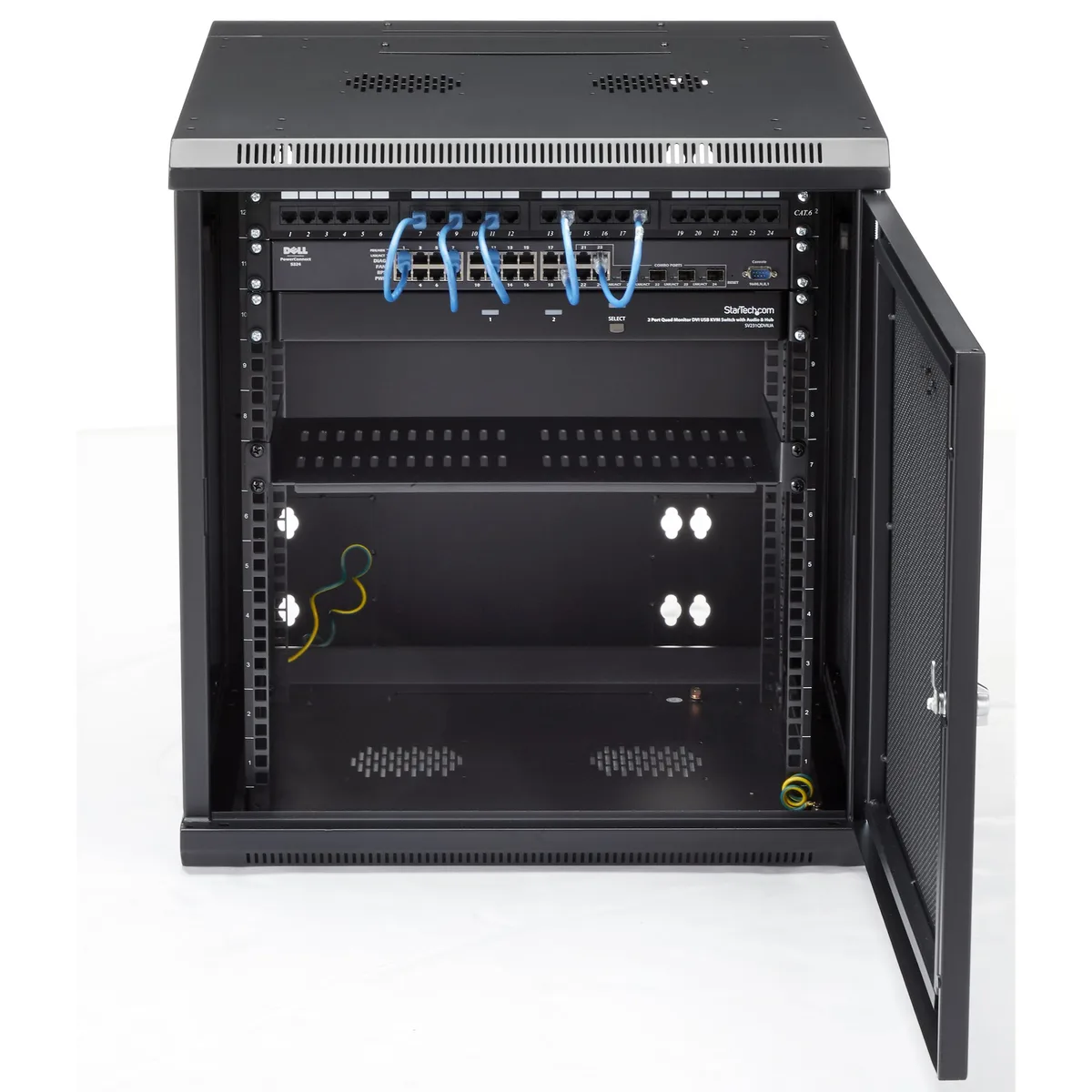

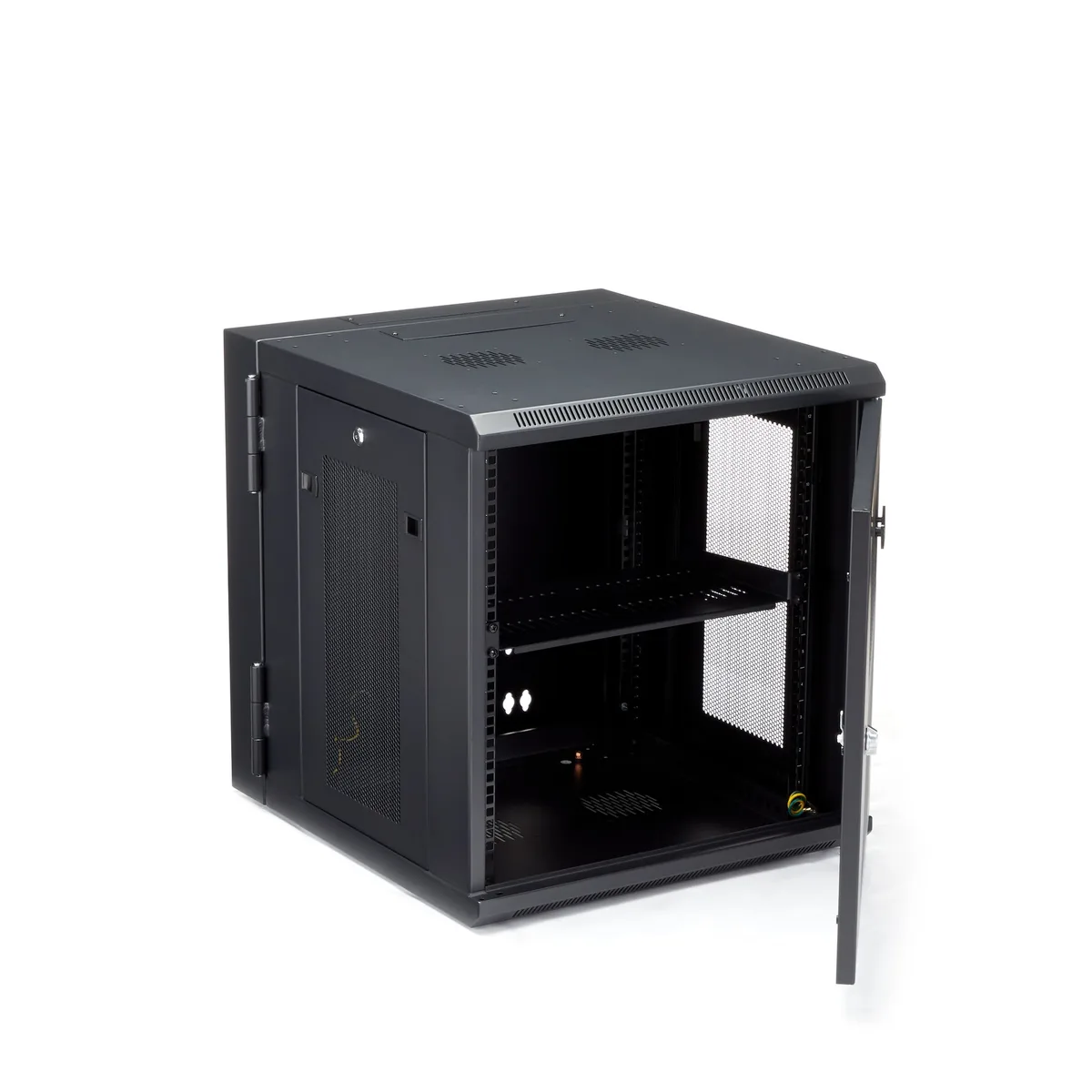

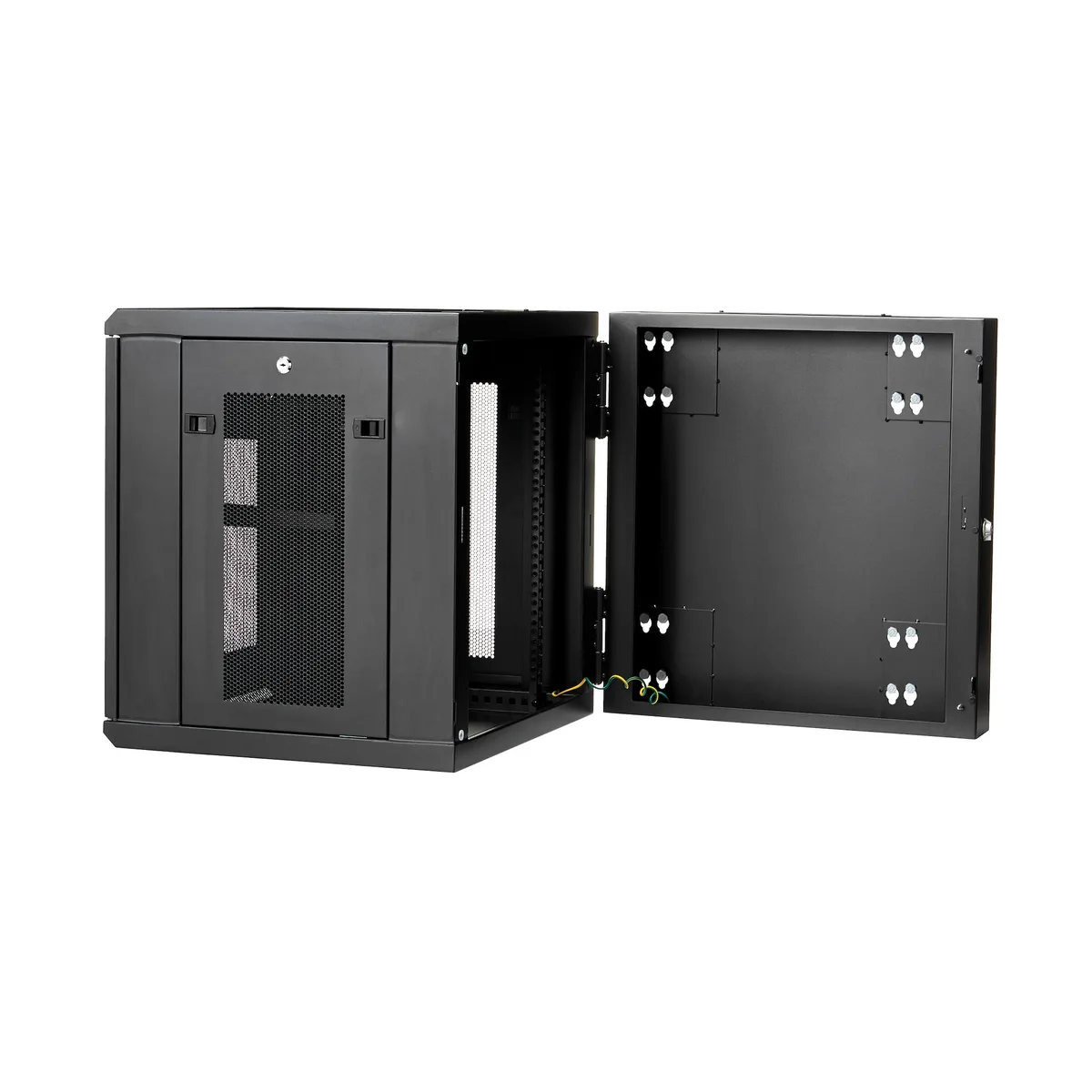

This 12U four-post cabinet mounts directly to the wall, freeing up floor space for servers, networking gear or AV equipment. The hinged frame swings open for straightforward access to installed devices. A 1U shelf is included for non-rackmount units.

Steel construction with mesh ventilation

The front door uses steel mesh to promote airflow while the back and side panels are solid steel. A key lock on the front door secures the enclosure. Adjustable 19-inch mounting rails let you set equipment depth without tools.

Hardware kit simplifies installation

Forty-eight 12-24 cage nuts and matching screws are supplied so you can populate the rails immediately. A roll of hook-and-loop fastener helps manage cables neatly. Two door keys and two side-panel keys are provided for physical security.

Highlights

  • Saves floor space with 12U wall-mount design
  • Hinged cabinet swings open for easy equipment access
  • Adjustable 19-inch rails fit diverse rack-mount hardware
  • Locking front and side panels protect installed devices
  • Includes 1U shelf plus 48 cage nuts and screws

Specifications

BrandStarTech.com
ModelRK1224WALHM
TypeWall Mount Cabinet
Rack Units12U
ColorBlack
Weight Capacity198.90 lbs.
SpecificationBack Door Construction: Solid Steel
Frame Type: Enclosed Cabinet
Front Door Construction: Steel Mesh
Front Door Key Lock: Yes
Front Door Reversible and / or Removable: No
Rack Type: 4-Post
Side Panel Construction: Steel Mesh
Side Panels Reversible and / or Removable: Removable, Reversible
Style: Wall-Mount
Wall mountable: Yes
Enclosure Type: Steel
External Depth: 25.6 in [65 cm]
External Height: 25.1 in [63.7 cm]
External Width: 23.6 in [60 cm]
Internal Depth: 24.8 in [63 cm]
Internal Height: 21.3 in [54 cm]
Internal Width: 17.7 in [45 cm]
Maximum Mounting Depth: 24 in [61 cm]
Minimu
FeaturesSave space by wall-mounting your servers or networking equipment
Hassle-free access with a hinged cabinet
Easily install your equipment with adjustable mounting rails
Secure your mission-critical equipment with a locked enclosure
Maximize compatibility by switching the mounting rails between square cage nut holes or tapped 12-24 holes
1U shelf and hook-and-loop cable tie included
Included Accessory1 x wall-mount enclosure
1 x 1U shelf
1 x roll of hook-and-loop fastener
48 x 12-24 cage nuts
48 x 12-24 screws
2 x door keys
2 x side panel keys
1 x instruction manual
Unit Dimension25.10" x 23.60" x 25.60"
Shipping Weight68.50 lbs.
Shipping weight30.84 kg
Package size711 × 711 × 660 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the RK1224WALHM on the wall and what step is most often missed?

Mount the 4-post frame to wall studs using appropriate lag bolts, then hang the hinged enclosure; the step most often missed is verifying the wall can support the 198.90 lb weight capacity before drilling.

What maintenance or replacement will the RK1224WALHM need over time?

The front door mesh and solid steel back door may collect dust; clean them periodically and check the key lock and 12-24 cage nuts for tightness after equipment changes.

What limit appears first when the RK1224WALHM is fully loaded and running continuously?

The 198.90 lb weight capacity is the first hard limit; exceeding it risks wall-mount failure before any thermal or space constraint is reached.
