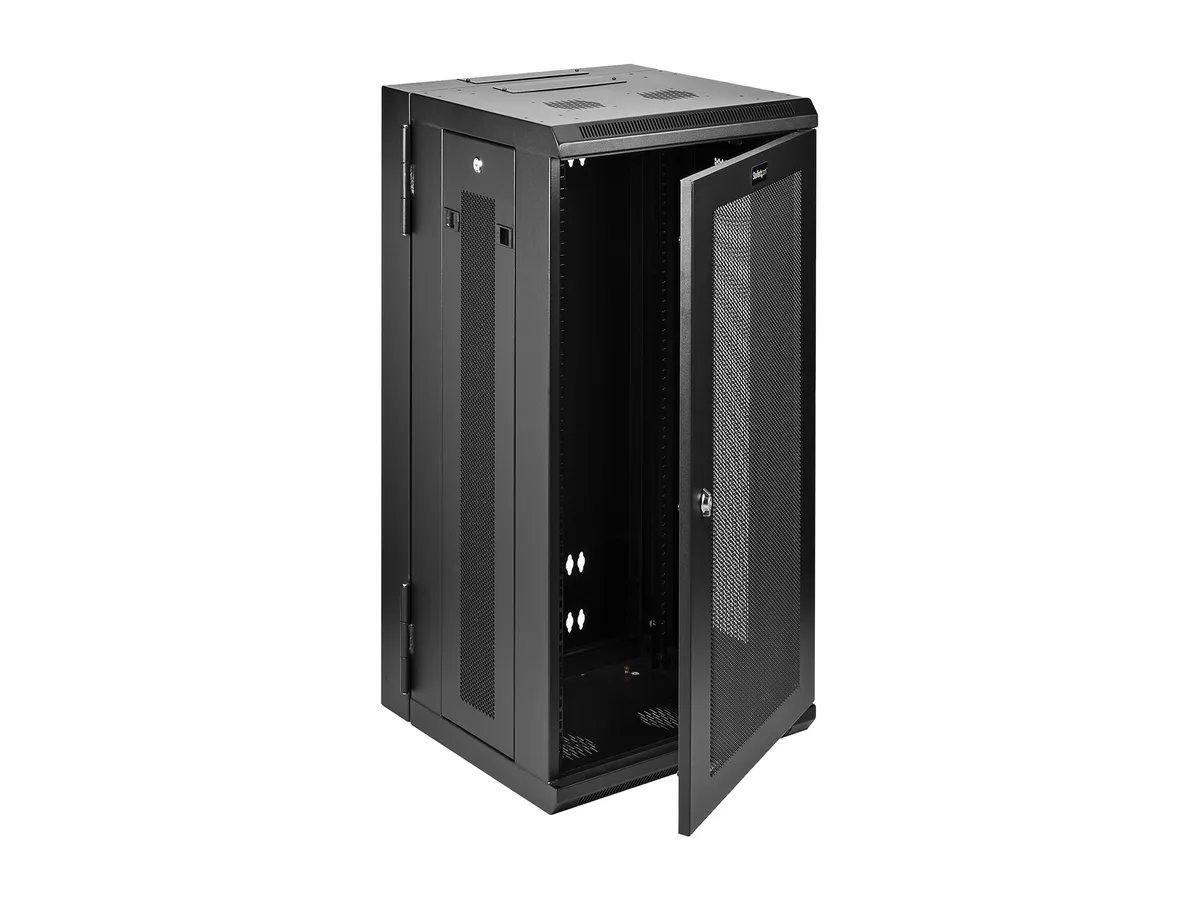

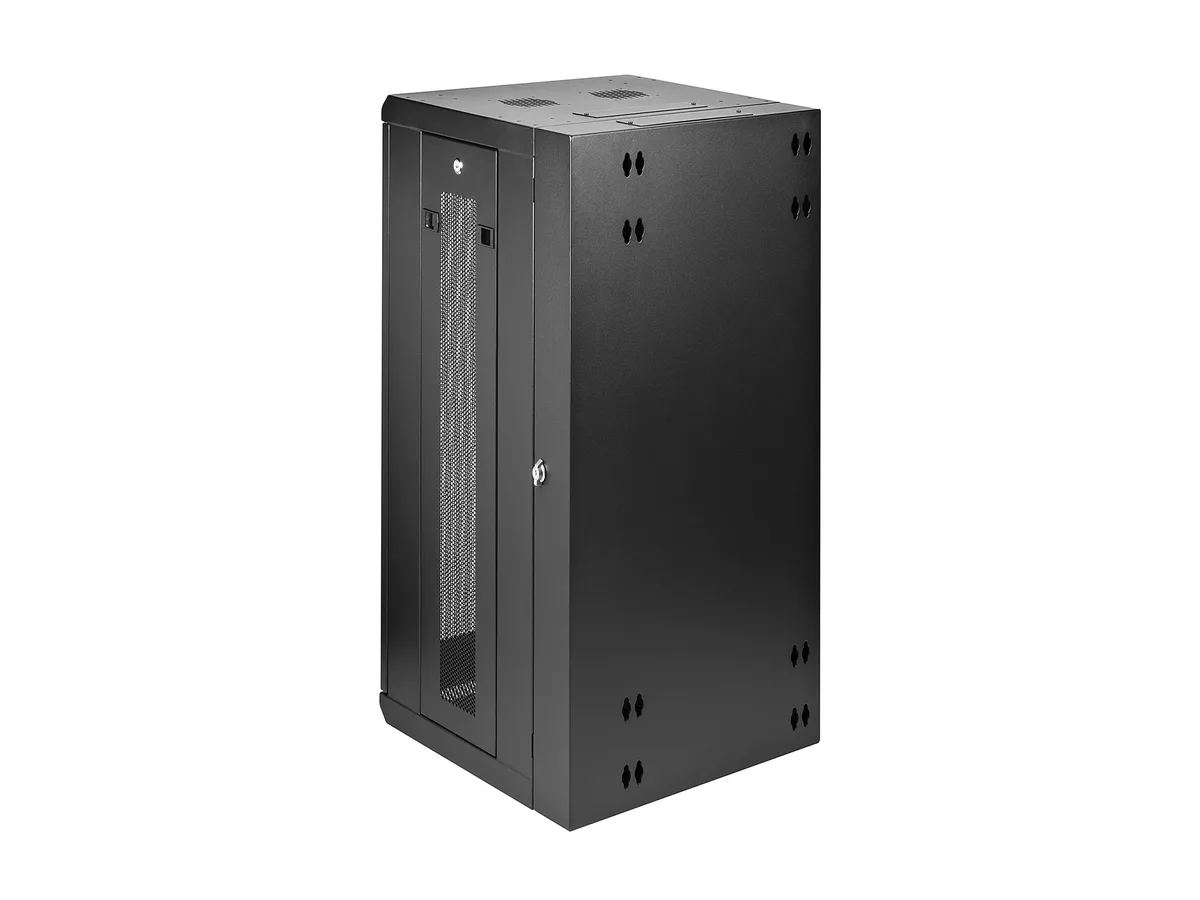

Black 18U wall-mount server rack cabinet with hinged rear door and mesh front door

STARTECH

STARTECH RK1820WALHM 18U Wall Mount Server Rack 20" Deep

SKU CH-4P5A-93ASV MPN RK1820WALHM

An 18U enclosed wall-mount rack with a hinged rear door, adjustable 2.4 to 20 inch depth, 4-post mounting and a 200 lb load capacity

  • TypeRack Mount Cabinet
  • Rack Units18U
  • ColorBlack
  • Weight Capacity151.80 lbs.
  • SpecificationBack Door Construction: Solid Steel Frame Type: Enclosed Cab
  • FeaturesSave space by wall-mounting your servers or networking equip

Style 18U - 20" Deep

  • Wall-mount design frees up to 18U of floor space

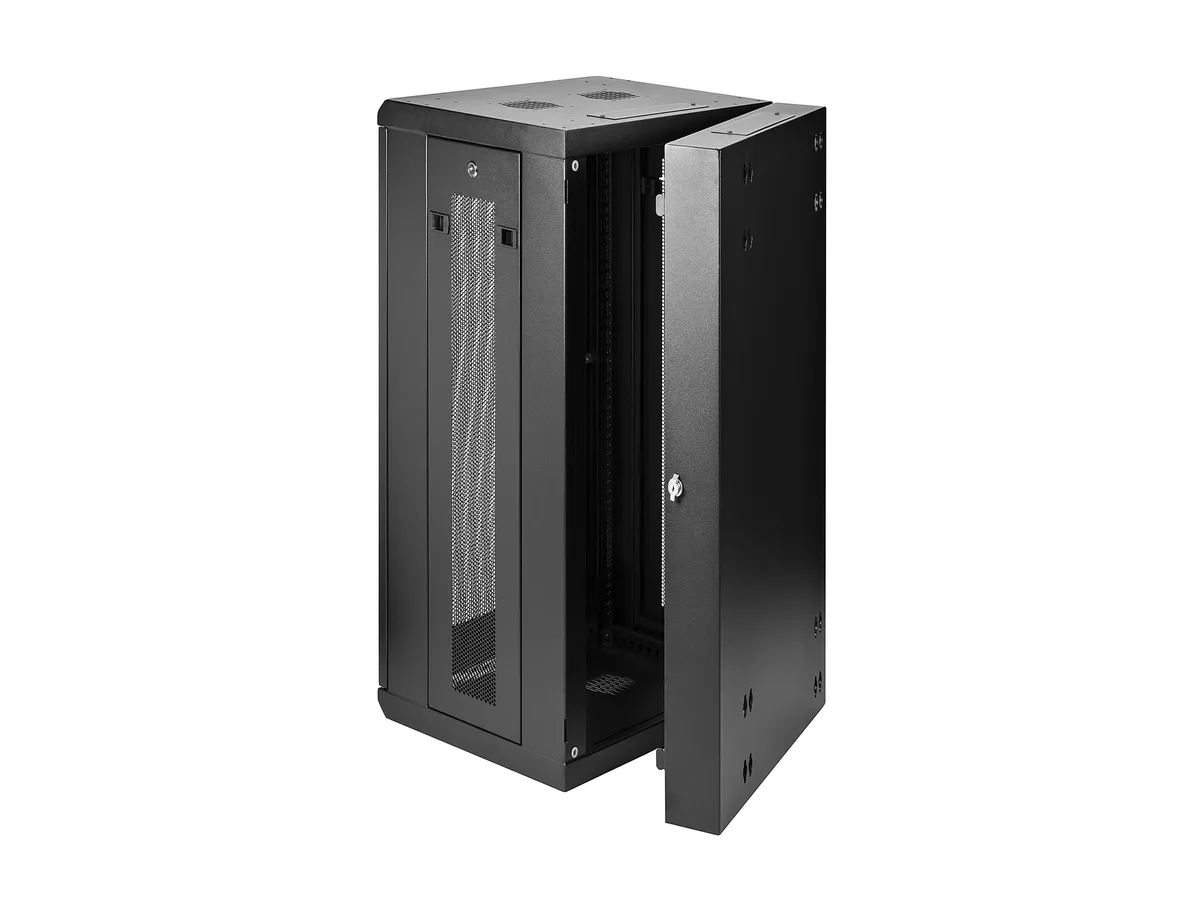

  • Hinged rear enclosure swings 180° for full rear access
  • Locking front mesh door secures mission-critical gear

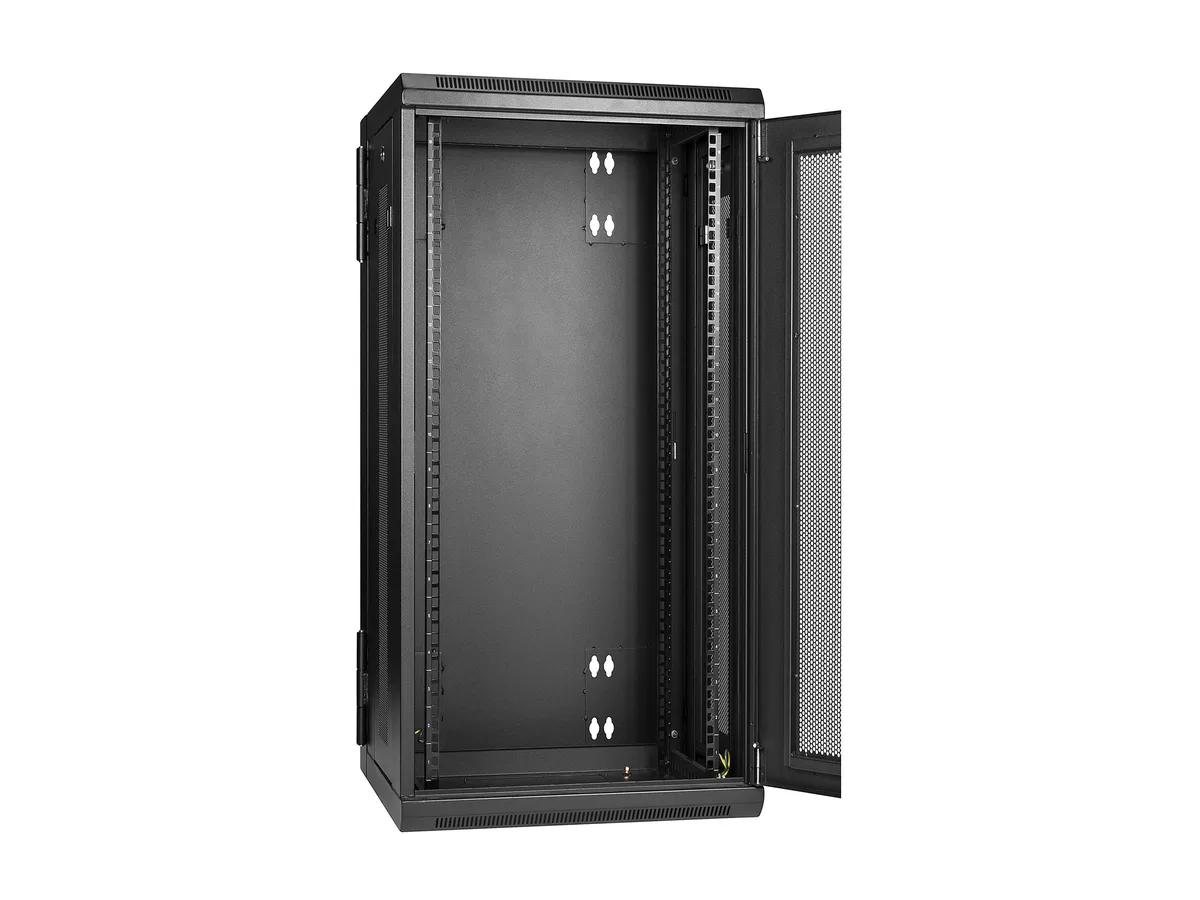

  • Adjustable 4-post depth from 2.4 to 20 inches fits varied hardware
  • Supports 200 lb total load for dense deployments

18U Wall-Mount Server Cabinet

This 18U enclosed cabinet mounts EIA-310 compliant servers and networking gear to a wall. A hinged rear section swings 180 degrees for full rear access. Adjustable mounting depth ranges from 2.4 to 20 inches. Four-post construction supports a total load of 200 lb (90 kg). A 1U shelf is included for non-rack devices.

Ideal for space-constrained offices.

Suits installers who need secure, lockable storage without using floor space. The mesh front door and solid steel rear door provide airflow and physical security. Not for deployments requiring deeper than 20 inches, higher than 200 lb total capacity, or open-frame airflow across the full chassis depth.

Verify wall structure and clearances before ordering

Confirm the mounting surface can bear 149.60 lb of cabinet weight plus installed equipment. Ensure at least 21.70 inches of protrusion clearance when the hinge is fully open. Check that 12-24 cage nuts (72 included) match your equipment rails. Allow room for reversible front door swing direction.

Highlights

  • Wall-mount design frees up to 18U of floor space
  • Hinged rear enclosure swings 180° for full rear access
  • Locking front mesh door secures mission-critical gear
  • Adjustable 4-post depth from 2.4 to 20 inches fits varied hardware
  • Supports 200 lb total load for dense deployments

Specifications

BrandStarTech.com
ModelRK1820WALHM
TypeRack Mount Cabinet
Rack Units18U
ColorBlack
Weight Capacity151.80 lbs.
SpecificationBack Door Construction: Solid Steel
Frame Type: Enclosed Cabinet
Front Door Construction: Steel Mesh
Front Door Key Lock: Yes
Front Door Reversible and / or Removable: Removable, Reversible
Rack Type: 4-Post
Style: Wall-Mount
Wallmountable: Yes
External Depth: 21.7 in [55 cm]
External Height: 35.6 in [90.4 cm]
External Width: 23.6 in [60 cm]
Internal Depth: 20.9 in [530 mm]
Internal Height: 31.5 in [80 cm]
Internal Width: 17.7 in [45 cm]
Maximum Mounting Depth: 16.1 in [41 cm]
Minimum Mounting Depth: 2.4 in [6 cm]
FeaturesSave space by wall-mounting your servers or networking equipment
Hassle-free access with a hinged cabinet
Secure your mission-critical equipment with a locked enclosure
Easily install your equipment with adjustable mounting rails
Maximize compatibility by switching the mounting rails between square cage nut holes or tapped 12-24 holes
1U shelf and hook-and-loop cable tie included

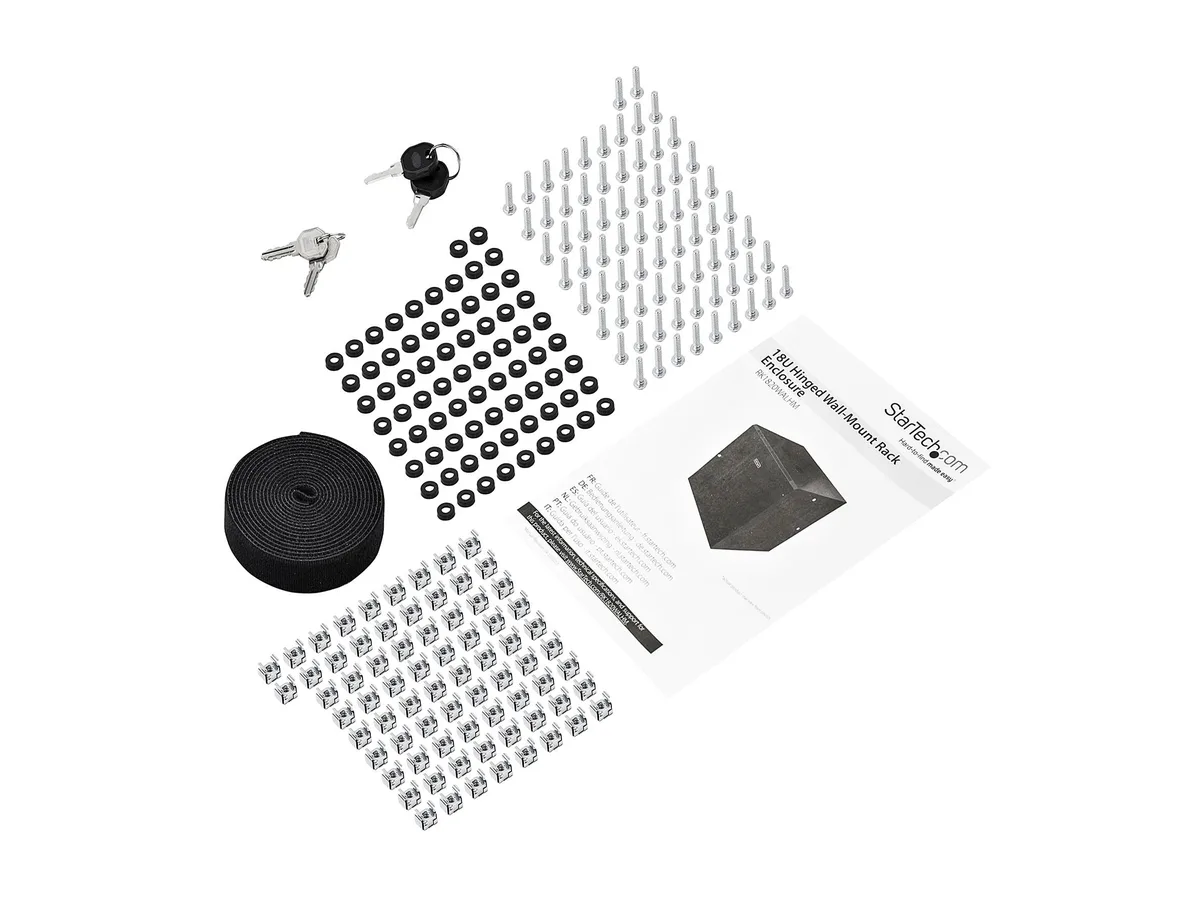

Included Accessory1 x wall-mount enclosure
1 x 1U shelf
1 x roll of hook-and-loop fastener
72 x 12-24 cage nuts
72 x 12-24 screws
2 x door keys
2 x side panel keys
1 x instruction manual
Unit Dimension35.60" x 23.60" x 21.70"
Unit Weight149.60 lbs.
Shipping Weight151.80 lbs.
Shipping weight68.95 kg
Package size1168 × 660 × 584 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What wall structure and fixings are needed to mount this 149.60 lb. cabinet?

The enclosure mounts directly to a load-bearing wall stud or concrete surface; you must supply lag bolts or anchors rated for the 149.60 lb. unit weight plus up to 200 lb. of equipment.

Can the adjustable 2.4 to 20 in. depth fit my existing 12-24 screw equipment?

Yes, the 4-post rails accept standard 12-24 cage nuts and the included 72 cage nuts and screws let you secure legacy gear at any depth within the 2.4 to 20 in. range.

How do I verify the hinged rear door swings the full 180 degrees after installation?

Unlock the rear door, pull it outward until it stops flush against the wall, and confirm the enclosure clears the side panels without binding.
