White square ceiling-mount access point with single Ethernet port and power adapter

HPE Networking Instant On

HPE Networking Instant On AP11 access point R3J21A

SKU CH-6PDE-4BEJZ MPN R3J21A

Dual-band Wi-Fi 5 access point with 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, PoE or 12 V power, plenum-rated for medical spaces

  • StandardsIEEE 802.11ac, 802.11n
  • Frequency BandDual radio for simultaneous dual-band operation. 5 GHz 802.1
  • AntennaIntegrated down-tilt omni-directional antennas with maximum
  • LAN Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3
  • Power SupplyPower over Ethernet (POE): 802.3af (class 3) or DC power (12
  • Dimensions1.3 x 6.0 x 6.0 in

WiFi Technology Wi-Fi 5

Struck-through versions exist but are not stocked here.

Model AP11

Power Source Included

  • Dual-band Wi-Fi 5 and Wi-Fi 4 for broad device support
  • 867 Mbps on 5 GHz with MU-MIMO for multi-user throughput
  • PoE or 12 V DC power with adapter included
  • Medical-grade safety certifications for sensitive environments
  • Compact plenum-rated design for flexible ceiling or wall mounting

Indoor Wave 2 Access Point

The HPE Networking Instant On AP11 R3J21A is a dual-radio indoor access point built for small businesses, medical offices and home networks that need reliable Wi-Fi 5 and Wi-Fi 4 coverage. It ships with a 12 V power adapter and supports PoE 802.3af class 3 for flexible installation.

867 Mbps 5 GHz and 300 Mbps 2.4 GHz

Simultaneous dual-band operation uses 2x2 MIMO on each radio, delivering up to 867 Mbps on 5 GHz with Multi-User MIMO and up to 300 Mbps on 2.4 GHz. The single Gigabit Ethernet uplink caps wired backhaul at 1 Gbps, so aggregate wireless throughput cannot exceed that link.

Plenum-rated, fanless design

The unit carries a UL 2043 plenum rating and meets EN 60601-1-1 and EN 60601-1-2 for medical environments. With no moving parts it runs silently, drawing power either from the included adapter or a PoE switch within the 802.3af class 3 budget.

Highlights

  • Dual-band Wi-Fi 5 and Wi-Fi 4 for broad device support
  • 867 Mbps on 5 GHz with MU-MIMO for multi-user throughput
  • PoE or 12 V DC power with adapter included
  • Medical-grade safety certifications for sensitive environments
  • Compact plenum-rated design for flexible ceiling or wall mounting

Specifications

BrandHPE Networking Instant On
SeriesHPE Networking Instant On Access Points
ModelR3J21A
StandardsIEEE 802.11ac, 802.11n
Frequency BandDual radio for simultaneous dual-band operation.
5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5).
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4).
AntennaIntegrated down-tilt omni-directional antennas with maximum individual antenna gain of 3.3dBi in 2.4GHz and 5.8dBi in 5GHz
LAN Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)

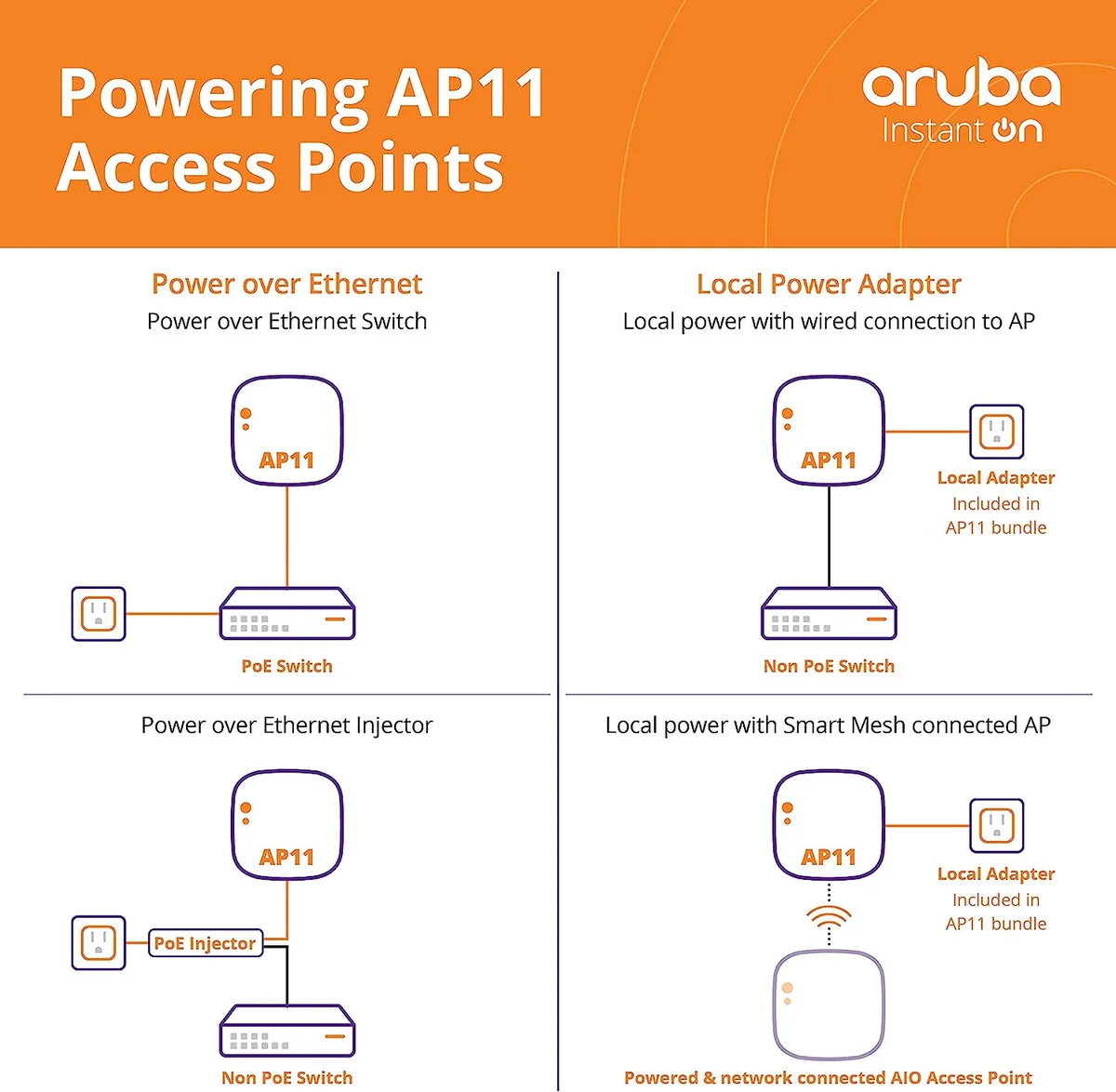

Power SupplyPower over Ethernet (POE): 802.3af (class 3) or DC power (12V). Power adapter included.
Dimensions1.3 x 6.0 x 6.0 in
Weight0.4 lb
FeaturesUL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)
Shipping weight1.36 kg
Package size305 × 229 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the AP11's Gigabit Ethernet uplink negotiate correctly with my existing 802.3af PoE switch?

Yes, the single uplink port supports 802.3af PoE-in (class 3) and will auto-negotiate link speed with any standard Ethernet switch.

How can I confirm the AP11 is broadcasting both 2.4 GHz and 5 GHz radios after installation?

Open the Aruba Instant On mobile app; the dashboard shows each radio's status, channel, and connected client count in real time.

Does the R3J21A bundle include the 12 V DC power adapter, or must I order it separately?

The R3J21A is the power-bundle SKU and ships with the 12 V DC adapter in the box; the R2W95A variant is the one sold without it.
