White rectangular outdoor access point with two omni-directional antennas

HPE Networking Instant On

HPE Networking Instant On R2X10A AP17 outdoor access point

SKU CH-K9PA-Q0D4M MPN R2X10A

Outdoor Wi-Fi 5 access point with dual-band 2x2 MIMO, PoE-powered, built for harsh weather

  • StandardsIEEE 802.11ac, 802.11n
  • Frequency BandDual Radio for simultaneous dual-band operation 5 GHz 802.11
  • AntennaTwo dual-band omni- directional antennas (4.7 dBi gain at 2.
  • LAN Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3
  • Power SupplyPower over Ethernet (PoE): 802.3af power consumption 13.5W m
  • Dimensions7.4 x 6.1 x 2.6 in

WiFi Technology Wi-Fi 5

Struck-through versions exist but are not stocked here.

Model AP17

Power Source Not Included

  • Outdoor-ready design withstands temperature extremes, rain and wind
  • Dual-band 2.4 GHz and 5 GHz radios deliver combined speeds up to 2 Gbps
  • 11ac Wave 2 with 160 MHz channels and MU-MIMO for high-density environments
  • PoE-powered via single Gigabit uplink port, no separate adapter required
  • Instant On cloud management configures clusters in minutes with automatic failover

Outdoor Wi-Fi 5 access point for harsh environments

The HPE Networking Instant On R2X10A AP17 is a dual-radio outdoor wireless access point built to withstand temperature extremes, rain and high winds. It delivers simultaneous 2.4 GHz and 5 GHz coverage for open-air venues such as café patios, loading docks or poolside areas. The unit supports IEEE 802.11ac Wave 2 with 2x2 MIMO on each band for combined throughput up to 2 Gbps. Management is handled through a simple web GUI and template-based clustering for rapid deployment.

Verify PoE infrastructure

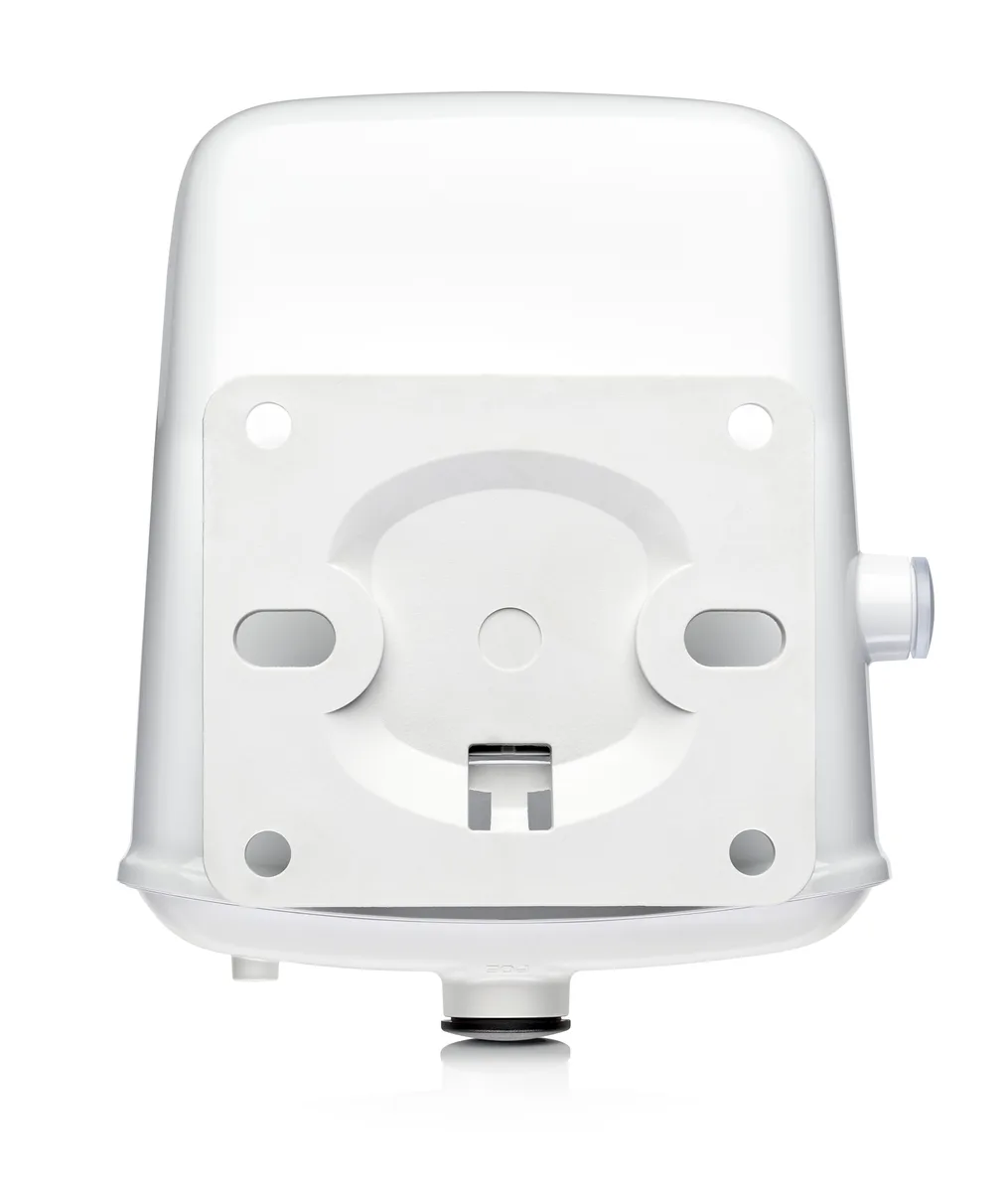

This model requires an 802.3af Power over Ethernet source capable of supplying up to 13.5 W; no separate power adapter is included in the box. Confirm that your switch or mid-span injector provides PoE-in on the single Gigabit Ethernet uplink port. Ensure you have a suitable pole or wall mount and that the 7.4 x 6.1 x 2.6 in form factor fits the intended location. The product is not suited for indoor-only installations or networks lacking PoE infrastructure.

Passive thermal design with 13.5 W maximum draw

The access point operates without fans, relying on its ruggedised enclosure to dissipate heat across the specified outdoor temperature range. Maximum power consumption is 13.5 W under 802.3af PoE, so thermal output remains low and silent in normal use. Dual omni-directional antennas provide 4.7 dBi gain at 2.4 GHz and 4.2 dBi at 5 GHz without active cooling components. The sealed IP-rated chassis prevents dust and moisture ingress while maintaining stable operating temperatures.

Highlights

  • Outdoor-ready design withstands temperature extremes, rain and wind
  • Dual-band 2.4 GHz and 5 GHz radios deliver combined speeds up to 2 Gbps
  • 11ac Wave 2 with 160 MHz channels and MU-MIMO for high-density environments
  • PoE-powered via single Gigabit uplink port, no separate adapter required
  • Instant On cloud management configures clusters in minutes with automatic failover

Specifications

BrandHPE Networking Instant On
SeriesHPE Networking Instant On Access Points
ModelR2X10A
StandardsIEEE 802.11ac, 802.11n
Frequency BandDual Radio for simultaneous dual-band operation
5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
AntennaTwo dual-band omni- directional antennas (4.7 dBi gain at 2.4 GHz, 4.2 dBi gain at 5 GHz)
LAN Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
Power SupplyPower over Ethernet (PoE): 802.3af power consumption 13.5W max
Dimensions7.4 x 6.1 x 2.6 in
Weight1.4 lb
FeaturesWPA2 ,WPA3 ,Enhanced Open (OWE)
Wi-Fi Alliance certified (WFA) 802.11ac Wave 2 (Wi-Fi5)
Shipping weight0.98 kg
Package size249 × 180 × 99 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the AP17 outdoor access point come with a power adapter or do I need to supply PoE?

The box contains the AP17 unit and mounting hardware; a power adapter is not included so you must provide 802.3af PoE delivering up to 13.5W.

Should I choose the 2.4 GHz radio or the 5 GHz radio for the best throughput?

Both radios operate simultaneously — the 5 GHz radio reaches 867 Mbps with 2x2 MIMO while the 2.4 GHz radio provides 300 Mbps, giving combined dual-band coverage.

What does the 867 Mbps figure mean when the AP17 is mounted outside?

That is the maximum 5 GHz 802.11ac 2x2 MIMO link rate; real-world throughput will be lower and depends on client capability, channel width up to 160 MHz, and outdoor interference.
