White square ceiling-mount wireless access point with rounded edges, low profile, smooth matte finish, subtle HPE branding

HPE Networking Instant On

HPE Networking Instant On AP22 access point R6M49A#ABA

SKU CH-7A33-NN34J MPN R6M49A#ABA

Dual-band Wi-Fi 6 access point with PoE power, integrated antennas, and support for up to 75 clients

  • Frequency BandDual Radio for simultaneous dual-band operation 5 GHz 802.11
  • StandardsIEEE 802.11ax
  • AntennaIntegrated down-tilt omni-directional antennas for 2x2 MIMO
  • LAN Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3
  • Power SupplyPower over Ethernet (POE): 802.3af (class 3) DC power (12V)
  • Dimensions1.5 x 6.3 x 6.3 in

WiFi Technology Wi-Fi 6

Struck-through versions exist but are not stocked here.

Model AP22

Power Source Included

  • Wi-Fi 6 efficiency for up to 1.2 Gbps on 5 GHz
  • Connect up to 75 clients on a single access point
  • WPA2 and WPA3 security with Enhanced Open guest access
  • PoE-powered or 12 V DC with no extra adapter needed
  • Medical-grade EN 60601 certification for healthcare deployments

HPE Instant On AP22 access point

The HPE Networking Instant On AP22 is a dual-radio Wi-Fi 6 access point built for small-business environments that need simultaneous 2.4 GHz and 5 GHz coverage. It supports up to 75 associated clients and includes WPA2/WPA3 with Enhanced Open for separate employee and guest networks. Medical-grade certifications EN 60601-1-1 and EN 60601-1-2 allow deployment in healthcare settings. The bundle ships with a power supply for US outlets.

Installation and common issues

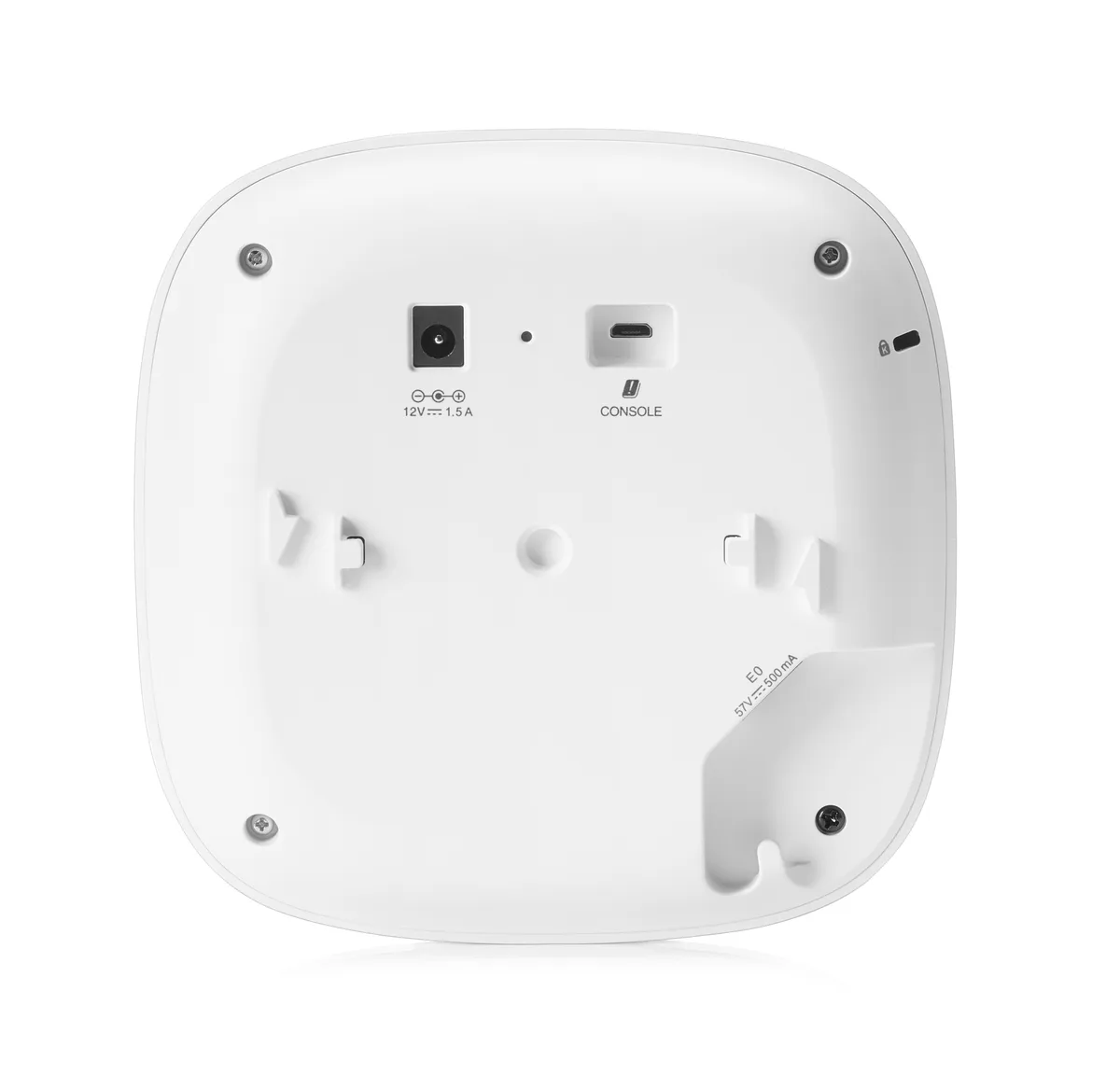

The unit mounts on a wall or ceiling and receives power through its single Gigabit Ethernet uplink via 802.3af PoE or the included 12 V DC adapter. Integrated down-tilt omni-directional antennas mean no external antenna alignment is required. A frequent issue is connecting the uplink to a switch port that does not supply PoE, leaving the AP without power when the DC adapter is not used. Ensure the switch supports 802.3af class 3 or plug in the supplied supply.

Capacity and headroom

The 5 GHz radio delivers up to 1.2 Gbps with 2x2 MIMO and the 2.4 GHz radio up to 574 Mbps, both on 802.11ax. Peak antenna gain is 5.6 dBi at 5 GHz and 4.3 dBi at 2.4 GHz. The 75-client association limit and single Gigabit uplink become bottlenecks in high-density or high-throughput scenarios such as large conference rooms or backup-heavy workloads. For those needs, additional access points or models with multi-gigabit uplinks are required.

Highlights

  • Wi-Fi 6 efficiency for up to 1.2 Gbps on 5 GHz
  • Connect up to 75 clients on a single access point
  • WPA2 and WPA3 security with Enhanced Open guest access
  • PoE-powered or 12 V DC with no extra adapter needed
  • Medical-grade EN 60601 certification for healthcare deployments

Specifications

Frequency BandDual Radio for simultaneous dual-band operation
5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
StandardsIEEE 802.11ax
AntennaIntegrated down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
LAN Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
Power SupplyPower over Ethernet (POE): 802.3af (class 3)
DC power (12V)
BrandHPE Networking Instant On
SeriesHPE Networking Instant On Access Points
ModelR6M49A
Dimensions1.5 x 6.3 x 6.3 in
Weight1.1 lb
FeaturesEN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Shipping weight1.36 kg
Package size229 × 229 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the AP22 is operating on Wi‑Fi 6 after setup?

Check the management app or web UI for a 5 GHz link rate near 1.2 Gbps and a 2.4 GHz rate near 574 Mbps; those speeds indicate 802.11ax operation.

Does the R6M49A#ABA bundle include a PoE injector or must I buy one separately?

The bundle ships with a power supply unit; the AP also accepts 802.3af PoE from a compatible switch or injector if you prefer not to use the included adapter.

Which AP22 model supports up to 75 associated clients and medical‑environment certifications?

The R6M49A#ABA meets EN 60601‑1‑1 and EN 60601‑1‑2 for healthcare deployments and is rated for 75 concurrent clients.
