White rectangular desktop and wall-mount access point with integrated antennas and four Gigabit Ethernet ports on the underside

HPE Networking Instant On

HPE Networking Instant On R2X15A access point

SKU CH-QQJC-TA5DK MPN R2X15A

Dual-band Wi-Fi 5 access point with four Gigabit Ethernet ports, PoE in and out, integrated directional antennas and plenum-rated housing for desk or wall mounting

  • StandardsIEEE 802.11ac, 802.11n
  • Frequency BandDual Radio for simultaneous dual-band operation 5 GHz 802.11
  • AntennaIntegrated directional antennas with maximum individual ante
  • LAN Ports(1) uplink Gigabit Ethernet port (E0), with POE-in support (
  • Power SupplyPower over Ethernet (POE) on E0: 802.3af (class 3) or 802.3a
  • Dimensions5.9 x 3.4 x 1.6 in

WiFi Technology Wi-Fi 5

Struck-through versions exist but are not stocked here.

Model AP11D

Power Source Not Included

  • Simplified setup via web GUI and templates gets the network running in minutes
  • Dual-radio 802.11ac Wave 2 delivers up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
  • Four Gigabit Ethernet ports with PoE-in on uplink and PoE-out on one downlink power devices without extra adapters
  • UL 2043 plenum rating plus EN 60601-1-1 and EN 60601-1-2 certifications suit healthcare and ceiling installations
  • Automatic configuration sync across clustered APs and seamless failover keep Wi-Fi always on

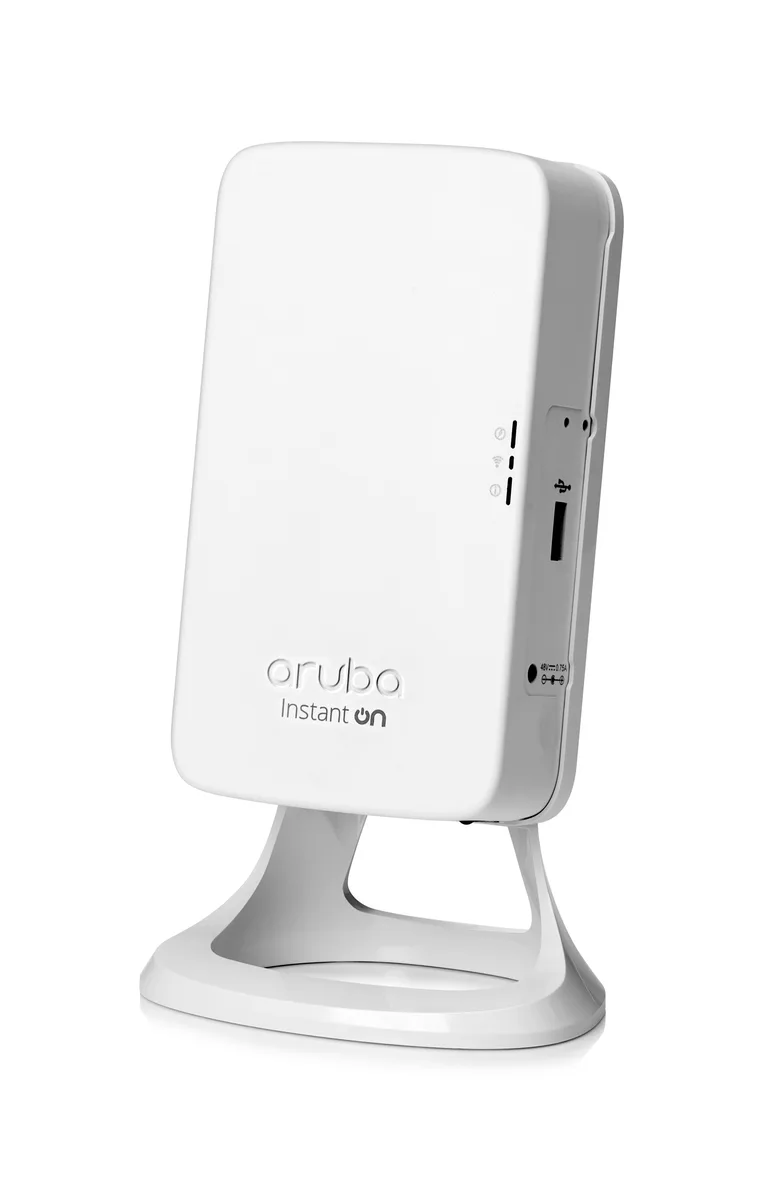

Desk and wall access point for small venues

The HPE Networking Instant On R2X15A is a dual-radio wireless access point built for desktop or wall mounting in boutique hotels, medical offices and collaboration spaces. It supports simultaneous 5 GHz and 2.4 GHz operation with integrated directional antennas. Power is supplied through PoE on the uplink port and a separate 48 V DC option, with no adapter included in the box.

Passive cooling and PoE power budget

The unit has no fans, so it runs silently in noise-sensitive areas such as patient rooms or meeting spaces. The uplink port accepts 802.3af or 802.3at PoE, drawing class 3 or class 4 power respectively. When powered by 802.3af, the PoE-out function on downlink port E3 is automatically disabled. A 48 V DC source removes that restriction.

Medical-grade rating and cloud management

UL 2043 plenum rating and EN 60601-1-1 and EN 60601-1-2 compliance allow installation in healthcare environments. The Instant On web GUI and template system let administrators deploy multiple access points in minutes, with configuration changes pushed automatically across a cluster and a secondary unit taking over if the primary fails.

Highlights

  • Simplified setup via web GUI and templates gets the network running in minutes
  • Dual-radio 802.11ac Wave 2 delivers up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
  • Four Gigabit Ethernet ports with PoE-in on uplink and PoE-out on one downlink power devices without extra adapters
  • UL 2043 plenum rating plus EN 60601-1-1 and EN 60601-1-2 certifications suit healthcare and ceiling installations
  • Automatic configuration sync across clustered APs and seamless failover keep Wi-Fi always on

Specifications

BrandHPE Networking Instant On
SeriesHPE Networking Instant On Access Points
ModelR2X15A
StandardsIEEE 802.11ac, 802.11n
Frequency BandDual Radio for simultaneous dual-band operation
5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
AntennaIntegrated directional antennas with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.2dBi in 5GHz.
LAN Ports(1) uplink Gigabit Ethernet port (E0), with POE-in support (802.3at/802.3af)
(3) downlink Gigabit Ethernet ports (E1-E3), with POE-out on E3 (802.3af)
Power SupplyPower over Ethernet (POE) on E0: 802.3af (class 3) or 802.3at (class 4). When using 802.3af, POE-out on E3 is disabled
DC power (48V): no restrictions
Power sources are sold separately.
Dimensions5.9 x 3.4 x 1.6 in
Weight0.7 lb
FeaturesUL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)
Shipping weight0.91 kg
Package size218 × 127 × 122 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I mount the AP11D and which PoE class must the uplink port negotiate?

Mount it on a desk or wall, connect the E0 uplink to a switch that provides 802.3af class 3 or 802.3at class 4 PoE; if only 802.3af is available the E3 downlink PoE-out stays disabled.

What ongoing upkeep does the R2X15A require after installation?

No user-serviceable parts exist; firmware updates are pushed automatically through the Instant On cloud portal, and the integrated directional antennas need no cleaning or adjustment.

At what sustained throughput does the 5 GHz radio hit its ceiling first?

The 5 GHz 2x2 MIMO radio tops out at 867 Mbps, so heavy 4K streaming or large file transfers will saturate that band before the 2.4 GHz 300 Mbps limit is reached.
