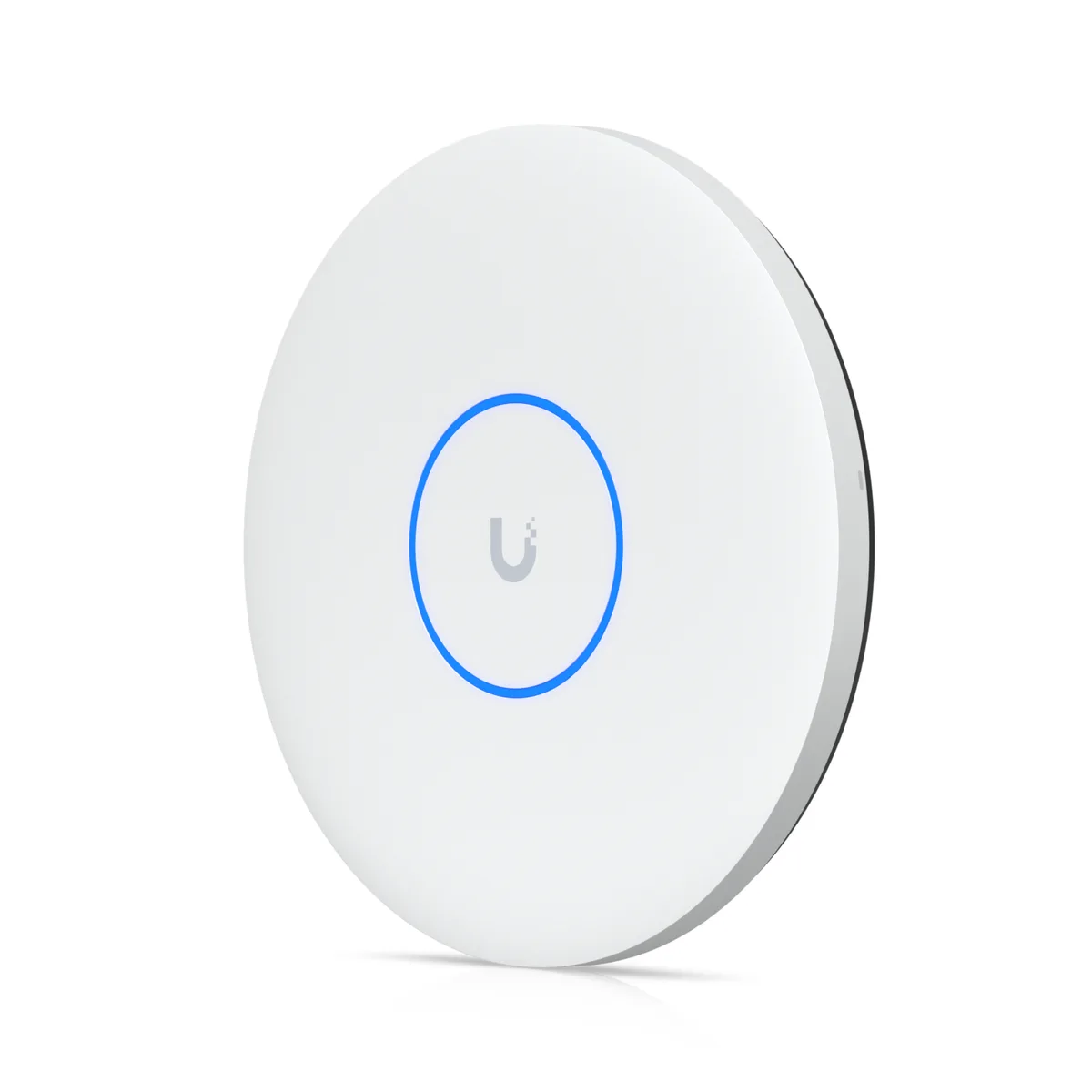

White circular ceiling-mounted access point, flat low-profile design with smooth matte finish

Ubiquiti Networks

Ubiquiti Networks U7-PRO-XGS-US 8-stream WiFi 7 access point

SKU CH-7X0H-BKRD0 MPN U7-PRO-XGS-US

Ceiling-mounted WiFi 7 access point with eight spatial streams, dedicated spectral scanning radio and 10 GbE uplink covering 160 m² for 500+ devices

Options U7 Pro XGS

Show 1 more configurations
  • Handles 500+ devices with 8-stream WiFi 7 capacity
  • Covers 160 m² using tri-band 2.4/5/6 GHz radios
  • Detects interference via dedicated spectral scanning radio
  • Connects at 10 GbE uplink with multi-gig PoE+ support
  • Installs cleanly with fanless ceiling-mount design at 32.5 mm height

Ceiling-mounted 8-stream WiFi 7 AP

This ceiling-mounted access point delivers 8-stream WiFi 7 connectivity across three radios covering 2.4, 5 and 6 GHz bands. It is built for environments that need high client density and modern spectrum efficiency. A dedicated spectral scanning radio improves interference detection and channel selection without taking capacity away from client traffic. The fanless chassis relies on passive thermal dissipation for silent operation.

PoE+ powered with 10 GbE uplink

The unit draws power through a PoE+ connection and uplinks at 10, 5, 2.5 or 1 GbE to the wired network. This single-cable deployment reduces cabling complexity and frees up switch ports that would otherwise need separate power injectors. Mounting hardware is included for standard ceiling installations. The compact Ø215 x 32.5 mm profile fits unobtrusively into office or retail ceilings.

160 m² coverage for 500+ clients

Rated coverage reaches 160 m² while supporting more than 500 simultaneous connected devices. The 8 spatial streams provide headroom for dense conference rooms, lecture halls or open-plan offices. Builders needing more than 10 GbE uplink speed or wall-mount form factors should evaluate other models in the range. The spectral scanner operates continuously without reducing available client bandwidth.

Highlights

  • Handles 500+ devices with 8-stream WiFi 7 capacity
  • Covers 160 m² using tri-band 2.4/5/6 GHz radios
  • Detects interference via dedicated spectral scanning radio
  • Connects at 10 GbE uplink with multi-gig PoE+ support
  • Installs cleanly with fanless ceiling-mount design at 32.5 mm height

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum number of connected devices the 8-stream WiFi 7 radio can handle before performance degrades?

The access point supports 500+ connected devices across its tri-radio 2.4 / 5 / 6 GHz configuration with 8 spatial streams.

How does the fanless design manage heat during continuous operation in a ceiling mount?

The fanless design provides optimized thermal efficiency and power dissipation for sustained ceiling-mounted deployment.

Which PoE standard and uplink speeds must the existing switch provide for this access point to function?

The unit requires PoE+ power and a switch port supporting 10/5/2.5/1 GbE uplink speeds.
