White rectangular outdoor Wi-Fi 7 access point with integrated directional antenna and mounting bracket, IP67 rated

Ubiquiti Networks

Ubiquiti Networks U7-Pro-Outdoor-US Wi-Fi 7 access point

SKU CH-TPS5-PTB6K MPN U7-Pro-Outdoor-US

Weatherproof IP67 Wi-Fi 7 access point with directional and omnidirectional antennas covering 465 m² for 300+ users

  • # of Users300+
  • WiFi GenerationWi-Fi 7
  • AntennaAntenna Gain 6 GHz: Directional internal: 10 dBi, 90° x 45°
  • Mounting LocationOutdoor
  • Operating Range465 m² (5,000 ft²)
  • System RequirementsApplication Requirements UniFi Network: Version 9.0.114 and

Options U7 Pro Outdoor

Show 1 more configurations
  • Weatherproof IP67 design withstands harsh outdoor conditions
  • Wi-Fi 7 tri-radio with six spatial streams boosts throughput
  • Extended-range AFC 6 GHz support expands high-frequency coverage
  • Directional and omnidirectional antennas cover up to 465 m²
  • Supports 300+ concurrent users with MU-MIMO on all bands

Outdoor Wi-Fi 7 access point with IP67 rating

The Ubiquiti U7 Pro Outdoor delivers tri-radio Wi-Fi 7 connectivity in a weatherproof enclosure rated IP67. It supports more than 300 concurrent users across 2.4 GHz, 5 GHz and 6 GHz bands. The unit includes a mounting bracket for pole or wall installation.

Suited for outdoor deployments needing 6 GHz range

This access point fits campuses, venues and large gardens where extended-range 6 GHz coverage is required. Automatic Frequency Coordination enables the 6 GHz radio to operate at higher power for greater reach. Buyers who only need 2.4 GHz and 5 GHz bands should consider a dual-radio model instead.

Power input range of 42.5 to 57 V DC

The device draws up to 21 W and requires a PoE source or injector that supplies 42.5–57 V DC. Without a compatible power source the access point will not operate. Verify your switch or injector voltage before purchase.

Highlights

  • Weatherproof IP67 design withstands harsh outdoor conditions
  • Wi-Fi 7 tri-radio with six spatial streams boosts throughput
  • Extended-range AFC 6 GHz support expands high-frequency coverage
  • Directional and omnidirectional antennas cover up to 465 m²
  • Supports 300+ concurrent users with MU-MIMO on all bands

Specifications

BrandUbiquiti Networks
SeriesOutdoor AP
ModelU7 Pro Outdoor
Part NumberU7-Pro-Outdoor-US
# of Users300+
WiFi GenerationWi-Fi 7
AntennaAntenna Gain
6 GHz: Directional internal: 10 dBi, 90° x 45°
5 GHz: Directional internal: 11 dBi, 90° x 45°, External omni: 8 dBi, 360° x 15°
2.4 GHz: Directional internal: 8 dBi, 90° x 90°, External omni: 6 dBi, 360° x 15°
Mounting LocationOutdoor
Operating Range465 m² (5,000 ft²)
System RequirementsApplication Requirements
UniFi Network:
Version 9.0.114 and later
Mobile App:
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later
LEDs(1) Power: White/Blue
(4) Mesh signal: Blue
MIMO6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Power SupplySupported Voltage Range
42.5—57V DC
Max Power Consumption21W
CertificationsFCC, IC
ComplianceNDAA Compliant

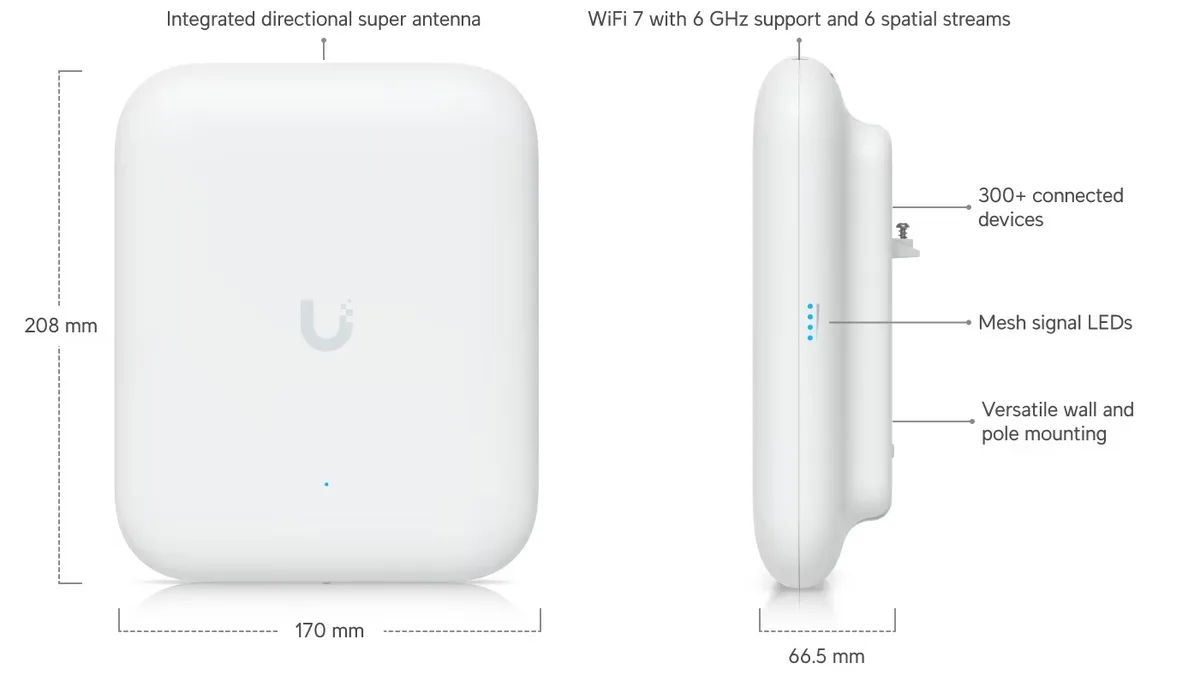

DimensionsWithout mount: 170 x 208 x 66.5 mm
(6.7 x 8.2 x 2.6")
With mount: 170 x 208 x 121.8 mm
(6.7 x 8.2 x 4.8")
WeightDevice: 1.2 kg (2.6 lb)
With mount: 1.33 kg (2.9 lb)
FeaturesWireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Hotspot Portal:
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Shipping weight2.00 kg
Package size289 × 260 × 99 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What mounting hardware and clearance does the U7-Pro-Outdoor-US need for pole or wall installation?

The box includes mounting accessories for pole or wall attachment. With the bracket fitted the unit measures 170 x 208 x 121.8 mm and weighs 1.33 kg, so allow that depth plus cable bend radius behind the antenna.

Which step is most often missed when adopting the U7-Pro-Outdoor-US in UniFi Network?

After powering the AP with a 42.5—57V DC PoE source, you must run UniFi Network 9.0.114 or later and adopt the device before wireless meshing or 6 GHz AFC features become active.

What ongoing care does the IP67-rated U7-Pro-Outdoor-US require to maintain its 465 m² directional coverage?

Inspect the radome and gasket seals annually for debris or UV damage, verify the articulation bracket bolts remain tight after wind events, and keep UniFi Network firmware current to preserve AFC 6 GHz operation.
