White circular ceiling-mount access point, low profile with smooth matte finish

Ubiquiti Networks

Ubiquiti Networks U7-LR-US WiFi 7 access point

SKU CH-K4SE-P9D07 MPN U7-LR-US

Compact ceiling-mount WiFi 7 access point with five spatial streams, extended range covering 160 m², and support for 300+ clients

  • ColorWhite
  • # of Users300+
  • WiFi GenerationWi-Fi 7
  • AntennaPerformance MIMO 5 GHz: 3 x 3 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2
  • Mounting LocationIndoor
  • LEDsSystem: White/Blue

Options U7 Long Range

Show 1 more configurations
  • Supports 300+ concurrent users for high-density environments
  • WiFi 7 delivers up to 4.3 Gbps on 5 GHz band
  • Compact 206 mm diameter ceiling mount fits discreetly
  • 14 W PoE power consumption simplifies installation wiring
  • Dedicated spectral analyzer radio optimises channel performance proactively

Ceiling-mount WiFi 7 AP for 300+ users

The Ubiquiti U7-LR-US is a compact indoor access point built for WiFi 7 environments. It delivers five spatial streams across dual-band radios and supports over 300 concurrent clients. A dedicated spectral analyzer radio scans for interference to keep performance stable. The unit covers roughly 160 square metres.

Check PoE infrastructure and mounting surface

This access point draws up to 14 W and requires a PoE power source; confirm your switch or injector can supply it. The ceiling-mount kit is designed for a flat indoor surface with a 206 mm diameter footprint. No separate power adapter is included, so the Ethernet run must carry both data and power. Verify that your controller software can adopt the device before installation.

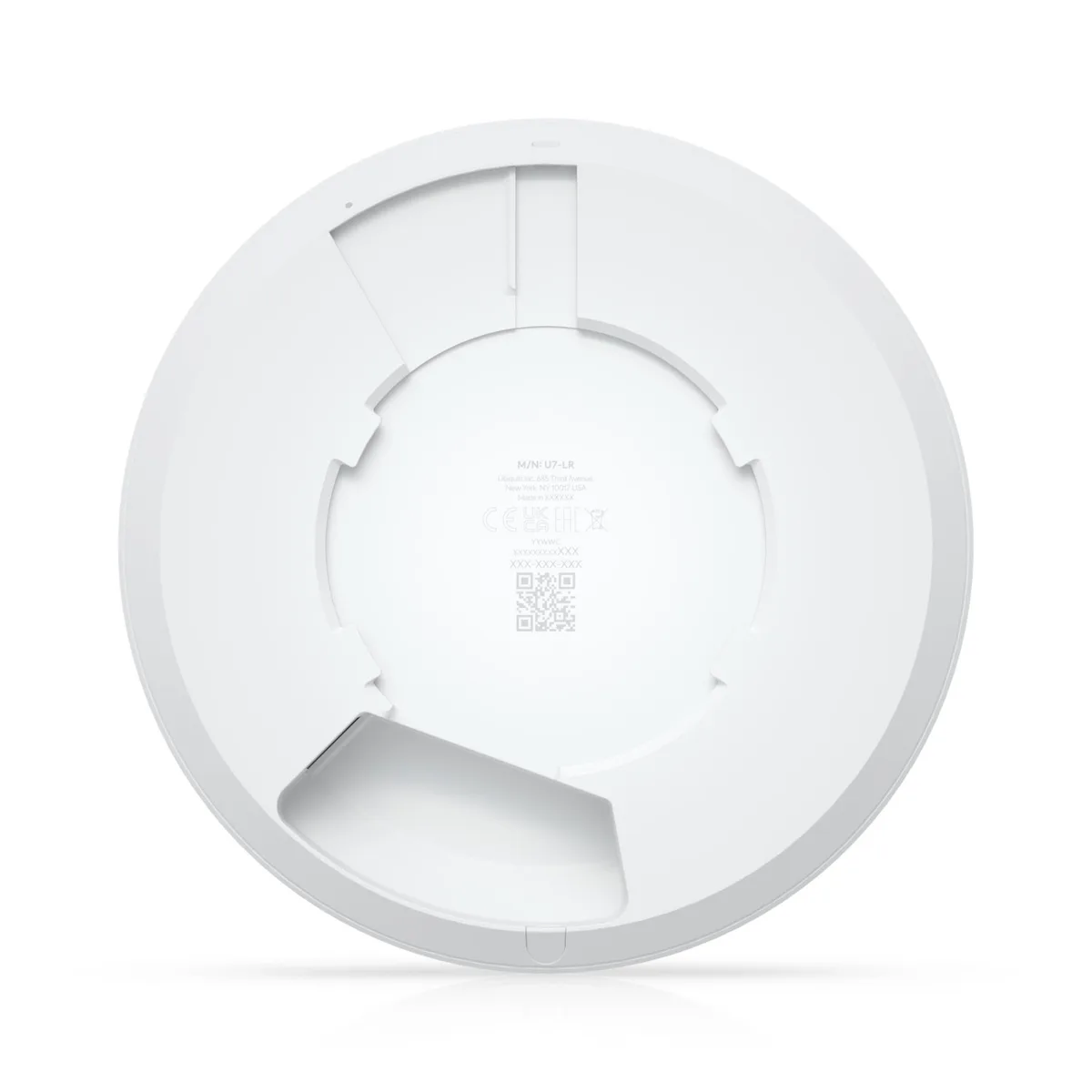

White polycarbonate housing with integrated antennas

The low-profile white disc measures 46 mm thick and blends into standard ceiling tiles. Internal directional antennas provide 6 dBi gain on 5 GHz and 4 dBi on 2.4 GHz, with a maximum transmit power of 27 dBm. A single status LED shows white or blue system states. The package supplies the access point and all mounting hardware for a clean, flush installation.

Highlights

  • Supports 300+ concurrent users for high-density environments
  • WiFi 7 delivers up to 4.3 Gbps on 5 GHz band
  • Compact 206 mm diameter ceiling mount fits discreetly
  • 14 W PoE power consumption simplifies installation wiring
  • Dedicated spectral analyzer radio optimises channel performance proactively

Specifications

BrandUbiquiti Networks
ModelU7 Long Range
Part NumberU7-LR
ColorWhite
# of Users300+
WiFi GenerationWi-Fi 7
AntennaPerformance
MIMO
5 GHz: 3 x 3 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz: 4.3 Gbps (BW160)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
5 GHz: 6 dBi
2.4 GHz: 4 dBi
Max. TX Power
5 GHz: 27 dBm
2.4 GHz: 26 dBm
Supported Data Rates
802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
Mounting LocationIndoor
LEDsSystem: White/Blue
Power SupplyPoE
Max Power Consumption14 W
FeaturesWireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Hotspot Portal
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Shipping weight0.82 kg
Package size211 × 211 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box with the U7-LR-US and what must be purchased separately?

The package includes the access point and mounting accessories. A PoE injector or PoE switch is required for power and is sold separately.

How do I choose between the U7-LR-US and the U7 Pro or U7 Lite models?

The U7-LR-US offers 5 spatial streams on dual-band 2.4 and 5 GHz with 160 m² coverage. The U7 Pro adds a 6 GHz radio and 6 streams, while the U7 Lite uses 4 streams on dual-band.

What does the 4.3 Gbps maximum data rate on 5 GHz mean for real-world throughput?

The 4.3 Gbps figure is the peak PHY rate on a 160 MHz channel with 3x3 MIMO. Actual throughput will be lower due to overhead, client capabilities and environmental factors.
