White rectangular outdoor WiFi 7 access point with integrated directional antenna and mounting bracket

Ubiquiti Networks

Ubiquiti Networks U7-Outdoor WiFi 7 access point

SKU CH-QBJ9-BJCJV MPN U7-Outdoor

Outdoor WiFi 7 access point covers 465 m² with a directional super antenna, supports 250+ devices, and connects via 2.5 GbE PoE+

  • # of Users250+
  • Standards802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
  • WiFi GenerationWi-Fi 7
  • Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5,
  • SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  • Antenna2.4 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO)

Options U7-Outdoor

Show 1 more configurations
  • WiFi 7 performance with 4 spatial streams for high-density outdoor use
  • 465 m² directional coverage or 160 m² omnidirectional reach with software-adjustable beamwidth
  • Supports 250+ concurrent devices across dual-band 2.4 GHz and 5 GHz radios
  • 5 GbE uplink and PoE+ power up to 19 W for simple outdoor deployment
  • IPX6 weatherproof housing rated from -30 °C to 60 °C for year-round operation

Outdoor WiFi 7 access point

The Ubiquiti Networks U7-Outdoor is a dual-radio wireless access point built for exterior deployment. It supports WiFi 7 and legacy 802.11 standards across 2.4 GHz and 5 GHz bands with 4 spatial streams. The IPX6-rated enclosure operates from -30 to 60 °C and handles 5 to 95 % non-condensing humidity. It is suited for campuses, yards and outdoor venues needing long-range coverage.

Sustained load behaviour

Under continuous traffic the AP delivers up to 1.7 Gbps on 5 GHz and 300 Mbps on 2.4 GHz using MU-MIMO. The integrated directional super antenna covers 465 m² open space while the included omni antennas cover 160 m². A single 2.5 GbE RJ45 uplink feeds the radios. Max power draw is 19 W via PoE+ at 42.5—57 V DC, supporting 250+ concurrent users without thermal throttling.

Installation and common issues

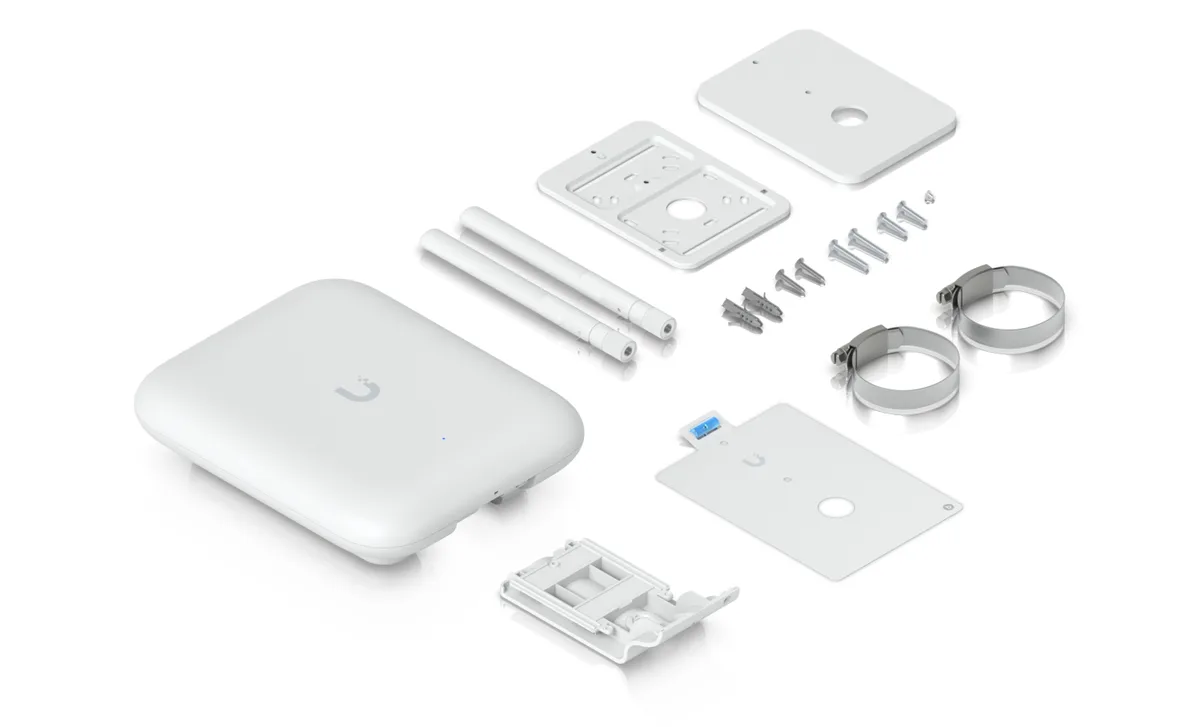

The unit weighs 1.2 kg and measures 170 x 208 x 54.5 mm without the mount, extending to 121.8 mm with it. Wall and pole hardware is included for versatile positioning. Software-adjustable beamwidth lets installers tune coverage after mounting. Buyers needing 6 GHz radios, 300+ device capacity or IP67 ingress protection should consider the U7 Pro Outdoor model instead.

Highlights

  • WiFi 7 performance with 4 spatial streams for high-density outdoor use
  • 465 m² directional coverage or 160 m² omnidirectional reach with software-adjustable beamwidth
  • Supports 250+ concurrent devices across dual-band 2.4 GHz and 5 GHz radios
  • 5 GbE uplink and PoE+ power up to 19 W for simple outdoor deployment
  • IPX6 weatherproof housing rated from -30 °C to 60 °C for year-round operation

Specifications

BrandUbiquiti Networks
SeriesWIFI Access points
ModelU7 Outdoor
Part NumberU7-Outdoor
# of Users250+
Standards802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
WiFi GenerationWi-Fi 7
Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Antenna2.4 GHz 2 x 2 (DL/UL MU-MIMO)
5 GHz 2 x 2 (DL/UL MU-MIMO)
Transmitted Power2.4 GHz 23 dBm
5 GHz 26 dBm
Mounting LocationOutdoor
Operating RangeOutdoor: Up to 465m
Interface(1) 1/2.5 GbE RJ45 port
LAN Ports(1) 1/2.5 GbE RJ45 port
Power SupplyPower method PoE+
Power supply UniFi PoE Switch
Supported voltage range 42.5—57V DC
Max. power consumption 19W
Temperature-30 to 60° C (-22 to 140° F)
Humidity5 to 95% noncondensing
Dimensions170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
Weight1.2 kg (2.6 lb)
FeaturesBSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 200+
Shipping weight1.75 kg
Package size267 × 229 × 114 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and power does the U7-Outdoor draw when running 24/7?

Max power consumption is 19 W via PoE+ (42.5–57 V DC). It operates from -30 to 60 °C with no fan, so heat is dissipated passively through the weatherproof IPX6 enclosure.

What existing network gear is required to power and manage this access point?

A UniFi PoE+ switch or injector supplying 42.5–57 V DC, plus a UniFi Network controller (Cloud Key, Dream Machine, or self-hosted) for adoption and configuration.

Will the 2.5 GbE uplink bottleneck my older 1 GbE switches and cabling?

The single RJ45 port auto-negotiates at 1 GbE or 2.5 GbE, so it works with existing Cat5e/6 runs and 1 GbE switches without any configuration change.
