White circular ceiling-mounted access point with flat low-profile design and smooth matte finish

Ubiquiti Networks

Ubiquiti Networks U7-Pro-Max WiFi 7 access point

SKU CH-VS35-EKKRZ MPN U7-Pro-Max

Ceiling-mounted WiFi 7 access point supporting 500+ clients across 2.4, 5 and 6 GHz bands with 8 spatial streams, a dedicated spectral scanning radio and 2.5 GbE PoE+ uplink

  • # of Users500+
  • Standards802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
  • WiFi GenerationWi-Fi 7
  • Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5,
  • SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  • Antenna2.4 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 6

Options U7 Pro Max

Show 1 more configurations
  • WiFi 7 tri-band radio delivers 8 spatial streams for high-density throughput
  • dedicated spectral scanning engine proactively avoids interference for reliable connections
  • 160 m indoor coverage supports 500+ concurrent clients in large spaces
  • 5 GbE uplink with PoE+ power simplifies installation and cabling
  • ceiling-mount design fits discreetly in commercial environments

Ceiling-mounted WiFi 7 access point

The U7-Pro-Max is a ceiling-mounted wireless access point built for high-density environments such as offices, schools and large venues. It supports the 802.11be standard and operates across 2.4 GHz, 5 GHz and 6 GHz bands simultaneously. The unit handles more than 500 concurrent clients and is powered through a single PoE+ connection.

8 spatial streams and tri-radio capacity

Eight spatial streams (2×2 on 2.4 GHz, 4×4 on 5 GHz, 2×2 on 6 GHz) deliver high aggregate throughput for demanding workloads. The 2.5 GbE uplink prevents the wired backhaul from becoming a bottleneck under heavy multi-user traffic. Coverage extends up to 160 m indoors, though dense building materials and co-channel interference will reduce the effective range in practice.

Dedicated spectral scanning radio

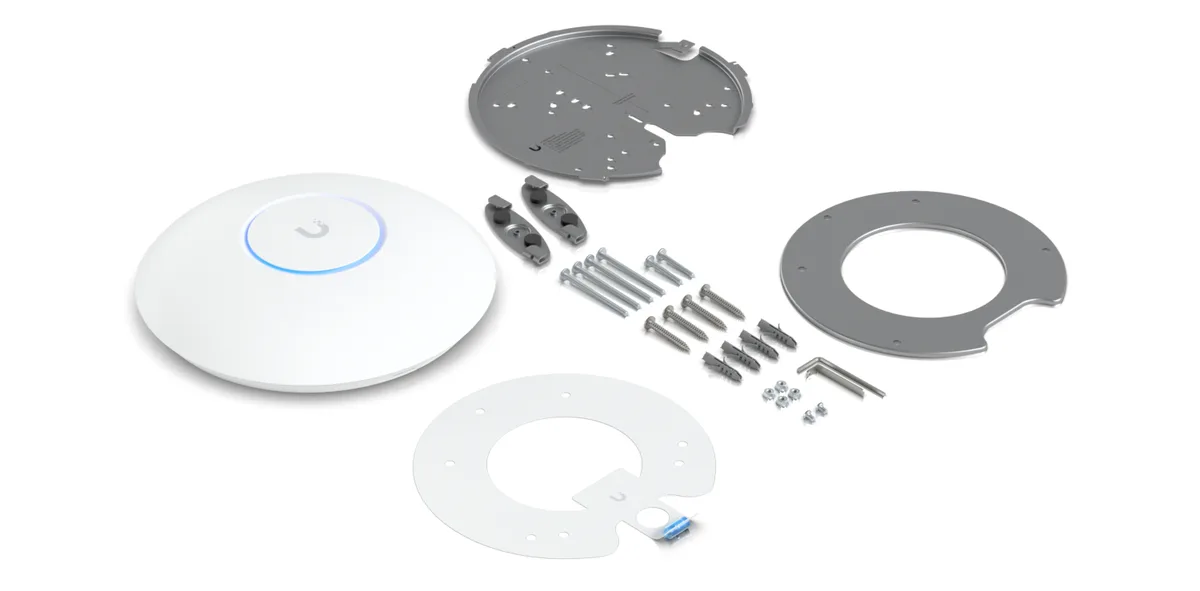

A built-in spectral analyzer radio continuously monitors the RF environment to detect interference and guide automatic channel selection. Multi-Link Operation combines bands to lower latency and improve link reliability for compatible clients. Mounting accessories are included in the box for standard ceiling installation.

Highlights

  • WiFi 7 tri-band radio delivers 8 spatial streams for high-density throughput
  • dedicated spectral scanning engine proactively avoids interference for reliable connections
  • 160 m indoor coverage supports 500+ concurrent clients in large spaces
  • 5 GbE uplink with PoE+ power simplifies installation and cabling
  • ceiling-mount design fits discreetly in commercial environments

Specifications

BrandUbiquiti Networks
SeriesWIFI Access points
ModelU7-Pro-Max
# of Users500+
Standards802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
WiFi GenerationWi-Fi 7
Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7)
5 GHz
6 GHz
7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Antenna2.4 GHz 2 x 2 (DL/UL MU-MIMO)
5 GHz 4 x 4 (DL/UL MU-MIMO)
6 GHz 2 x 2 (DL/UL MU-MIMO)
Transmitted Power2.4 GHz 23 dBm
5 GHz 29 dBm
6 GHz 23 dBm
Mounting LocationIndoor
Operating RangeIndoor: Up to 160m, Outdoor: Up to 160m
Interface(1) 1/2.5 GbE RJ45 port
LAN Ports(1) 1/2.5 GbE RJ45 port
Power SupplyPoE+
Temperature-30 to 60° C (-22 to 140° F)
Humidity5 to 95% noncondensing
DimensionsØ206 x 46 mm (Ø8.1 x 1.8")
Weight680 g (1.5 lb)
FeaturesBSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 500+
Shipping weight1.32 kg
Package size248 × 248 × 95 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the U7-Pro-Max's 2.5 GbE RJ45 port work with my existing Gigabit switch?

Yes, the 2.5 GbE RJ45 port is backward compatible with 1 GbE switches, so your existing Gigabit infrastructure will connect without any configuration changes.

How can I verify the dedicated spectral analyzer radio is actively scanning for interference after installation?

In the UniFi controller, open the RF environment or spectral scan view for this AP; a live waterfall display confirms the dedicated radio is continuously monitoring the 2.4, 5 and 6 GHz bands.

Does the box include a PoE+ injector or do I need to buy one separately?

The package contains the access point and mounting accessories only; a PoE+ injector or PoE+ switch must be purchased separately to power the unit.
