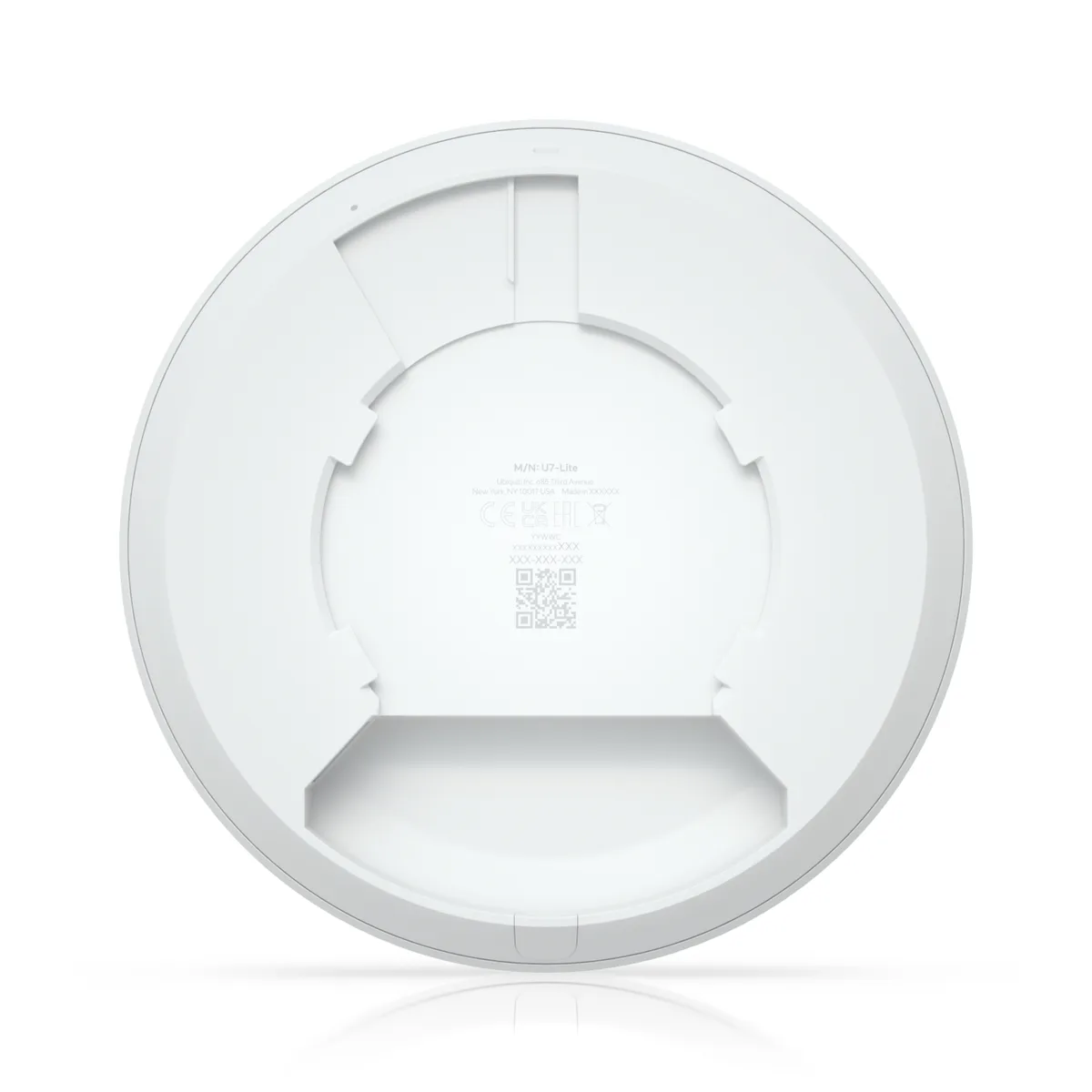

White circular ceiling-mounted access point, low-profile disc shape with smooth matte finish

Ubiquiti Networks

Ubiquiti Networks U7-LITE-US access point

SKU CH-FMGX-FC9K4 MPN U7-LITE-US

Compact ceiling-mounted Wi-Fi 7 access point with 2.5 GbE uplink and 200-plus client capacity

  • ColorWhite
  • # of Users200+
  • StandardsWIFi 7
  • WiFi GenerationWi-Fi 7
  • Device ManagementEthernet
  • Wireless Data Rates7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/

Options U7 Lite

Show 1 more configurations
  • Wi-Fi 7 delivers up to 4.3 Gbps peak throughput
  • 5 GbE uplink removes wired bottleneck for high-speed clients
  • Compact 171.5 mm diameter fits tight ceiling spaces
  • Supports 200+ concurrent users for dense environments
  • Dedicated spectral radio optimises channels automatically

Compact Wi-Fi 7 Access Point

The Ubiquiti U7 Lite is a ceiling-mounted wireless access point that delivers Wi-Fi 7 connectivity through a 2.5 GbE uplink. It supports over 200 concurrent clients and provides indoor coverage up to 115 metres. Management is handled via UniFi Network version 9.0.114 or later and the UniFi OS mobile applications.

Suits small offices and homes needing Wi-Fi 7

This unit fits deployments that want a low-profile indoor AP with 2×2 MIMO on both 2.4 GHz and 5 GHz bands. Buyers who require 6 GHz operation, more than four spatial streams, or a larger physical footprint for extended range should consider other models in the range.

Handles 200-plus clients across 115 m²

The radio reaches a peak PHY rate of 4.3 Gbps on 5 GHz using 240 MHz EHT channels and 2.4 Gbps on 2.4 GHz with 160 MHz HE channels. Maximum power draw is 13 W from a 42.5–57 V DC source. The 2.5 GbE port and dual-radio design set the practical throughput ceiling for high-density environments.

Highlights

  • Wi-Fi 7 delivers up to 4.3 Gbps peak throughput
  • 5 GbE uplink removes wired bottleneck for high-speed clients
  • Compact 171.5 mm diameter fits tight ceiling spaces
  • Supports 200+ concurrent users for dense environments
  • Dedicated spectral radio optimises channels automatically

Specifications

BrandUbiquiti Networks
SeriesWIFI Access points
ModelU7 Lite
Part NumberU7-Lite
ColorWhite
# of Users200+
StandardsWIFi 7
WiFi GenerationWi-Fi 7
Device ManagementEthernet
Wireless Data Rates7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Mounting LocationIndoor
Operating RangeIndoor: Up to 115m, Outdoor: Up to 115m
System RequirementsApplication Requirements
UniFi Network: Version 9.0.114 and later
UniFi OS: iOS™ version 10.20.2 and later / Android™ version 10.21.7 and later
Interface(1) 2.5 GbE RJ45 port
LEDsSystem: White/Blue
MIMOMIMO:
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Power SupplySupported Voltage Range: 42.5—57V DC
Max Power Consumption13W
ComplianceCE, FCC, IC
DimensionsØ171.5 x 33 mm
(Ø6.8 x 1.3")
Weight313 g (11 oz)
FeaturesPerformance
MIMO
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power
5 GHz: 24 dBm
2.4 GHz: 23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features:
Wireless Mesh
Shipping weight0.59 kg
Package size191 × 191 × 51 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need a PoE injector or switch that can supply 42.5—57V DC to power the U7-LITE-US?

Yes, the access point requires 42.5—57V DC and draws up to 13W, so a compatible PoE source is necessary.

Can I uplink the U7-LITE-US to my existing 1 GbE switch without a bottleneck?

The unit has a single 2.5 GbE RJ45 port; connecting it to a 1 GbE switch will work but limits the uplink to 1 Gbps.

How do I verify the U7-LITE-US is operating correctly after installation?

In the UniFi Network application (version 9.0.114 or later) the device should show a white or blue system LED and report connected clients with throughput up to the stated MCS rates.
