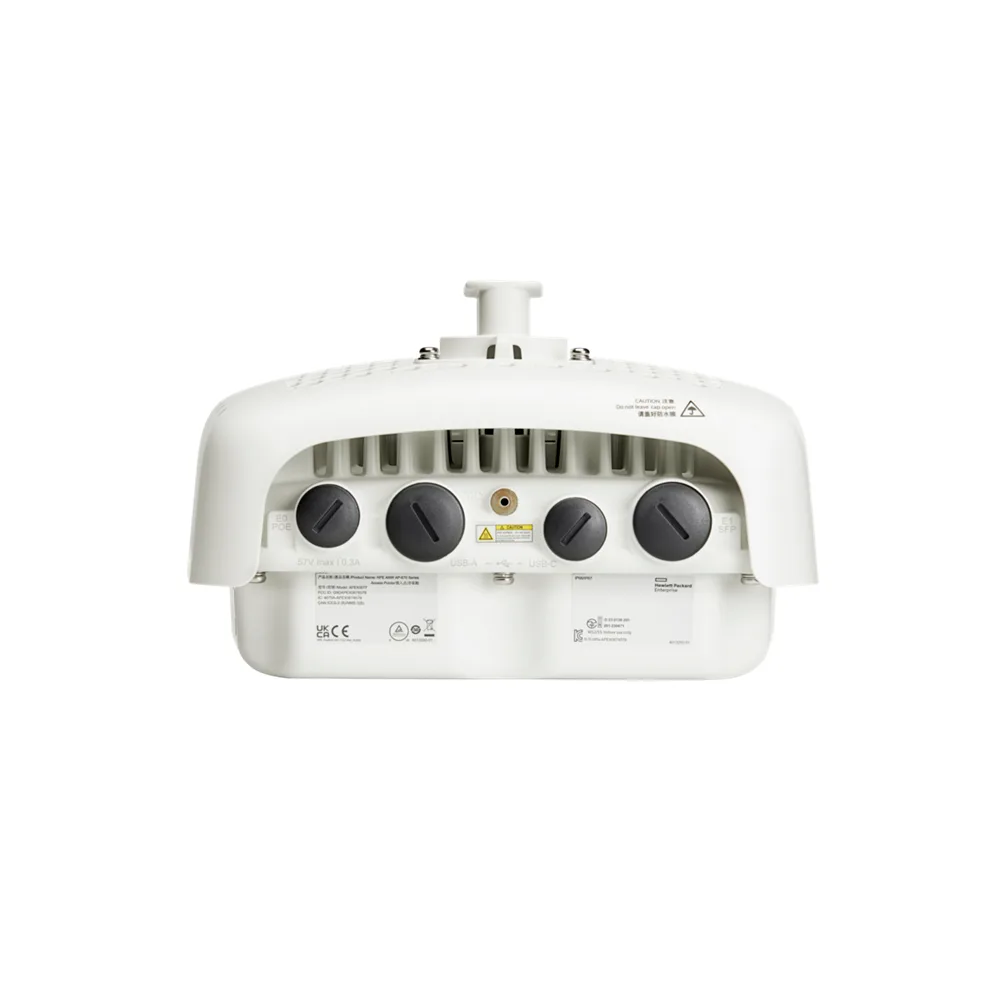

White rectangular outdoor access point with internal directional antennas and RJ-45 plus SFP ports

HPE Aruba Networking

HPE Aruba Networking AP-677 S0P55A access point

SKU CH-T1TQ-ANZE5 MPN S0P55A

Tri-radio Wi-Fi 6E outdoor access point with internal directional antennas delivering up to 3.6 Gbps combined throughput and integrated Bluetooth and Zigbee radios for IoT services

  • WiFi GenerationWi-Fi 6E
  • Frequency BandAP type: Outdoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurre
  • AntennaInternal antenna model - Built-in Directional Antennas - 2.4
  • Mounting LocationOutdoor
  • Interface(1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed an
  • Max Power Consumption45.5 W

Model AP-677

  • Tri-radio Wi-Fi 6E delivers up to 3.6 Gbps combined throughput for demanding applications
  • 6 GHz band adds 1200 MHz spectrum capacity to reduce congestion and latency
  • Built-in directional antennas provide 6.9 dBi gain at 2.4 and 6 GHz for focused outdoor coverage
  • Integrated Bluetooth and Zigbee radios simplify IoT sensor and location-service deployments
  • WPA3 and Enhanced Open encryption protect user and guest traffic with stronger authentication

Tri-Radio Outdoor Wi-Fi 6E Access Point

The HPE Aruba Networking AP-677 S0P55A is an outdoor wireless access point built for the 670 Series. It operates across 2.4 GHz, 5 GHz and 6 GHz bands concurrently using 2x2 MIMO. The tri-radio design supports up to 512 associated client devices per radio and 16 BSSIDs per radio, with the 6 GHz radio limited to 8 BSSIDs. It targets deployments that need high-density coverage in open-air environments.

Sustained Load Behaviour

Under continuous demand the AP delivers a maximum combined data rate of 3.6 Gbps across its three radios. The 2.4 GHz radio reaches 574 Mbps with 2SS HE40 802.11ax clients, the 5 GHz radio achieves 1.2 Gbps with 2SS HE80 clients and the 6 GHz radio hits 2.4 Gbps with 2SS HE160 clients. Peak power draw is rated at 45.5 W, so the unit maintains throughput without thermal throttling when powered appropriately.

Directional Antennas and Dual Uplink

Built-in directional antennas provide 6.9 dBi gain on 2.4 GHz and 6 GHz, and 6.5 dBi on 5 GHz, focusing energy toward the coverage zone. An integrated omnidirectional BLE/Zigbee antenna adds 4.5 dBi gain for IoT services. Connectivity uses one 10/100/1000BASE-T RJ-45 port with auto-sensing and one SFP fiber port, giving installers copper or fibre backhaul options for outdoor mounting.

Highlights

  • Tri-radio Wi-Fi 6E delivers up to 3.6 Gbps combined throughput for demanding applications
  • 6 GHz band adds 1200 MHz spectrum capacity to reduce congestion and latency
  • Built-in directional antennas provide 6.9 dBi gain at 2.4 and 6 GHz for focused outdoor coverage
  • Integrated Bluetooth and Zigbee radios simplify IoT sensor and location-service deployments
  • WPA3 and Enhanced Open encryption protect user and guest traffic with stronger authentication

Specifications

BrandHPE Aruba Networking
Series670 Series
ModelAP-677
Part NumberS0P55A
WiFi GenerationWi-Fi 6E
Frequency BandAP type: Outdoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2x2 MIMO; 2.4 GHz radio: Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with 2SS HE40 802.11ax client devices; 5 GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with 2SS HE80 802.11ax client devices; 6 GHz radio: Two spatial stream Single User (SU) MIMO for up to 2.4 Gbps wireless data rate with 2SS HE160 802.11ax client devices; Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 8 for the 6GHz radio)
AntennaInternal antenna model
- Built-in Directional Antennas
- 2.4 GHz Antennas 6.9 dBi
- 5 GHz Antennas 6.5 dBi
- 6 GHz Antennas 6.9 dBi
- BLE/Zigbee: Integrated omnidirectional antenna with peak gain of 4.5 dBi
Mounting LocationOutdoor
Interface(1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX
(1) SFP Fiber port
Max Power Consumption45.5 W
CertificationsWi-Fi Alliance;
Bluetooth SIG;
Ethernet Alliance (E0, PoE PD Device Class 6)
Shipping weight5.35 kg
Package size368 × 363 × 251 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat should I expect from the AP-677 running continuously at full load?

The AP-677 draws a maximum of 45.5 W, so sustained operation produces heat consistent with that power level; plan airflow around the mounting location accordingly.

Which cables and power equipment do I need to have on hand before installing this unit?

You need an Ethernet cable for the 10/100/1000BASE-T RJ-45 port and an SFP module with fibre patch cord if using the SFP port, plus a PoE source capable of delivering 45.5 W (Class 6).

Can the AP-677 serve legacy 2.4 GHz and 5 GHz clients while also using the new 6 GHz band?

Yes, the tri-radio design runs 2.4 GHz, 5 GHz and 6 GHz concurrently, each with 2x2 MIMO, so older clients stay connected on their bands while 6E devices use the 6 GHz radio.
