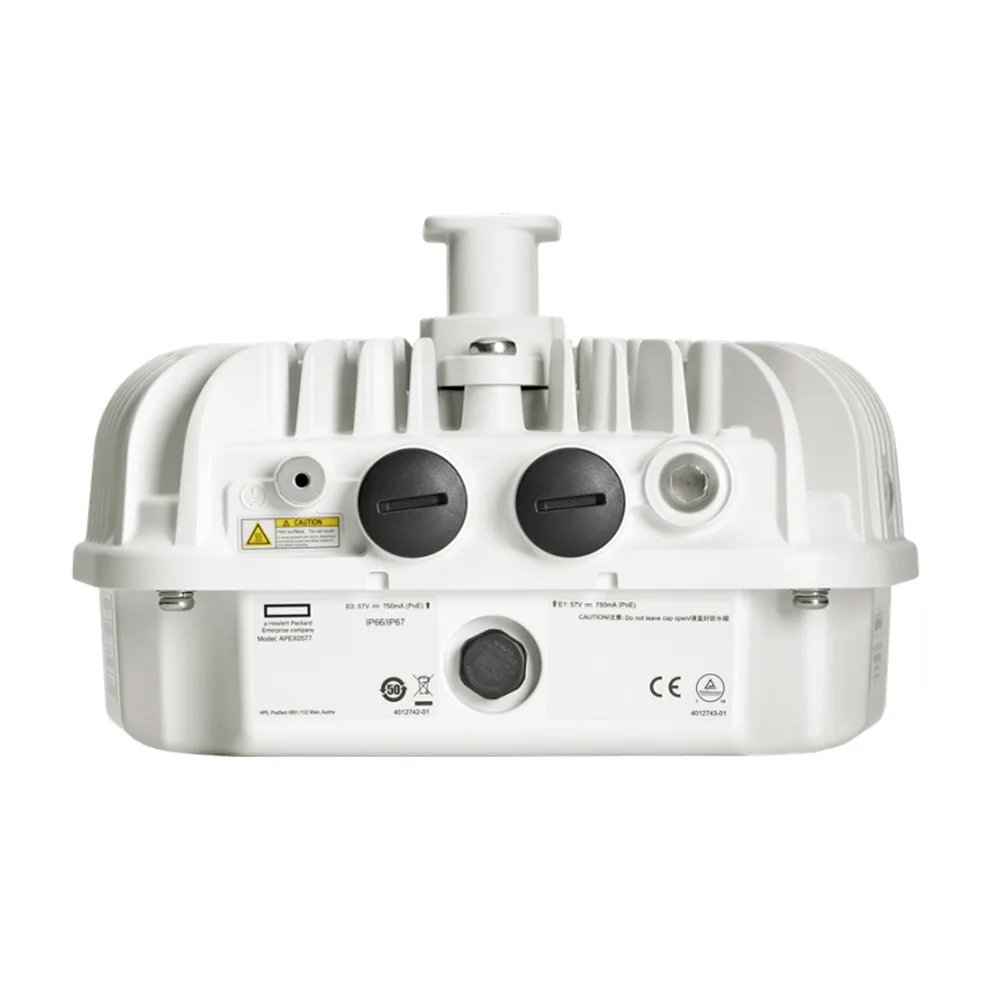

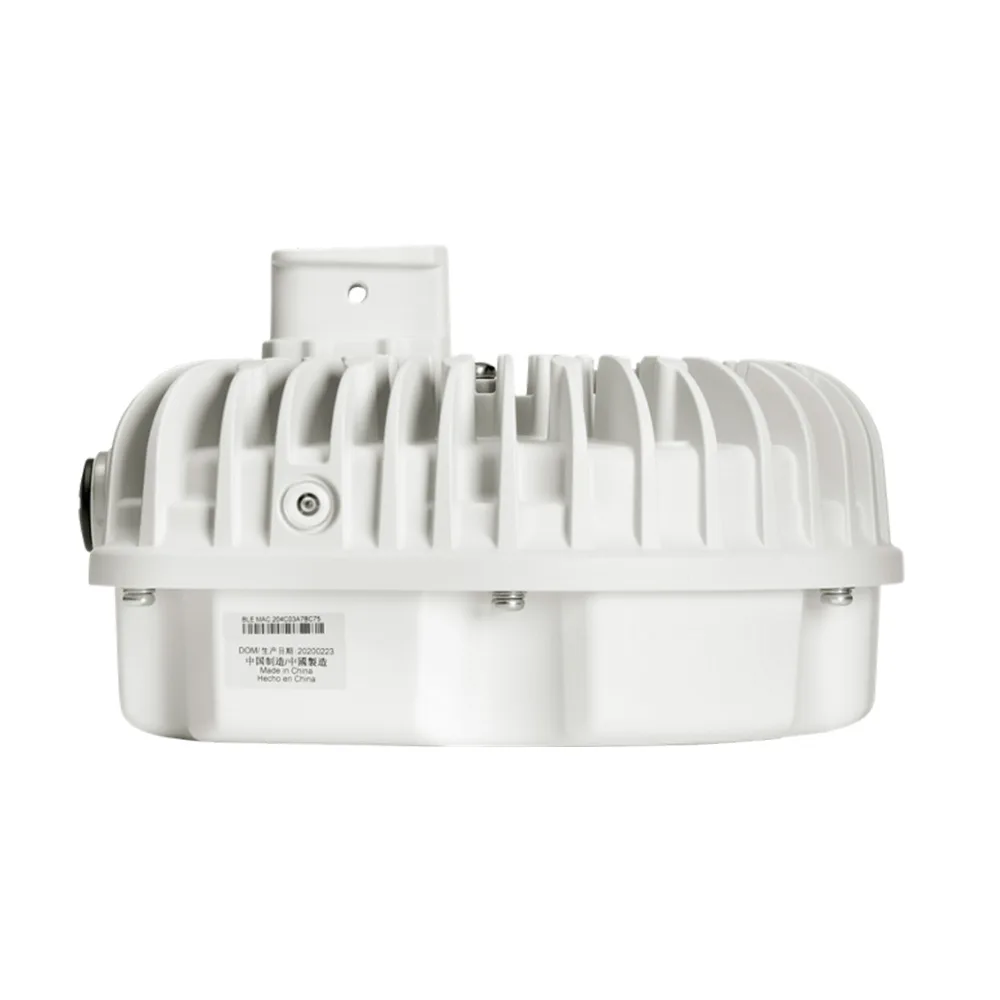

White rectangular outdoor Wi-Fi 6 access point with integrated directional antennas, 23 by 22 by 13 cm, 2.1 kg

HPE Aruba Networking

HPE Aruba Networking AP-577 Wi-Fi 6 Outdoor Access Point R4H23A

SKU CH-YSQ5-8GQ1S MPN R4H23A

Outdoor Wi-Fi 6 access point with directional antennas, Bluetooth 5 and Zigbee for IoT, hardened from -40°C to +65°C

  • StandardsCB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance
  • WiFi GenerationWi-Fi 6
  • Wireless Data RatesBuilt-in 90°H x 90°V directional antennas: 5 GHz (6.3 dBi),
  • Mounting LocationOutdoor
  • Operating RangeAP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIM
  • Max Power ConsumptionMaximum power consumption: PoE powered (dual ports): 32.0W P

Model AP-577

  • Weather-hardened for -40 °C to +65 °C outdoor operation
  • Directional 90° antennas deliver 6.3 dBi at 5 GHz and 6.4 dBi at 2.4 GHz
  • Wi-Fi 6 dual radio with 5 GHz 4×4 MIMO and 2.4 GHz 2×2 MIMO
  • Bluetooth 5 and Zigbee IoT radio plus USB port for third-party expansion
  • Railway certified to EN 50155 and EN 50121 for transport deployments

Outdoor Wi-Fi 6 Access Point

The HPE Aruba Networking AP-577 is a dual-radio outdoor access point built for Wi-Fi 6 connectivity in exposed environments. It integrates 90° directional antennas with 6.3 dBi gain at 5 GHz and 6.4 dBi at 2.4 GHz. The hardened enclosure operates from -40°C to +65°C and meets IP-rated weatherproof requirements for permanent outdoor installation.

Suits campus and industrial Wi-Fi 6 rollouts

This unit suits network teams deploying high-density Wi-Fi 6 coverage across campuses, yards or rail platforms where directional antenna patterns focus capacity. It also supports Bluetooth 5 and Zigbee via an integrated IoT radio for sensor networks. Buyers needing omnidirectional coverage or indoor-only mounting should evaluate other form factors.

Pole or wall mount with PoE

The AP-577 mounts on poles or walls using the 23x22x13 cm chassis weighing 2.1 Kg. It draws up to 32.0 W via dual PoE ports or 26.1 W on a single PoE connection, with idle draw of 14.0 W or 16.0 W respectively. A USB port allows third-party expansion while the integrated IoT radio handles Bluetooth 5 and Zigbee without extra hardware.

Highlights

  • Weather-hardened for -40 °C to +65 °C outdoor operation
  • Directional 90° antennas deliver 6.3 dBi at 5 GHz and 6.4 dBi at 2.4 GHz
  • Wi-Fi 6 dual radio with 5 GHz 4×4 MIMO and 2.4 GHz 2×2 MIMO
  • Bluetooth 5 and Zigbee IoT radio plus USB port for third-party expansion
  • Railway certified to EN 50155 and EN 50121 for transport deployments

Specifications

BrandHPE Aruba Networking
Series570 Series
ModelAP-577
Part NumberR4H23A
StandardsCB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance certified 802.11a/b/g/n/
Wi-Fi CERTIFIED™ 6 (802.11ax)
Wi-Fi CERTIFIED™ ac (with Wave 2 features)
Passpoint® (Release 2) with HPE Aruba Networking Operating System and Instant Wi-Fi CERTIFIED Location™
WiFi GenerationWi-Fi 6
Wireless Data RatesBuilt-in 90°H x 90°V directional antennas: 5 GHz (6.3 dBi), 2.4 GHz (6.4 dBi)
Mounting LocationOutdoor
Operating RangeAP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) 5 GHz
Max Power ConsumptionMaximum power consumption:
PoE powered (dual ports): 32.0W
PoE powered (single port, full function): 26.1W
Maximum power consumption in idle mode: 14.0W (single PoE) or 16.0W (dual PoE)
Maximum power consumption in deep-sleep mode: 2.9W (single PoE) or 3.9W (dual PoE)
ComplianceFCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
IEC/EN/UL 62368-1
EN 60601-1-1, EN60601-1-2
Railway Certs:
EN 50155:2017-Railway Applications
EN 50121-1:2017-Railway EMC
EN 50121-3-2-Railway EMC
EN 50121-4:2016-Railway Immunity
IEC 61373 ed2:2008-Railway Shock and Vibration
Dimensions23x22x13 cm
Weight2.1 Kg
Shipping weight2.95 kg
Package size282 × 274 × 201 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What power source does the AP-577 require to operate?

The AP-577 is powered via PoE, drawing up to 32.0 W when both PoE ports are used or 26.1 W on a single PoE port for full function.

Can the AP-577's integrated directional antennas work with existing 2.4 GHz and 5 GHz clients?

Yes, the built-in 90°H x 90°V directional antennas support 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO, serving legacy and Wi-Fi 6 clients simultaneously.

How can I verify the AP-577 is running correctly after installation?

Check that the unit powers on within the 14.0 W to 16.0 W idle range and that both radios show active client connections on 2.4 GHz and 5 GHz bands.
