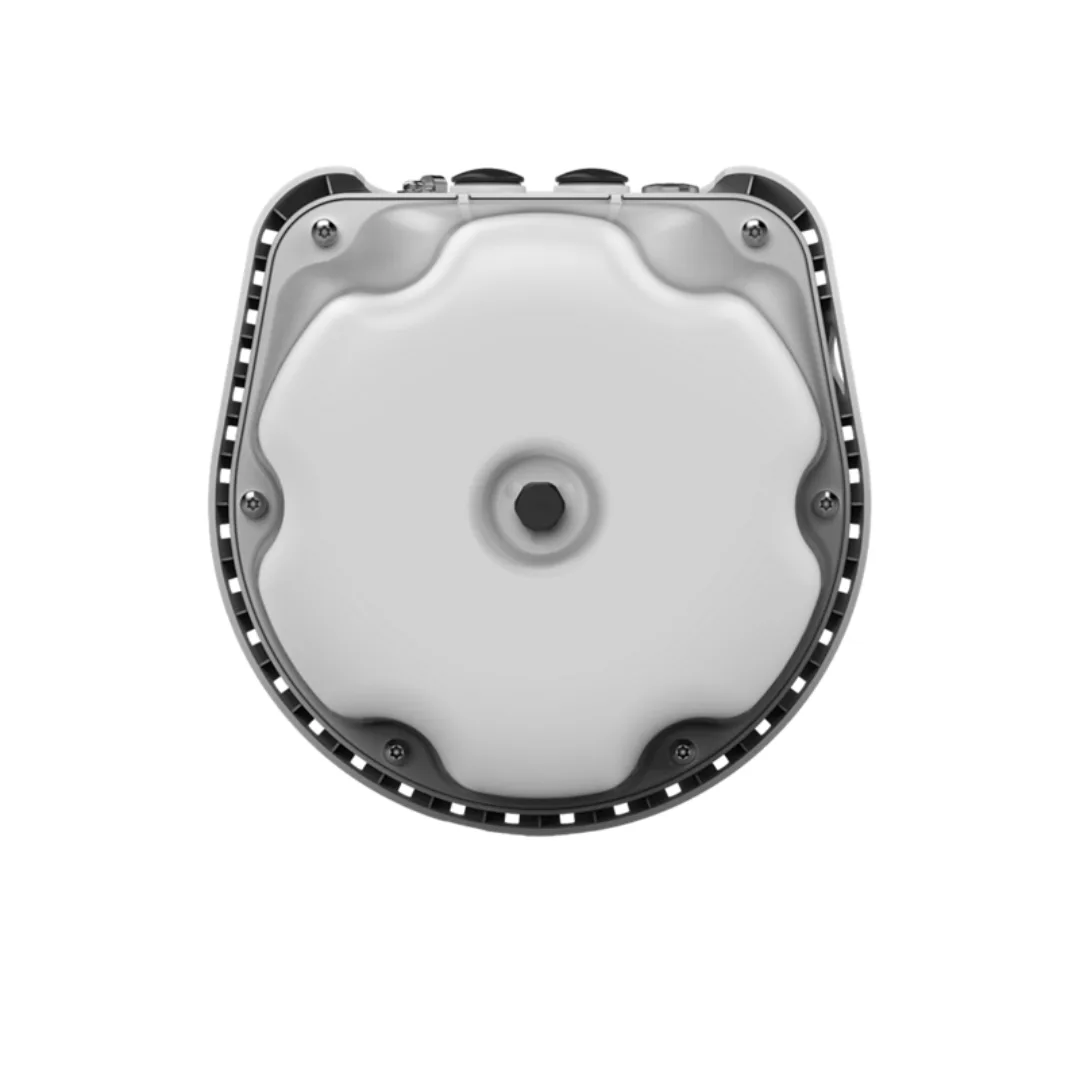

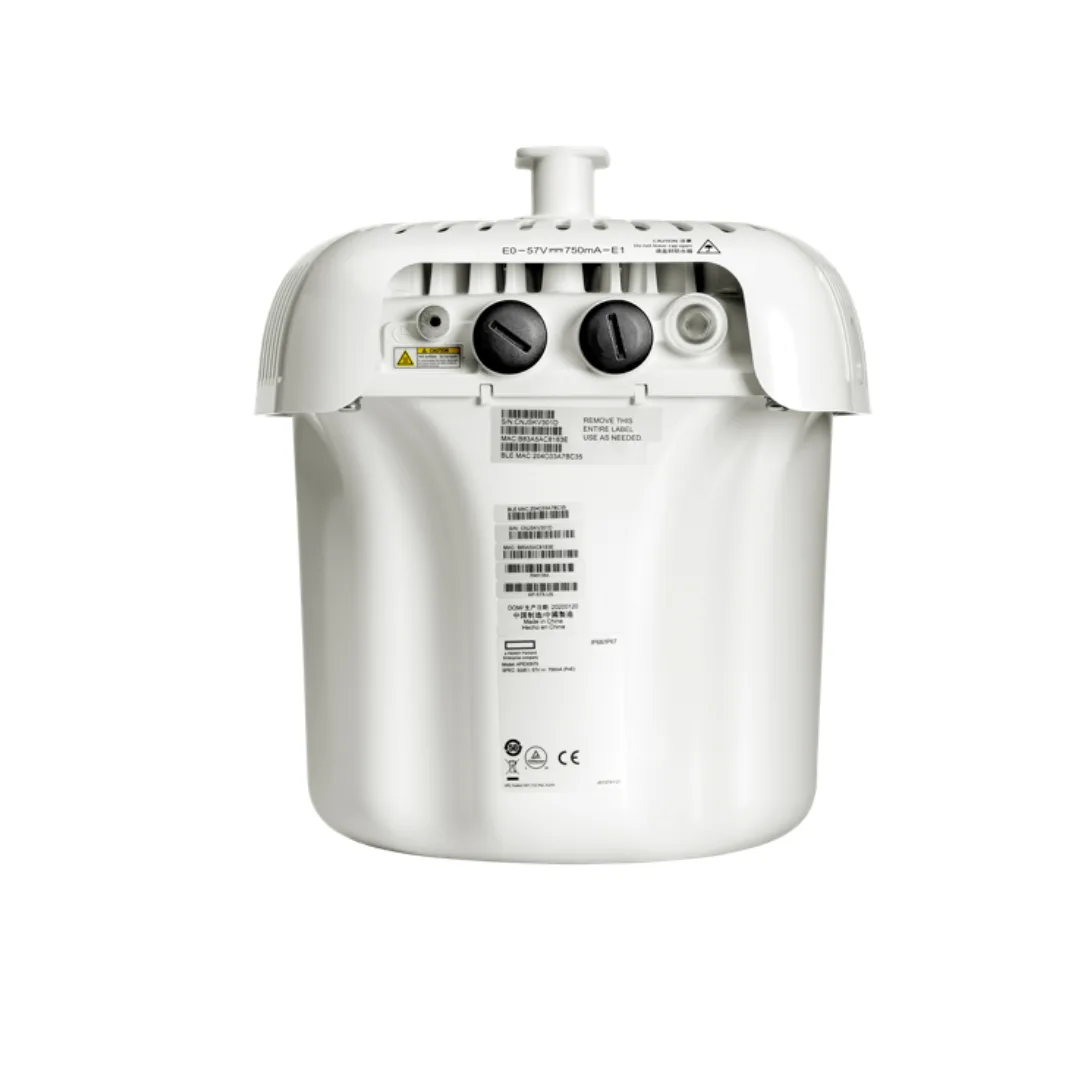

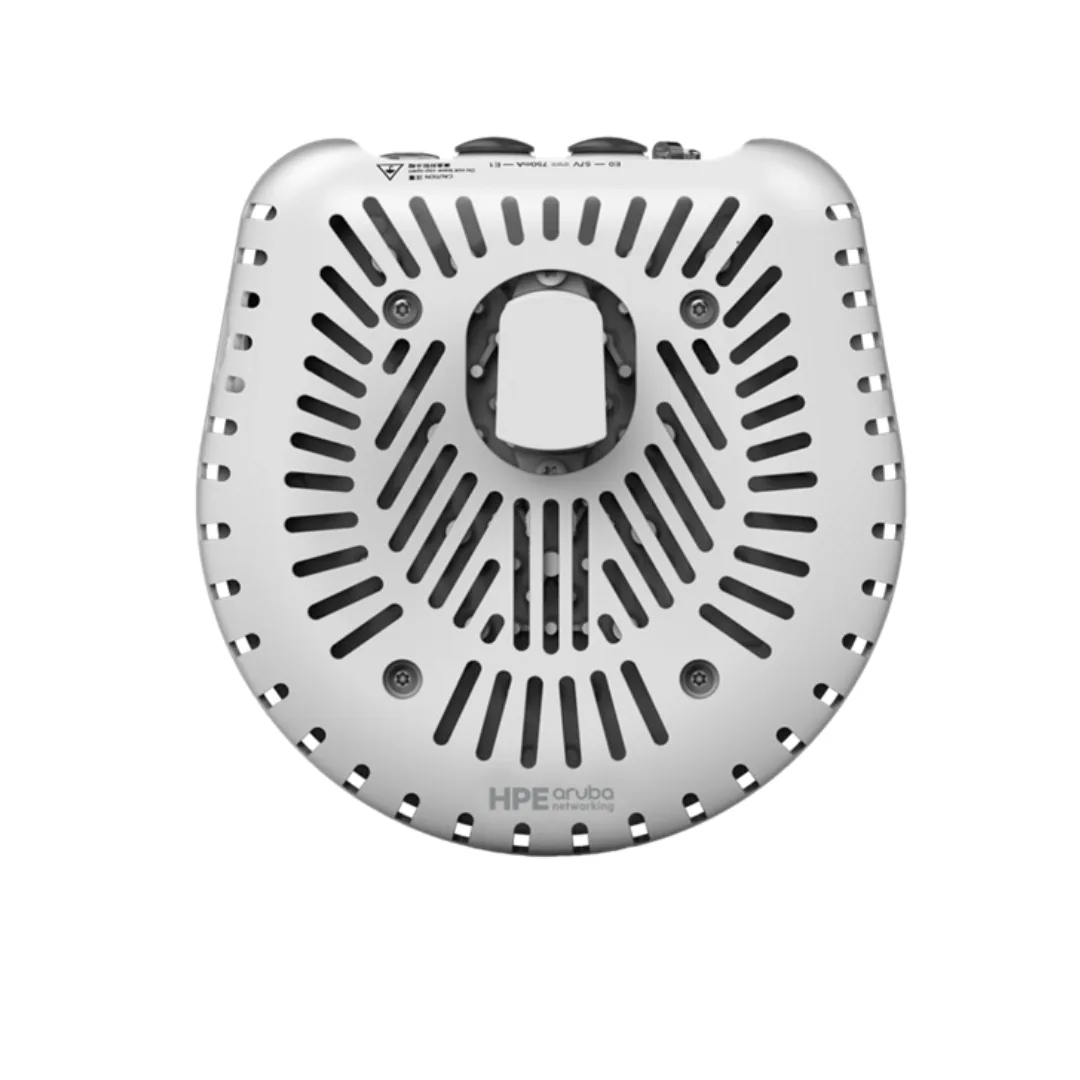

White rectangular outdoor access point with integrated omni antennas 27 by 24 by 23 cm

HPE Aruba Networking

HPE Aruba Networking AP-575 R4H18A outdoor access point

SKU CH-YE6P-DW48V MPN R4H18A

Outdoor Wi-Fi 6 access point with integrated omni antennas, Bluetooth 5 and Zigbee IoT radio, hardened for -40 °C to +65 °C operation

  • WiFi GenerationWi-Fi 6
  • AntennaBuilt-in omni-directional antennas: 5 GHz (4.6 dBi), 2.4 GHz
  • Operating RangeAP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIM
  • Max Power ConsumptionMaximum power consumption: PoE powered (dual ports): 32.0W P
  • CertificationsCB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance
  • ComplianceFCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 20

Model AP-575

  • Operates from -40 °C to +65 °C for harsh outdoor deployments
  • Built-in omni antennas deliver 4.6 dBi at 5 GHz and 4.0 dBi at 2.4 GHz
  • Wi-Fi 6 with 4x4 MIMO on 5 GHz and 2x2 MIMO on 2.4 GHz provides high-density throughput
  • Integrated IoT radio supports Bluetooth 5 and Zigbee plus USB for third-party sensors
  • Railway certifications EN 50155 and EN 50121-1 plus UL 2043 plenum rating ensure regulated-environment compliance

Outdoor Wi-Fi 6 access point

The HPE Aruba Networking AP-575 R4H18A is a purpose-built outdoor hardened access point for organisations that need reliable wireless coverage in exposed environments. It serves campuses, industrial sites and transport hubs where consumer-grade hardware would fail.

Dual-radio design with integrated antennas

The unit combines a 5 GHz 4x4 MIMO radio and a 2.4 GHz 2x2 MIMO radio behind built-in omni-directional antennas rated at 4.6 dBi and 4.0 dBi respectively. A single PoE connection delivers full function at 26.1 W while dual PoE raises the ceiling to 32.0 W, and an integrated USB port plus Bluetooth 5 and Zigbee IoT radio allow third-party sensor expansion without extra cabling.

Sustained operation from -40 °C to +65 °C

The enclosure is fully sealed against moisture, precipitation and airborne contaminants and meets EN 50155 and EN 50121 railway certifications alongside CB Scheme Safety and UL 2043 plenum rating. Maximum idle draw sits at 14.0 W on single PoE or 16.0 W on dual PoE, and industrial-grade surge protection on every electrical interface ensures continuous service during prolonged exposure to extreme temperatures and electrical noise.

Highlights

  • Operates from -40 °C to +65 °C for harsh outdoor deployments
  • Built-in omni antennas deliver 4.6 dBi at 5 GHz and 4.0 dBi at 2.4 GHz
  • Wi-Fi 6 with 4x4 MIMO on 5 GHz and 2x2 MIMO on 2.4 GHz provides high-density throughput
  • Integrated IoT radio supports Bluetooth 5 and Zigbee plus USB for third-party sensors
  • Railway certifications EN 50155 and EN 50121-1 plus UL 2043 plenum rating ensure regulated-environment compliance

Specifications

BrandHPE Aruba Networking
Series570 Series
ModelAP-575
Part NumberR4H18A
WiFi GenerationWi-Fi 6
AntennaBuilt-in omni-directional antennas: 5 GHz (4.6 dBi), 2.4 GHz (4.0 dBi)
Operating RangeAP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) 5 GHz
Max Power ConsumptionMaximum power consumption:
PoE powered (dual ports): 32.0W
PoE powered (single port, full function): 26.1W
Maximum power consumption in idle mode: 14.0W (single PoE) or 16.0W (dual PoE)
Maximum power consumption in deep-sleep mode: 2.9W (single PoE) or 3.9W (dual PoE)
CertificationsCB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance certified 802.11a/b/g/n/
Wi-Fi CERTIFIED™ 6 (802.11ax)
Wi-Fi CERTIFIED™ ac (with Wave 2 features)
Passpoint® (Release 2) with HPE Aruba Networking Operating System and Instant Wi-Fi CERTIFIED Location™
ComplianceFCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
IEC/EN/UL 62368-1
EN 60601-1-1, EN60601-1-2
Railway Certs:
EN 50155:2017-Railway Applications
EN 50121-1:2017-Railway EMC
EN 50121-3-2-Railway EMC
EN 50121-4:2016-Railway Immunity
IEC 61373 ed2:2008-Railway Shock and Vibration
Dimensions27 x 24 x 23 cm
Weight2.4 Kg
Shipping weight3.99 kg
Package size356 × 305 × 279 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What power level does the AP-575 need when both PoE ports are active?

The AP-575 draws up to 32.0W when powered through dual PoE ports at full function.

How hot can the AP-575 operate before it hits its thermal limit?

The AP-575 is rated for continuous operation up to +65°C in full sun.

Which mounting hardware must be sourced separately for the R4H18A?

The R4H18A ships without mounting brackets; compatible pole or wall kits are sold separately.
