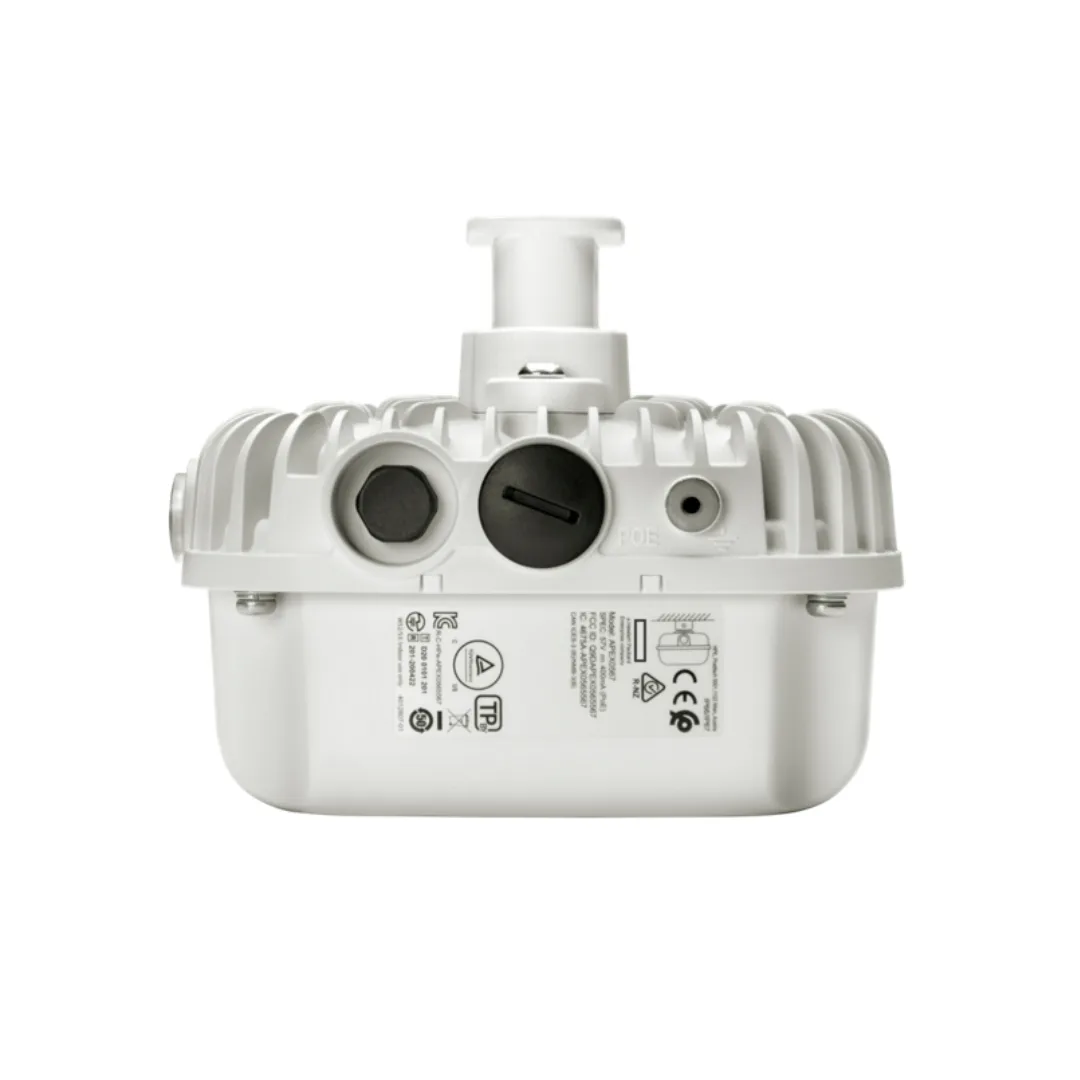

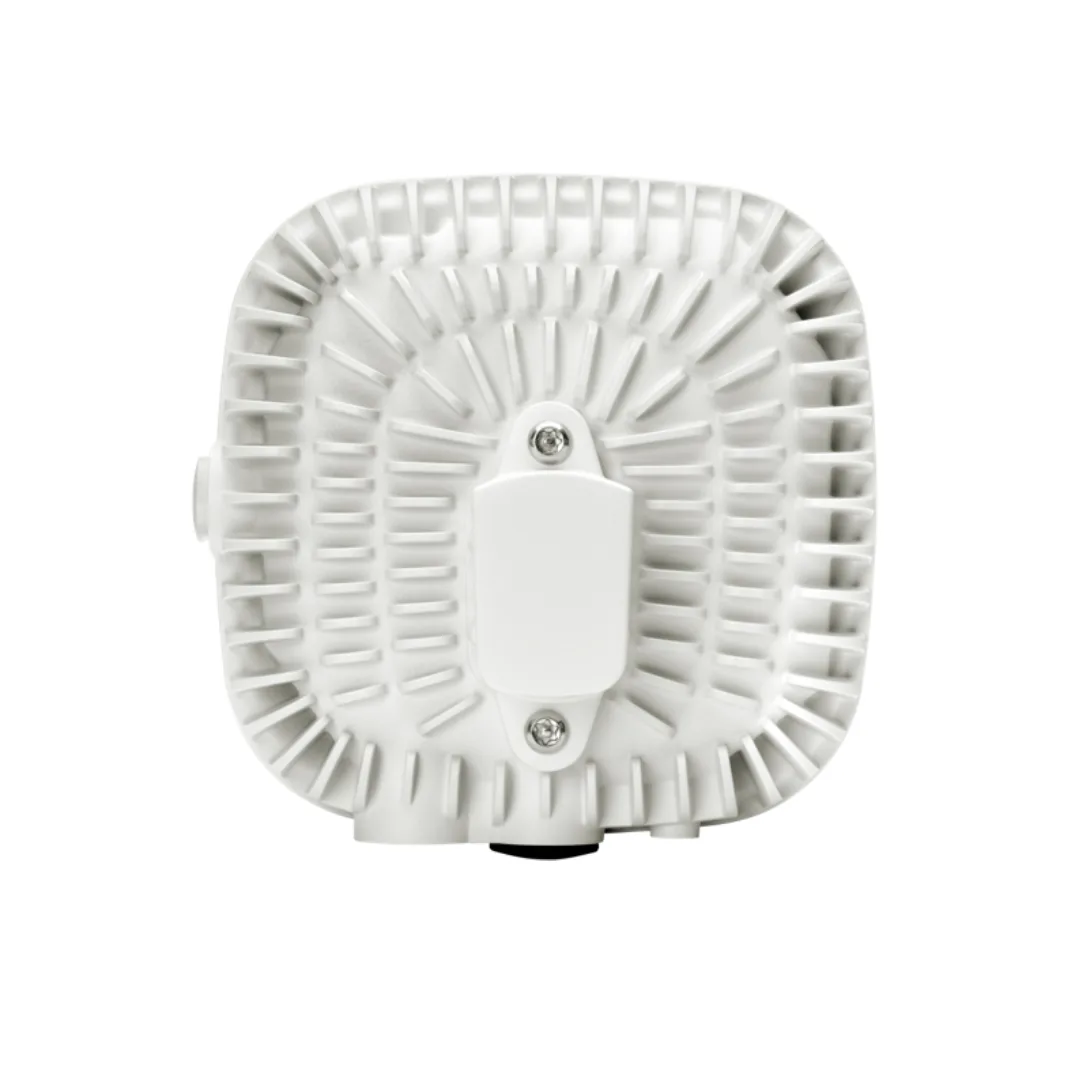

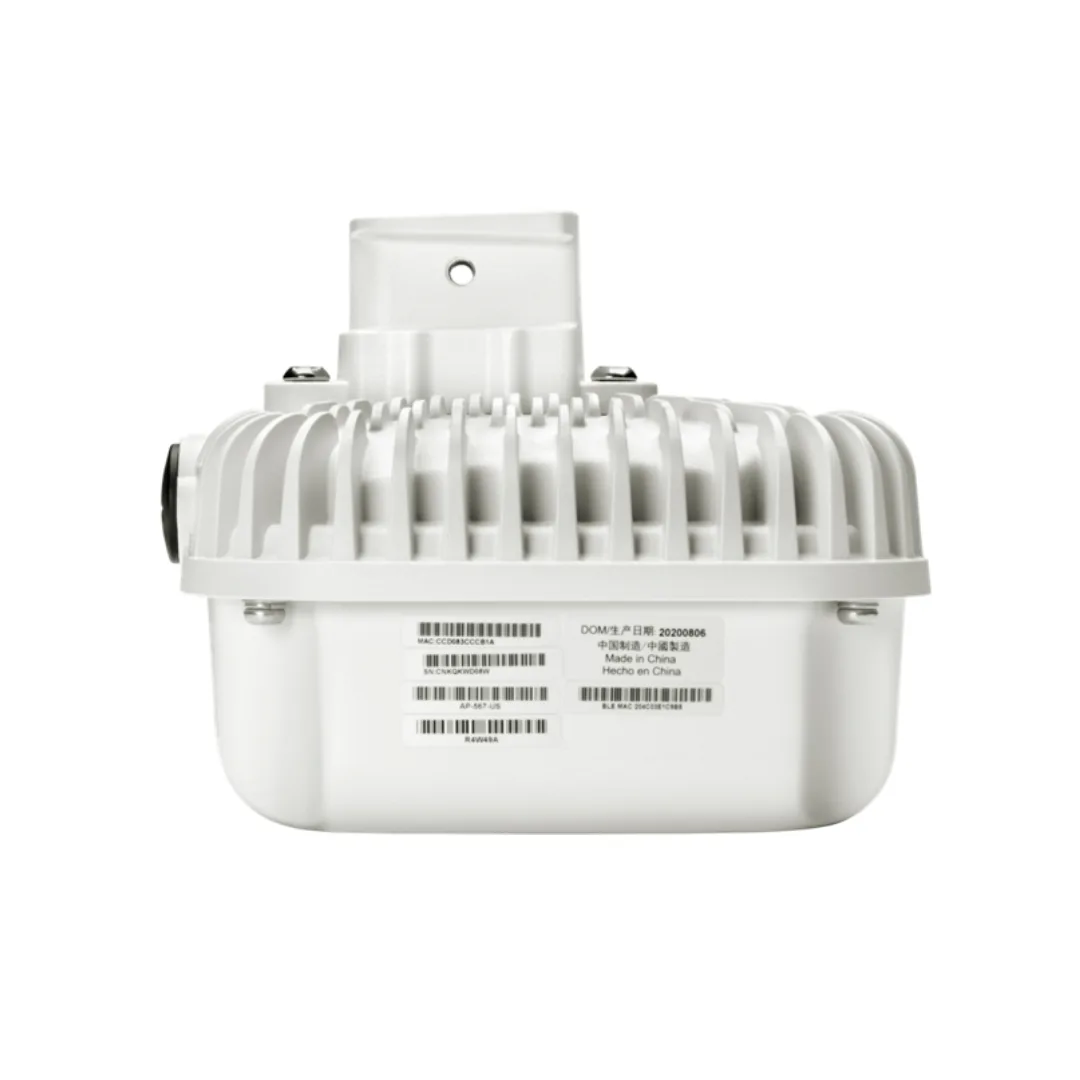

White square outdoor access point with integrated directional antennas, 16.5 cm sides

HPE Aruba Networking

HPE Aruba Networking AP-567 R4W49A access point

SKU CH-BDEH-MZG51 MPN R4W49A

Outdoor-hardened Wi-Fi 6 access point with dual 2x2 radios, integrated directional antennas and Bluetooth 5 IoT radio

  • StandardsWi-Fi 6 (IEEE 802.11ax) Bluetooth 5 and 802.15.4 radio 2.4 G
  • WiFi GenerationWi-Fi 6
  • AntennaBuilt-in 90°H x 90°V directional antennas with 6.7 dBi gain,
  • Mounting LocationIndoor
  • Operating RangeAP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIM
  • InterfaceE0: 10/100/1000BASE-T (RJ-45)

Model AP-567

  • Outdoor-hardened design withstands tough environments
  • Wi-Fi 6 dual 2x2 radios deliver high-efficiency connectivity
  • Integrated directional antennas focus coverage where needed
  • Bluetooth 5 and Zigbee radio enables IoT deployments
  • Low power draw reduces operating costs

Outdoor hardened AP-567

The HPE Aruba Networking AP-567 is a Wi-Fi 6 outdoor hardened access point built for directional coverage in demanding environments. It targets network engineers deploying campus, venue or industrial wireless where focused 90°H x 90°V patterns and integrated IoT radios simplify infrastructure.

Verify PoE budget and mounting

Confirm your switching infrastructure can deliver up to 15.6 W per port for the RJ-45 10/100/1000BASE-T interface. The unit requires a compatible pole or wall bracket rated for 1.09 kg and must meet local outdoor electrical codes; power sources are sold separately.

Replaces omnidirectional outdoor APs

This model upgrades installations that previously used omnidirectional outdoor units when sectorised coverage reduces co-channel interference. The jump is worth it when Bluetooth 5 and Zigbee IoT services are needed alongside client Wi-Fi in the same hardened enclosure.

Highlights

  • Outdoor-hardened design withstands tough environments
  • Wi-Fi 6 dual 2x2 radios deliver high-efficiency connectivity
  • Integrated directional antennas focus coverage where needed
  • Bluetooth 5 and Zigbee radio enables IoT deployments
  • Low power draw reduces operating costs

Specifications

BrandHPE Aruba Networking
Series560 Series
ModelAP-567
Part NumberR4W49A
StandardsWi-Fi 6 (IEEE 802.11ax)
Bluetooth 5 and 802.15.4 radio
2.4 GHz–Bluetooth 5: up to 8 dBm transmit power and -95 dBm receive sensitivity
Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity
Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
WiFi GenerationWi-Fi 6
AntennaBuilt-in 90°H x 90°V directional antennas with 6.7 dBi gain, max, for 5 GHz antennas and 7.0 dBi gain, max, for 2.4 GHz antennas
Mounting LocationIndoor
Operating RangeAP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
InterfaceE0: 10/100/1000BASE-T (RJ-45)
Max Power ConsumptionMaximum power consumption: 15.6W
Maximum power consumption in idle mode: 4.2W
Maximum power consumption in deep-sleep mode: 1.7
Power sources sold separately
CertificationsCB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance certified 802.11a/b/g/n/
Wi-Fi Alliance certified Wi-Fi 6 (802.11ax)
Wi-Fi CERTIFIED™ ac (with wave 2 features)
Wi-Fi CERTIFIED Location™
ComplianceFCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
IEC/EN/UL 62368-1
EN 60601-1-1, EN60601-1-2
Railway Certs:
EN 50155:2017-Railway Applications
EN 50121-1:2017-Railway EMC
EN 50121-3-2-Railway EMC
EN 50121-4:2016-Railway Immunity
IEC 61373 ed2:2008-Railway Shock and Vibration
Dimensions16.5x16.5x11 cm
Weight1.09Kg
Shipping weight2.72 kg
Package size254 × 248 × 175 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the AP-567 R4W49A include a power supply or PoE injector in the box?

Power sources are sold separately; the unit requires an external PoE source or compatible power adapter to operate.

The R4W49A is listed as a 560 Series Wi-Fi 6 outdoor AP — what distinguishes this model from other 560 Series units?

This model features integrated 90° directional antennas with 6.7 dBi gain at 5 GHz and 7.0 dBi at 2.4 GHz, dual 2x2 radios, and an IoT radio for Bluetooth 5 and 802.15.4.

What real-world throughput can I expect from the dual 2x2 radios once the AP-567 is mounted outdoors?

The dual 2x2 radios support Wi-Fi 6 features such as OFDMA and MU-MIMO; actual throughput depends on channel width, client mix, interference and the PoE power budget available.
