White square ceiling-mount access point with four RP-SMA antenna connectors and two Ethernet ports

HPE Aruba Networking

HPE Aruba Networking AP-514 Q9H58A Wi-Fi 6 access point

SKU CH-3BD8-TKSTV MPN Q9H58A

Dual-radio Wi-Fi 6 access point with 2.69 Gbps peak rate, OFDMA, WPA3 security, Bluetooth 5 and Zigbee, plus 2.5 GbE and 1 GbE ports for indoor ceiling or wall mounting

  • Standards802.11ax
  • WiFi GenerationWi-Fi 6
  • Device ManagementOn-premises; Public Cloud; Virtual Private Cloud (VPC); as a
  • Wireless Data RatesMax bandwidths and peak data rate per band: 20/40 (2.4 GHz),
  • Frequency Band2.40 GHz 5 GHz
  • AntennaFour RP-SMA connectors for external dual-band antennas.

Model AP-514

  • Wi-Fi 6 delivers up to 2.69 Gbps combined throughput for high-density environments
  • OFDMA and WPA3 with Enhanced Open boost multi-user efficiency and security
  • Bluetooth 5 and Zigbee support enable IoT deployments without extra hardware
  • Dual Ethernet ports at 2.5 Gbps and 1 Gbps provide fast wired backhaul and PoE flexibility
  • UL2043 plenum rating allows safe installation in ceiling air-handling spaces

510 Series Wi-Fi 6 access point

The HPE Aruba Networking AP-514 is a dual-radio indoor access point built for enterprise environments that need high-density Wi-Fi 6 connectivity. It supports on-premises, cloud and as-a-service management options, giving IT teams flexibility in how they deploy and operate the wireless network.

External antenna connectors and dual Ethernet ports

Four RP-SMA connectors let you attach the external dual-band antennas that suit the coverage pattern of each installation. The wired uplink combines a 2.5 Gbps Ethernet port with a 1 Gbps port, while a USB port and a management port provide additional integration options for IoT and out-of-band control.

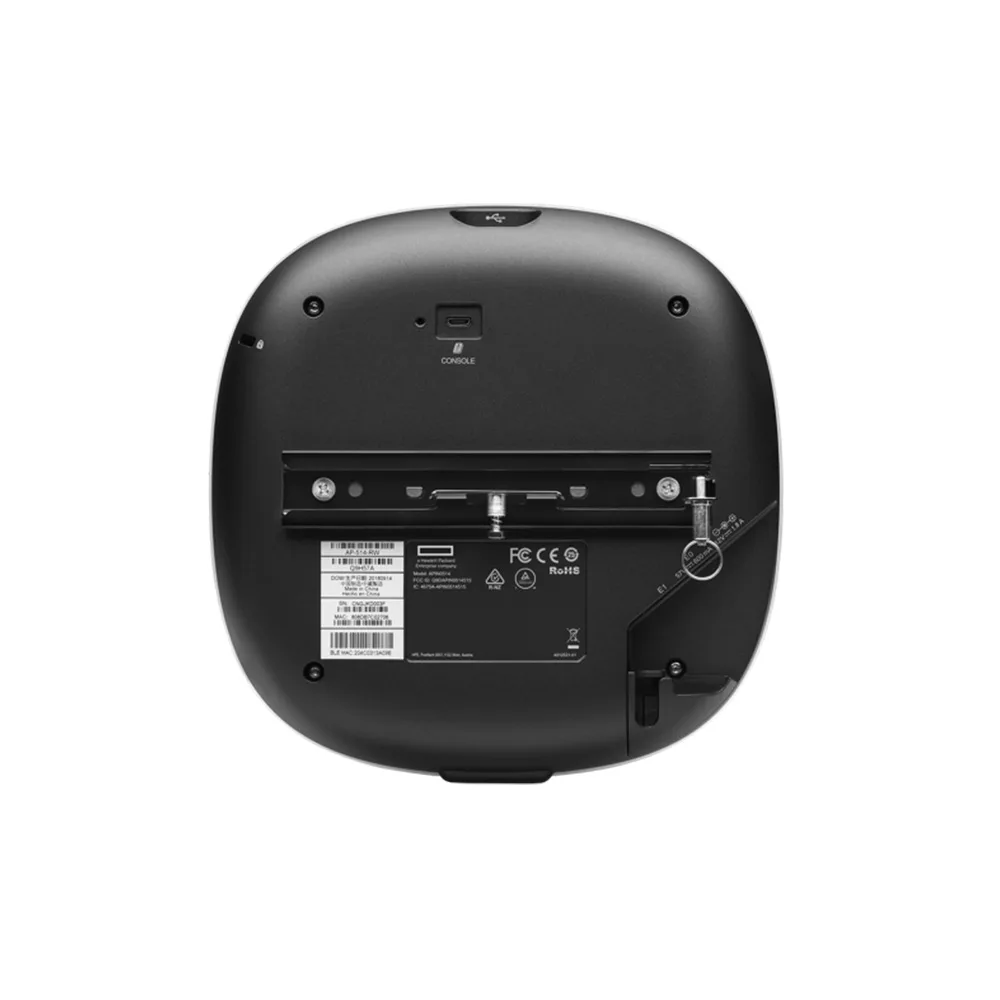

Ceiling rail or wall mounting with plenum rating

The unit measures 1.8 inches high by 7.9 inches wide and deep and weighs approximately 1.79 lb, so verify that the chosen ceiling tile rail or wall surface can accommodate those dimensions. A UL2043 plenum rating allows placement in air-handling spaces, but confirm local fire-code requirements before mounting. PoE-powered operation means no separate power outlet is needed at the AP location.

Highlights

  • Wi-Fi 6 delivers up to 2.69 Gbps combined throughput for high-density environments
  • OFDMA and WPA3 with Enhanced Open boost multi-user efficiency and security
  • Bluetooth 5 and Zigbee support enable IoT deployments without extra hardware
  • Dual Ethernet ports at 2.5 Gbps and 1 Gbps provide fast wired backhaul and PoE flexibility
  • UL2043 plenum rating allows safe installation in ceiling air-handling spaces

Specifications

BrandHPE
Series510 Series
ModelAP-514
Part NumberQ9H58A
Standards802.11ax
WiFi GenerationWi-Fi 6
Device ManagementOn-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Wireless Data RatesMax bandwidths and peak data rate per band: 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps.
Frequency Band2.40 GHz 5 GHz
AntennaFour RP-SMA connectors for external dual-band antennas.
Mounting LocationIndoor
InterfaceWired Network Interface: 1 x 2.5GbE, 1 x 1GbE
CertificationsUL2043 plenum rating
Bluetooth SIG WiFi Alliance®: WiFi CERTIFIED® a, b, g, n, ac, ax
WPA, WPA2 and WPA3,
Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile
Multiband Wi-Fi CERTIFIED Location
ComplianceFCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2
Shipping weight1.09 kg
Package size230 × 220 × 90 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the four RP-SMA external antenna connectors need periodic inspection or replacement?

The four RP-SMA connectors are built for the life of the AP-514; no scheduled antenna-port maintenance is required.

Which wired link caps throughput first when the 5 GHz radio runs at 160 MHz channel width?

The 2.5 GbE uplink limits sustained throughput before the 5 GHz radio reaches its 2.69 Gbps peak.

How much heat does the ceiling-mount AP-514 produce when both radios and both Ethernet ports run continuously?

The unit draws up to 30 W via PoE, so all consumed power becomes heat in the plenum space.
