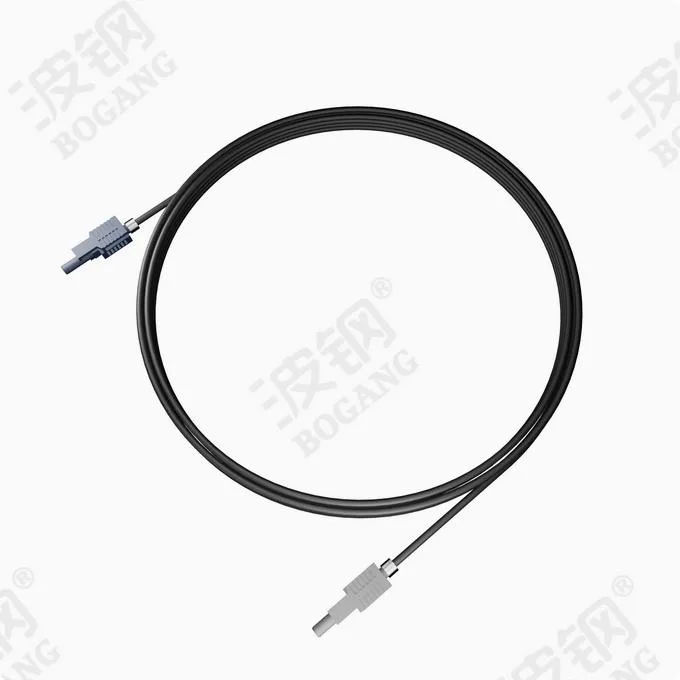

Black single-core plastic optical fibre cable 30m with 2.2mm PMMA jacket

Enfain

Enfain 4503-4513Z fibre optic cable 30m

SKU CH-QCE3-T8W76

Single-core plastic optical fibre patch cord, 30 m long with 1.0 mm core and 2.2 mm PMMA jacket, operating at 650 nm or 530 nm with 0.50 numerical aperture and tensile strength over 70 N from -55 °C

Length 30m

  • Large bandwidth and EMI immunity for clean signals
  • PMMA jacket resists wear and corrosion for durability
  • Operates from -55 °C to +85 °C in harsh environments
  • 0 mm core with 0.50 NA supports 650 nm or 530 nm links
  • Tensile strength above 70 N ensures reliable installation

Single-core plastic optical fibre

This single-core plastic optical fibre cable runs 30 metres and uses a 1.0 mm core within a 2.2 mm PMMA jacket. It operates at 650 or 530 nm wavelengths with a numerical aperture of .50 and a tensile strength above 70 N. The black outer sheath resists wear and corrosion across a -55 to +85 °C range.

Integration into high-voltage and medical links

The non-conductive POF construction eliminates electromagnetic interference, making it suited for ABB high-voltage frequency converters and servo drives as well as medical equipment. No electrical isolation components are needed around the cable, freeing space in cabinets and removing ground-loop concerns. Simple polishing and push-on connectors allow quick installation without ongoing maintenance.

Capacity and headroom

The .50 numerical aperture and low joint loss support reliable data transmission over the full 30 metre length at the specified wavelengths. Temperature extremes from -55 to +85 °C do not degrade the optical path. The single-core design does not carry multiple channels, so applications requiring parallel fibres or higher bandwidth density will need a different cable type.

Highlights

  • Large bandwidth and EMI immunity for clean signals
  • PMMA jacket resists wear and corrosion for durability
  • Operates from -55 °C to +85 °C in harsh environments
  • 0 mm core with 0.50 NA supports 650 nm or 530 nm links
  • Tensile strength above 70 N ensures reliable installation

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum tensile strength the 4503-4513Z cable can withstand during installation?

The cable has a tensile strength greater than 70N, allowing it to handle pulling forces during routing without damaging the 1.0 mm core.

How much heat can the PMMA jacket tolerate in continuous operation?

The operating temperature range spans -55 to +85 degrees Celsius, so the cable remains stable in high-temperature industrial environments.

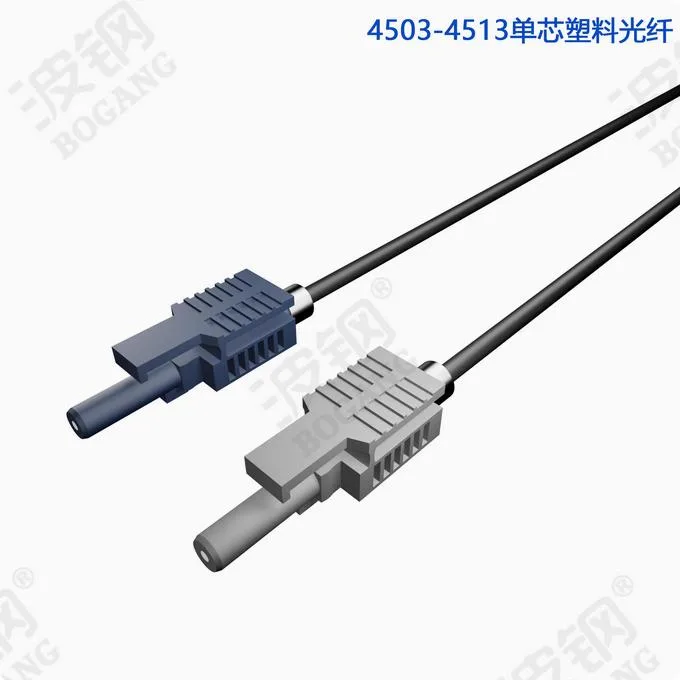

Which connector interfaces are required to terminate the 2.2 mm diameter fibre?

The 2.2 mm finished diameter fits standard HFBR series connectors designed for 1.0 mm plastic optical fibre cores.
