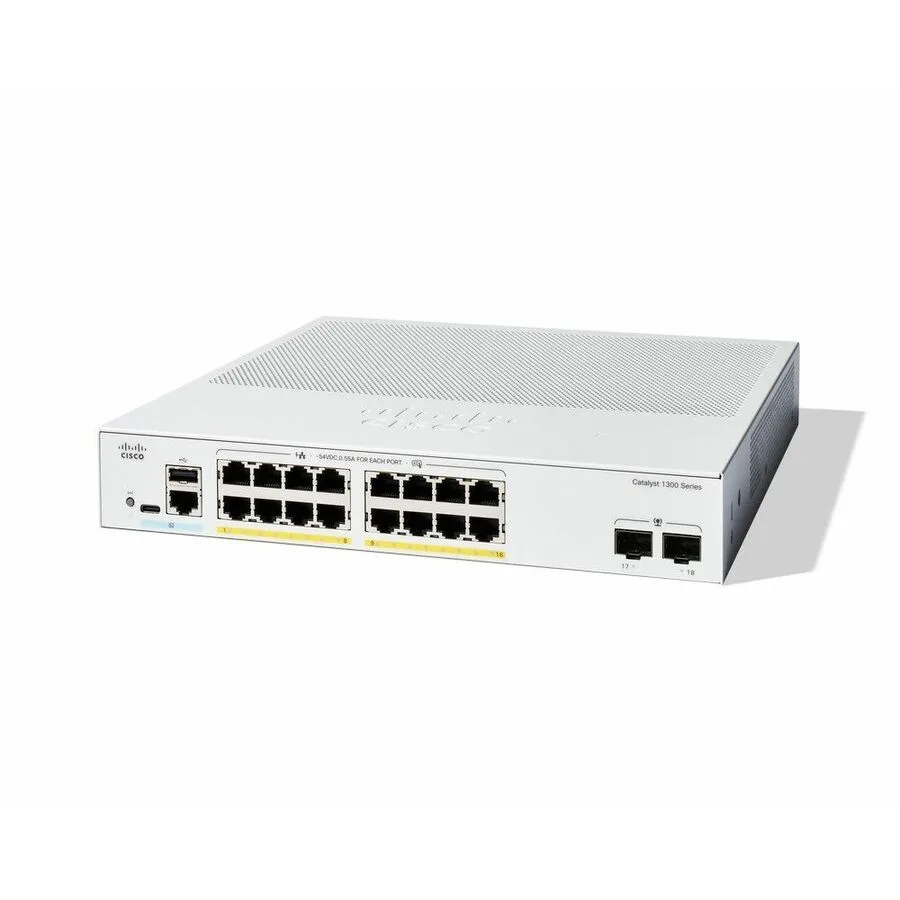

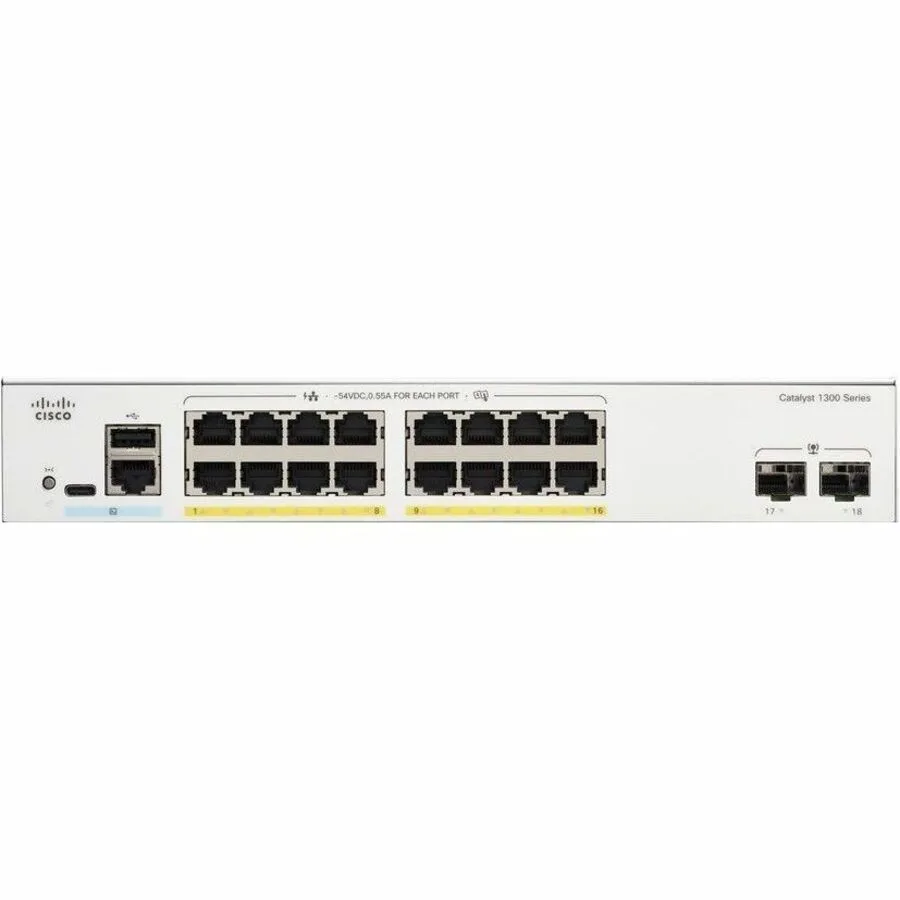

Silver 1U rack-mount switch with 16 RJ45 ports and two SFP slots

Cisco Systems, Inc.

Cisco Systems, Inc. C1300-16P-2G network switch

SKU CH-DADJ-Y3A3D MPN C1300-16P-2G

Managed 16-port Gigabit PoE+ switch with two SFP uplinks, Layer 3 routing and 120 W power budget

  • FormatRail-mountable
  • StandardsLayer Supported: 3 Networking Standards: IEEE 802.1x IEEE 80
  • Network MediaMedia Type Supported: Optical Fiber Twisted Pair Ethernet Te
  • Network Management TypeManaged
  • Uplink InterfaceTotal Number of Expansion Slots: 2.0 Expansion Slot Type: SF
  • Primary Ports16 x RJ45 + 2 x SFP

Ports 16x 10/100/1000 RJ45 · 2G SFP

PoE · Non-PoE PoE

Power Budget 120W

  • Layer 3 routing enables scalable network design
  • 16 PoE+ ports power devices with 120 W budget
  • Two SFP uplink slots support fiber connectivity
  • Fanless 1U rack-mountable design saves space
  • Managed switch supports IEEE 802.3af/at PoE standards

16-port PoE+ Gigabit switch

The Cisco Catalyst C1300-16P-2G is a managed Layer 3 Ethernet switch with sixteen Gigabit RJ-45 ports that deliver PoE+ power. Two SFP uplink slots provide fiber connectivity for uplink or stacking links. The fanless, 1U rack-mountable chassis operates on 120 V or 230 V AC mains.

Ideal for small enterprise LANs

Suits offices that need to power IP phones, wireless access points or cameras through the network cable while routing between VLANs at wire speed. Buyers who need a higher PoE budget for many class 4 devices, or who require 10 Gbps uplinks, should consider other models.

120 W PoE budget

The switch allocates up to 120 W across all sixteen PoE+ ports, limiting the number of full 30 W endpoints that can run simultaneously. Calculate the total draw of your powered devices before deployment.

Highlights

  • Layer 3 routing enables scalable network design
  • 16 PoE+ ports power devices with 120 W budget
  • Two SFP uplink slots support fiber connectivity
  • Fanless 1U rack-mountable design saves space
  • Managed switch supports IEEE 802.3af/at PoE standards

Specifications

BrandCisco Systems, Inc
SeriesCatalyst
Part NumberC1300-16P-2G
FormatRail-mountable
StandardsLayer Supported:
3
Networking Standards:
IEEE 802.1x
IEEE 802.3az
IEEE 802.3ad
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
IEEE 802.3af
IEEE 802.3at
IEEE 802.1p
IEEE 802.11ac
IEEE 802.1Q
IEEE 802.1ab
Network MediaMedia Type Supported:
Optical Fiber
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-X
10/100/1000Base-T
Network Management TypeManaged
Uplink InterfaceTotal Number of Expansion Slots:
2.0
Expansion Slot Type:
SFP (mini-GBIC)
Shared SFP Slot:
Yes
Number of SFP Slots:
2
Primary Ports16 x RJ45 + 2 x SFP
Primary Port TypeTotal Number of Network Ports:
16
Uplink Port:
Yes
Modular:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
16 x Gigabit Ethernet PoE+
2 x Gigabit Ethernet Expansion Slot
PoEYes
Layer3
PoE Power Budget120
PowerPoE (RJ-45) Port:
Yes
PoE Budget:
120 W
Input Voltage:
120 V AC
230 V AC
Frequency:
50 Hz
60 Hz
Power Source:
Power Supply
AC
Number of Power Supplies Installed:
1
Power Consumption:
154.50 W
DimensionsHeight:
1.7"
Width:
10.6"
Depth:
11.7"
WeightWeight (Approximate):
5.25 lb
Shipping weight4.17 kg
Package size409 × 399 × 109 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the C1300-16P-2G is operating correctly after initial configuration?

Check that all 16 RJ-45 ports show link LEDs for connected devices, confirm the two SFP uplink slots report active 1000Base-X links, and verify the management interface reports Layer 3 routing tables and a PoE budget draw within the 120 W limit.

What ships with the switch and which items must be purchased separately?

The unit includes the 1U rack-mountable chassis with one internal AC power supply (120/230 V, 50/60 Hz), mounting brackets, and a console cable; SFP transceivers for the two uplink slots and any patch cords or fiber cables are not included.

Which uplink module should I select for the two SFP expansion slots?

Choose SFP (mini-GBIC) transceivers rated for 1000Base-X to match the Gigabit Ethernet uplink interfaces; the slots are shared so each accepts a single 1 Gbps fiber or copper module depending on your link distance and media type.
