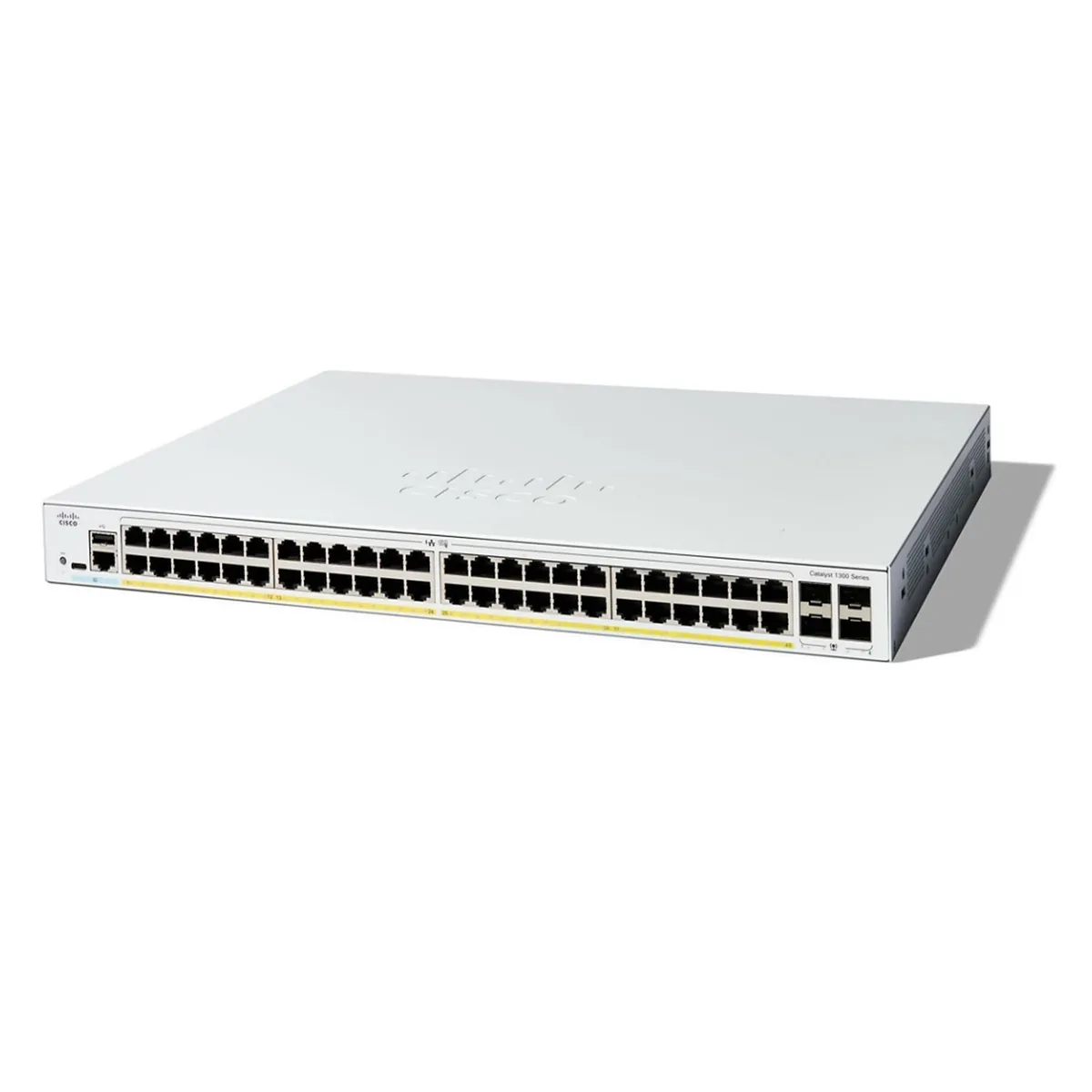

Silver 1U rack-mount switch with 48 RJ45 ports and 4 SFP slots

Cisco Systems, Inc.

Cisco Systems, Inc. C1300-48P-4G network switch 48 PoE+ 370W 4 SFP

SKU CH-TZ7Y-3DRHZ MPN C1300-48P-4G

Managed Layer 3 switch with 48 PoE+ ports, 370 W budget and 4 SFP uplinks for fibre or copper expansion

  • FormatRackmount
  • StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Et
  • Network MediaMedia Type Supported: Optical Fiber Twisted Pair Ethernet Te
  • Network Management TypeManaged
  • Primary Ports48 x RJ45 + 4 x SFP
  • Management InterfaceCisco Business Dashboard: Support for embedded probe for Cis

Ports 48x 10/100/1000 RJ45 · 4G SFP

PoE · Non-PoE PoE

Power Budget 370W

  • 48 PoE+ ports power devices with 370 W budget
  • Layer 3 routing handles up to 990 IPv4 routes
  • Managed via Cisco Business Dashboard with embedded probe
  • 4 SFP uplinks support fibre and copper media
  • 1 U rack-mount design fits standard cabinets

48-port PoE+ Layer 3 switch

The Cisco Catalyst C1300-48P-4G is a rack-mountable managed switch delivering 48 Gigabit RJ45 ports with 30 W PoE+ each and a 370 W total power budget. Four SFP uplink slots support fibre or copper transceivers for flexible backbone links. Layer 3 routing handles up to 990 IPv4 routes and 128 IP interfaces for scalable network design.

Suited for wired enterprise access

This switch fits offices deploying IP phones, wireless APs and cameras that draw up to 30 W per port. It also serves networks needing 16 000 MAC entries, 4 094 VLANs and 9 000-byte jumbo frames. Sites requiring more than 370 W of PoE power or 10 Gbps uplinks should consider a different model.

370 W PoE+ power budget

The 370 W ceiling determines how many Class 4 devices can run simultaneously. With 48 ports each capable of 30 W, the budget covers a full complement of Class 3 devices but only a subset of Class 4 endpoints. Verify your total device draw before committing.

Highlights

  • 48 PoE+ ports power devices with 370 W budget
  • Layer 3 routing handles up to 990 IPv4 routes
  • Managed via Cisco Business Dashboard with embedded probe
  • 4 SFP uplinks support fibre and copper media
  • 1 U rack-mount design fits standard cabinets

Specifications

BrandCisco Systems, Inc
SeriesCatalyst
Part NumberC1300-48P-4G
FormatRackmount
StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet
Network MediaMedia Type Supported:
Optical Fiber
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
1000Base-X
Network Management TypeManaged
Primary Ports48 x RJ45 + 4 x SFP
Management InterfaceCisco Business Dashboard:
Support for embedded probe for Cisco Business Dashboard running on the switch.
Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard Probe onsite.
Cisco Business mobile app:
Mobile app for Cisco Business and Catalyst 1200 and 1300/X switches and wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips.
Cisco Network Plug and Play (PnP) agent:
The Cisco Network PnP solution provides a simple, secure, unified, and integrated offering to ease new branch or campus
Management FeatureRemote Monitoring (RMON):
Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis.
IPv4 and IPv6 dual stack:
Coexistence of both protocol stacks to ease migration.
Firmware upgrade:
Web browser upgrade (HTTP/HTTPS) and TFTP and upgrade over SCP running over SSH Dual images for resilient firmware upgrades.
Port mirroring:
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port.
VLAN mi
MAC Address Table16,000
VLAN SupportSupport for up to 4094 VLANs (4078 - 4094 are for internal usage) simultaneously
Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN
Management VLAN
Private VLAN with promiscuous, isolated, and community port
Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN
Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication
Customer premises equipment (CPE) VLAN
Auto surveillance VLAN (ASV)
Jumbo FramesFrame sizes up to 9000 bytes. The default MTU is 2000 bytes
Packet Forwarding RateCapacity in Millions of Packets Per Second (mpps) (64-byte packets): 77.38
Switching capacity in Gigabits per second (Gbps): 104.0
Buffer Memory1.5 MB
IPv4 FeaturesIPv4 routing
Wire-speed routing of IPv4 packets:
Up to 990 (Dynamic + Static) IPv4 routes and up to 128 IP interfaces in C1300
PoEYes
StackableYes
QoSPriority levels:
8 hardware queues
Scheduling:
Strict priority and Weighted Round-Robin (WRR)
Class of service:
Port-based, 802.1p VLAN priority-based, IPv4/IPv6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS
Queue assignment based on DSCP and Class of Service (802.1p/CoS)
Rate limiting:
Ingress policer; egress shaping and rate control per VLAN, per port, and flow based; dualrate 3-color (2R3C) policing
Congestion avoidance:
A TCP congestion avoidance algorithm is required to minimize and prevent glob
Layer3
Layer 2 FeaturesSpanning Tree Protocol
Port grouping/link aggregation
VLAN
Voice VLAN
Multicast TV VLAN
VLAN translation
Q-in-Q
Selective Q-in-Q
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)
Unidirectional Link
Detection (UDLD)
DHCP relay at Layer 2
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping
IGMP querier
IGMP proxy
Head-of-Line (HOL) blocking
Loopback detection
Shipping weight6.80 kg
Package size574 × 480 × 97 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 48 PoE+ ports power my older 802.3af access points alongside new 802.3at cameras without separate injectors?

The switch delivers up to 30 W per port under the 802.3at standard and maintains a 370 W total PoE budget, so legacy 802.3af devices and newer 802.3at devices can be mixed on the same 48 ports.

How can I verify the switch is forwarding traffic at line rate after racking it?

Check the RMON statistics group in the embedded probe or Cisco Business Dashboard for per-port packet counters and error rates; the hardware supports 77.38 mpps at 64-byte frames across the 104 Gbps fabric.

Does the box include SFP transceivers for the four uplink slots or must I purchase them separately?

The package contains the 1U switch with one internal AC power supply, rack-mount brackets and a console cable; the four SFP slots are empty and require separate 1000Base-X modules.
