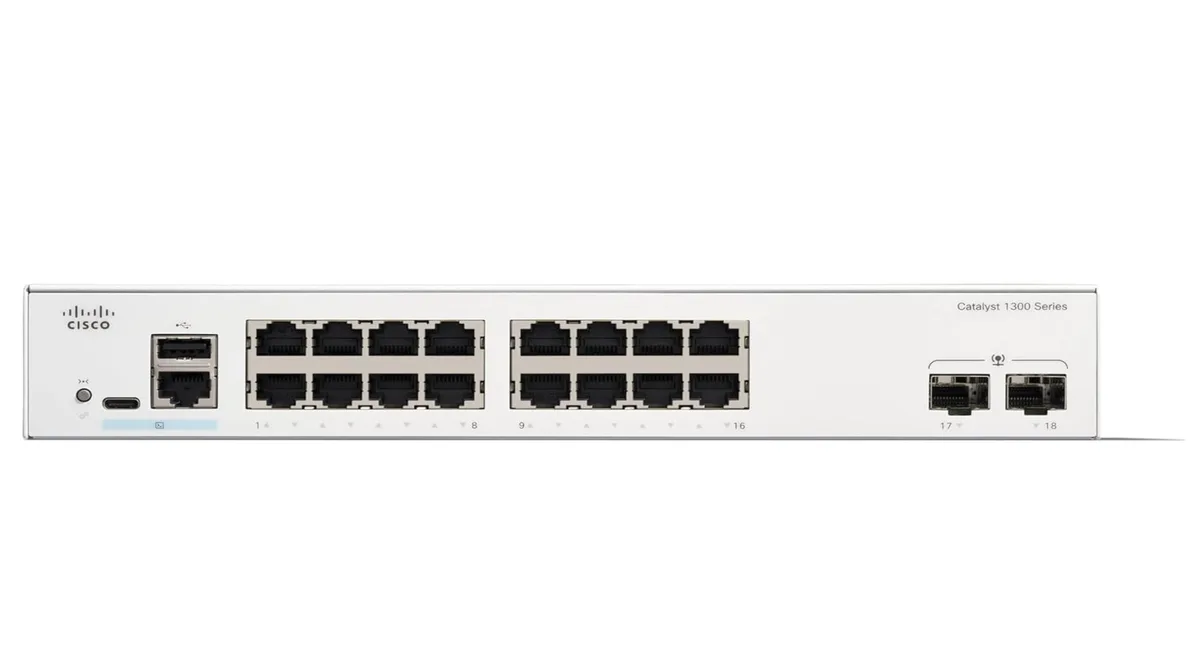

Silver rack-mountable 1U network switch with sixteen RJ45 ports and two SFP slots

Cisco Systems, Inc.

Cisco Systems, Inc. C1300-16T-2G 16-port network switch

SKU CH-VJYR-EB4CS MPN C1300-16T-2G

A manageable Gigabit Ethernet switch with 16 RJ-45 ports, two SFP uplinks and Layer 3 support in a 1U rack-mountable chassis

  • FormatRack-mountable
  • StandardsLayer Supported: 3 Networking Standards: IEEE 802.1x IEEE 80
  • Network MediaMedia Type Supported: Optical Fiber Twisted Pair Ethernet Te
  • Uplink InterfaceTotal Number of Expansion Slots: 2.0 Expansion Slot Type: SF
  • Primary PortsTotal Number of Network Ports: 16 Uplink Port: Yes Modular:
  • PowerInput Voltage: 120 V AC 230 V AC Frequency: 50 Hz 60 Hz Powe

Ports 16x 10/100/1000 RJ45 · 2G SFP

PoE · Non-PoE Non-PoE

Power Budget N/A

  • Layer 3 switching improves network routing efficiency
  • 16 Gigabit RJ-45 ports connect multiple wired devices
  • Two SFP uplink slots enable fiber expansion
  • Rack-mountable 1U design saves cabinet space
  • 37 W power consumption lowers energy costs

16-Port Gigabit Managed Switch

The Cisco Catalyst C1300-16T-2G is a rack-mountable Layer 3 switch with sixteen 10/100/1000Base-T ports and two SFP uplink slots. It supports twisted pair and optical fiber media for flexible campus or branch deployments. The 1U form factor fits standard racks and consumes 18.37 W under typical operation.

Best For Wired Access Layers

This switch suits network managers who need Layer 3 routing, IEEE 802.1x security, and PoE+ power budgeting for access points or IP phones. It is not for buyers who need higher port density, multi-gigabit speeds, or redundant power supplies.

Two SFP Uplink Slots

The dual SFP interfaces provide 1000Base-X uplinks for fiber backbones or direct server links. Shared SFP design means each slot replaces a copper port when populated. Verify your uplink distance and transceiver type before ordering.

Highlights

  • Layer 3 switching improves network routing efficiency
  • 16 Gigabit RJ-45 ports connect multiple wired devices
  • Two SFP uplink slots enable fiber expansion
  • Rack-mountable 1U design saves cabinet space
  • 37 W power consumption lowers energy costs

Specifications

BrandCisco Systems, Inc
ModelCatalyst
Part NumberC1300-16T-2G
FormatRack-mountable
StandardsLayer Supported:
3
Networking Standards:
IEEE 802.1x
IEEE 802.3az
IEEE 802.3ad
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
IEEE 802.3af
IEEE 802.3at
IEEE 802.1p
IEEE 802.11ac
IEEE 802.1Q
IEEE 802.1ab
Network MediaMedia Type Supported:
Optical Fiber
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
1000Base-X
Uplink InterfaceTotal Number of Expansion Slots:
2.0
Expansion Slot Type:
SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
2
Primary PortsTotal Number of Network Ports:
16
Uplink Port:
Yes
Modular:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
16 x Gigabit Ethernet Network Port
2 x Gigabit Ethernet Expansion Slot
PowerInput Voltage:
120 V AC
230 V AC
Frequency:
50 Hz
60 Hz
Power Source:
Power Supply
AC
Number of Power Supplies Installed:
1
Power Consumption:
18.37 W
DimensionsHeight:
1.7"
Width:
10.6"
Depth:
10.7"
WeightWeight (Approximate):
3.92 lb
Shipping weight3.72 kg
Package size409 × 401 × 109 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I decide between the 16 RJ-45 ports and the 2 SFP uplinks for my network layout?

Use the 16 Gigabit RJ-45 ports for copper connections to endpoints and the 2 SFP slots for fiber uplinks or additional copper modules, giving a total of 18 Gigabit ports in a 1U rack-mountable switch.

What does the 18.37 W power consumption mean for daily operation?

The switch draws 18.37 W from a single internal AC supply that accepts 120 V or 230 V at 50 Hz or 60 Hz, so running costs stay low and no redundant power supply is required.

Which IEEE standards cap the real-world throughput on the SFP uplinks?

The SFP uplinks operate under IEEE 802.3z for 1000Base-X fiber and IEEE 802.3ab for 1000Base-T copper, limiting each uplink to 1 Gbps full-duplex in practice.
