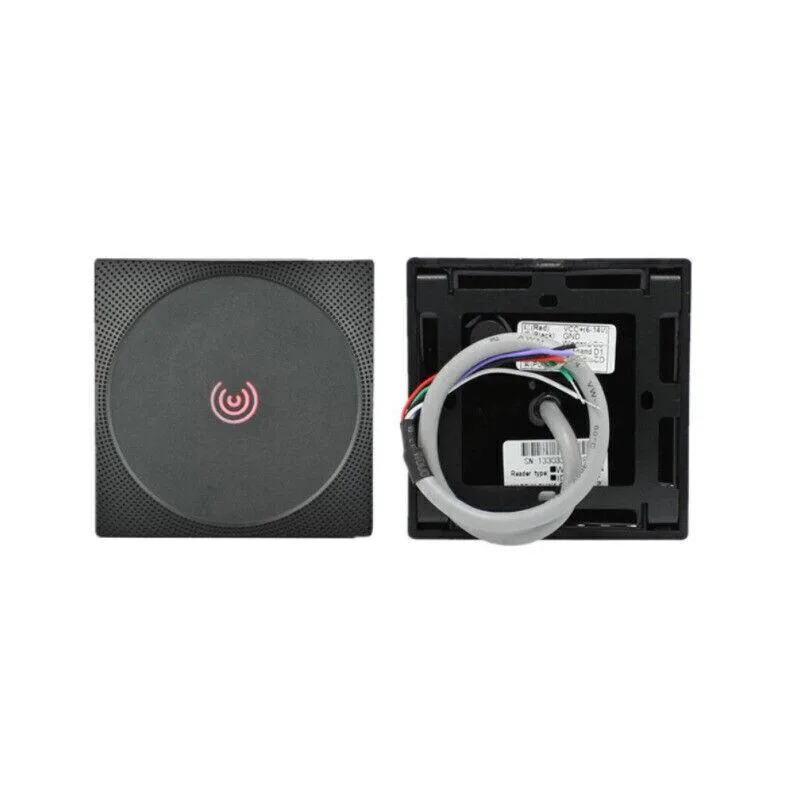

Black rectangular RFID card reader with textured ABS+PC finish, red and green LED indicators, IP65 rated, 116 by 75 by 17.3 mm

ZKTECO

ZKTECO KR601 KR602 Door Access Control System RFID ID IC Card Reader KR601M+IC office equipment

SKU CH-7XJ8-1XMF1

RFID card reader for access control reads ID and M1 cards up to 10 cm with Wiegand 26/34-bit output, IP65-rated ABS housing, and 9–12 V DC power

Models: Select KR601M+IC

  • Fast card reading up to 10 cm range
  • Secure 26 or 34 bit Wiegand output format
  • Durable IP65 rated ABS+PC housing
  • Wide operating temperature from -20 to +65°C
  • Low power draw max 70 mA at DC 9-12V

ZKTECO KR600 Series RFID Reader

The KR600 series reader handles ID and M1 cards for access control, attendance and charging systems. Advanced RF circuitry and an embedded microcontroller deliver fast card reading with high sensitivity. It suits offices, factories and sites needing reliable contactless entry.

Read Range 5 to 10 Centimetres

Cards read within five to ten centimetres, giving quick entry at turnstiles or door frames. The unit draws a maximum of 70 milliamps from a nine to twelve volt DC supply, so it runs on standard access-control power. Extreme cold or heat from minus twenty to sixty-five degrees Celsius is within spec.

Wiegand 26 or 34 Bit Output

Two-colour LEDs and a built-in beeper give immediate visual and audible feedback. Two input ports accept external LED and buzzer control for custom signalling. The IP65-rated ABS and PC housing mounts directly on walls or mullions without extra enclosures.

Highlights

  • Fast card reading up to 10 cm range
  • Secure 26 or 34 bit Wiegand output format
  • Durable IP65 rated ABS+PC housing
  • Wide operating temperature from -20 to +65°C
  • Low power draw max 70 mA at DC 9-12V

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the KR601M+IC reader work with my existing Wiegand 26-bit controller?

Yes, it outputs both 26-bit and 34-bit Wiegand so it connects directly to most legacy panels.

How can I confirm the reader is powered and communicating after wiring it up?

The two-colour LED shows red or green and the built-in beeper sounds on each successful card read.

Does the box include mounting hardware or a 12 V power supply?

The reader itself is supplied; screws, wall plugs and a DC 9-12 V source must be sourced separately.
