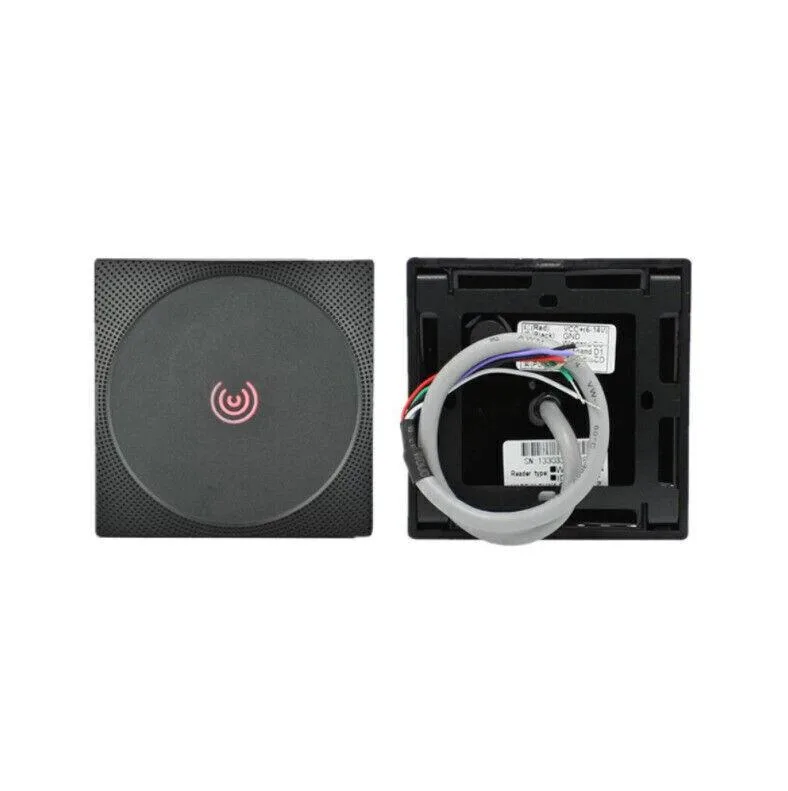

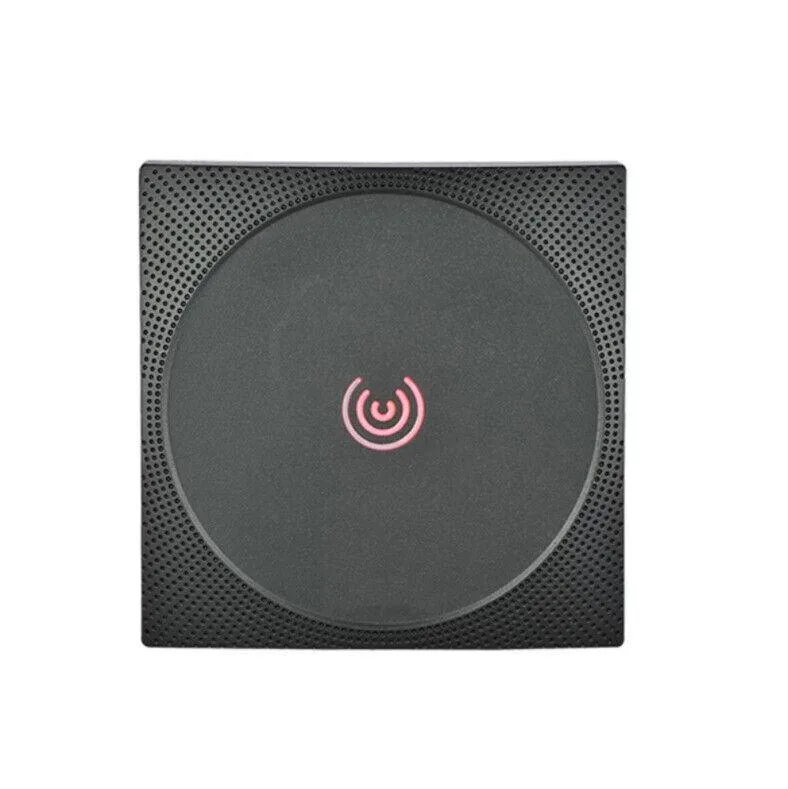

Black rectangular RFID reader with textured ABS+PC finish, dual-colour LED indicators, IP65 rated, 116 by 75 by 17.3 mm

ZKTECO

ZKTECO KR601 KR602 125KHZ 13.56MHZ RFID Reader Office Equipment

SKU CH-F9JQ-BH9SV

Dual-frequency RFID reader reads 125 kHz and 13.56 MHz cards up to 10 cm with Wiegand 26/34-bit output and IP65 protection

Models: Select KR601E+ID

  • Reads ID and M1 cards up to 10 cm away
  • Dual-frequency 125 kHz and 13.56 MHz support
  • Wiegand 26/34 bit output for easy integration
  • IP65 rated for indoor and outdoor use
  • Operates from -20 °C to +65 °C

ZKTeco KR601 KR602 Dual-Frequency RFID Reader

The ZKTeco KR601 KR602 is a dual-frequency RFID reader operating at 125kHz and 13.56MHz for ID and M1 card compatibility. It uses an advanced RF circuit with an embedded microcontroller for fast decoding. The unit provides Wiegand 26/34 bit output for access control integration.

Suits Access Control and Attendance Systems

This reader fits installations needing dual-frequency support with Wiegand output for existing controllers. It operates on DC 9-12V with a maximum current draw of 70mA. Buyers requiring network-native protocols or long-range reading beyond 10cm should consider other device types.

IP65-Rated Wall-Mount Unit for Indoor or Outdoor Use

The ABS+PC housing measures 116mm by 75mm by 17.3mm and weighs 120g for direct wall mounting. Dual-colour LED indicators and a built-in beeper give immediate visual and audible feedback. Two input ports allow external LED and buzzer control from the host system. Operating range spans -20°C to +65°C at up to 90% humidity.

Highlights

  • Reads ID and M1 cards up to 10 cm away
  • Dual-frequency 125 kHz and 13.56 MHz support
  • Wiegand 26/34 bit output for easy integration
  • IP65 rated for indoor and outdoor use
  • Operates from -20 °C to +65 °C

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the KR601 KR602 reader need a separate power supply to provide 9-12V DC at up to 70mA?

Yes, the reader requires an external DC 9-12V source capable of supplying up to 70mA; it does not draw power from the Wiegand data lines.

Will the KR601 KR602 work with a legacy controller that only accepts 26-bit Wiegand output?

The reader outputs either 26-bit or 34-bit Wiegand, so it is compatible with controllers expecting the 26-bit format.

How can I confirm the KR601 KR602 is reading cards correctly after wiring it up?

Present a 125KHZ or 13.56MHZ card within 5-10CM; the red and green LEDs will change state and the internal beeper will sound to indicate a successful read.
