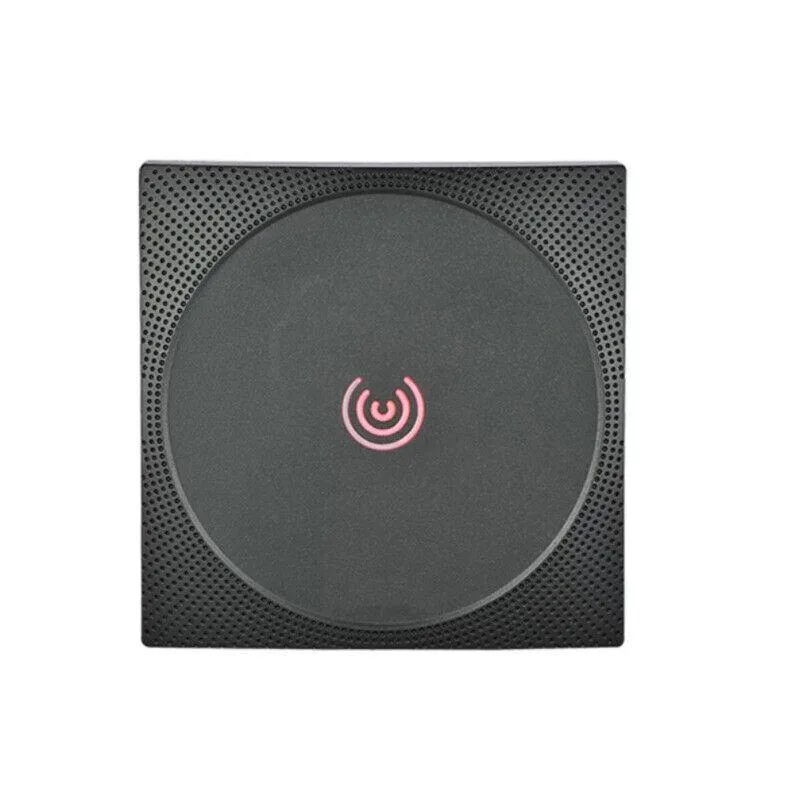

Black rectangular RFID card reader with textured finish, 116 by 75 by 17.3 mm

ZKTECO

ZKTECO KR601M+IC RFID Card Reader office equipment

SKU CH-VF6J-C4FDP

Reads 125 kHz and 13.56 MHz cards up to 10 cm with Wiegand 26/34-bit output and IP65 protection

Models: Select KR601M+IC

  • Read ID and M1 cards up to 10 cm range
  • Wiegand 26 or 34 bit output for easy integration
  • IP65 rated for indoor and outdoor installation
  • Operates from -20 °C to +65 °C in 10 to 90 % humidity
  • Compact 116 x 75 x 17.3 mm ABS+PC housing weighs 120 g

ZKTECO KR601M+IC RFID Access Reader

The ZKTECO KR601M+IC is a dual-frequency RFID card reader built for access-control and attendance systems. It reads 125 kHz ID cards and 13.56 MHz M1 cards at a range of up to 10 cm. The unit suits offices, schools and secure facilities that need reliable contactless entry.

Dual-Frequency 125 kHz and 13.56 MHz Operation

The decisive specification is its ability to handle both 125 kHz and 13.56 MHz credentials in one housing. This eliminates the need for separate readers when a site uses mixed card types. Reading time is fast and the output uses standard 26-bit or 34-bit Wiegand format.

IP65 Housing with Wiegand Output

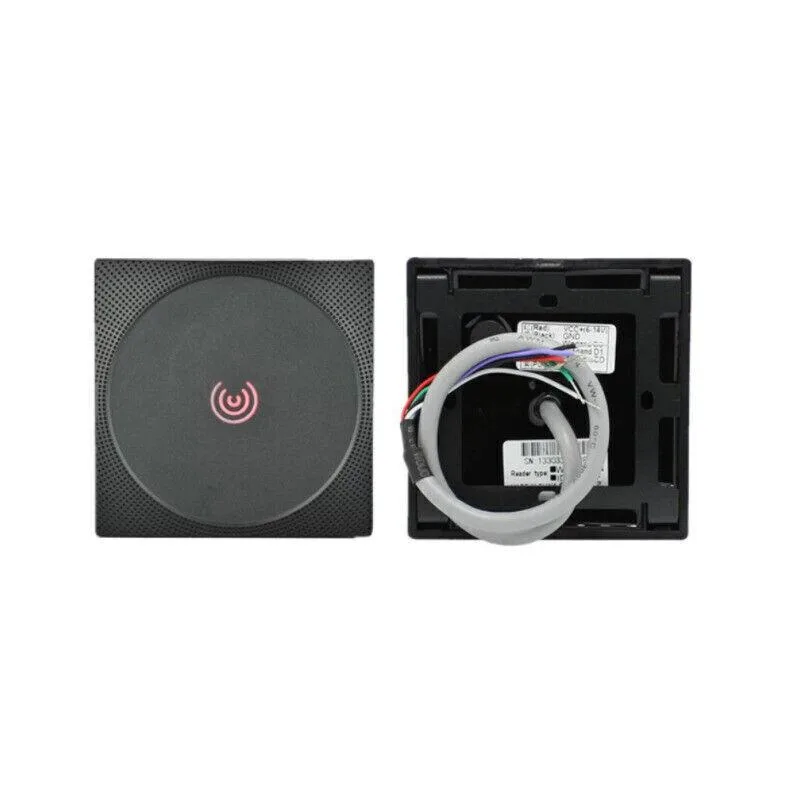

The black ABS+PC enclosure measures 116 by 75 by 17.3 mm and carries an IP65 rating for indoor or sheltered outdoor mounting. It runs on 9 to 12 V DC with a maximum draw of 70 mA. Two input ports accept external LED and buzzer control, while the Wiegand output connects directly to most controllers.

Highlights

  • Read ID and M1 cards up to 10 cm range
  • Wiegand 26 or 34 bit output for easy integration
  • IP65 rated for indoor and outdoor installation
  • Operates from -20 °C to +65 °C in 10 to 90 % humidity
  • Compact 116 x 75 x 17.3 mm ABS+PC housing weighs 120 g

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How far from the reader will a card still register?

The reader detects cards at a distance of 5 to 10 centimetres under normal conditions

Which wiring standard does the output use and what bit lengths are supported?

It uses Wiegand output with selectable 26-bit or 34-bit formats for access controllers

What are the exact mounting dimensions and protection rating?

The unit measures 116 by 75 by 17.3 millimetres and is rated IP65 for dust and water resistance
