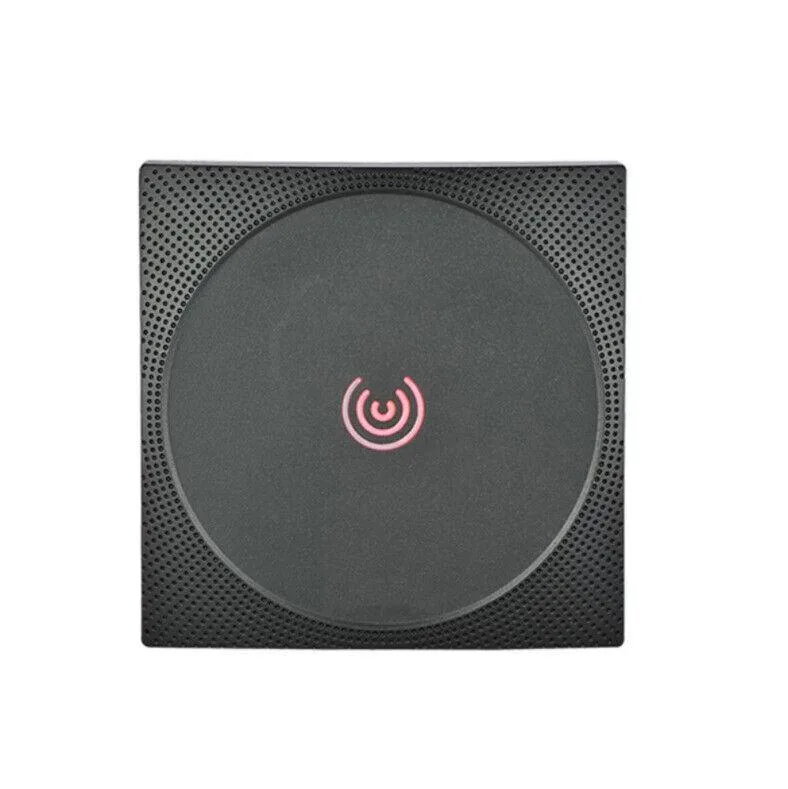

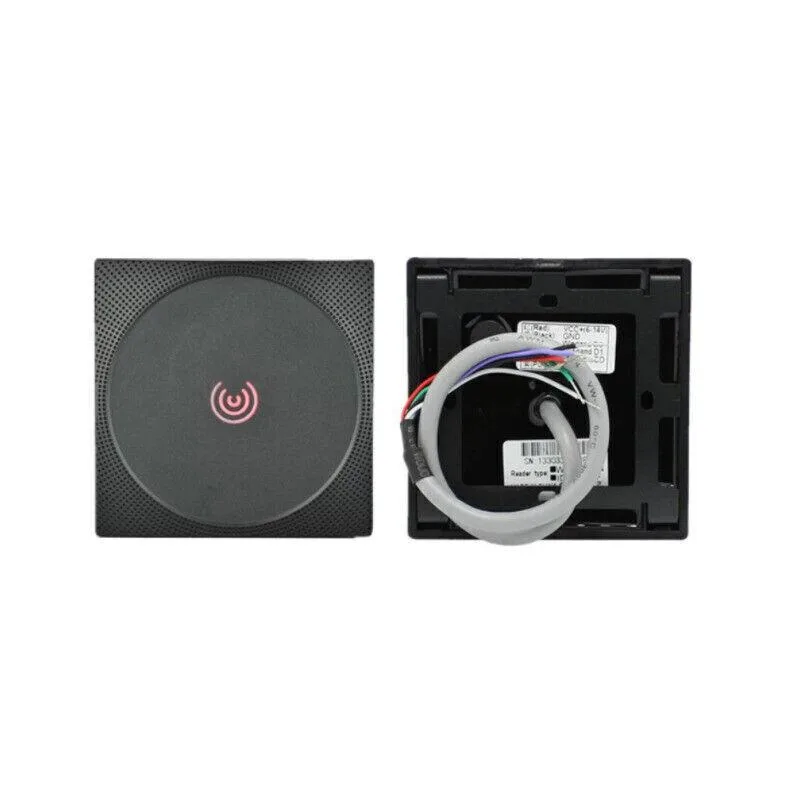

Black rectangular RFID card reader with textured ABS+PC finish, 116 by 75 by 17.3 mm, red and green LED indicators

ZKTECO

ZKTECO KR601 KR602 RFID Card Reader office equipment

SKU CH-XF5D-7NAFB

RFID card reader for access control and attendance with Wiegand output and IP65 rating

Models: Select KR601E+ID

  • Fast reading with 26 or 34 bit Wiegand output
  • Weatherproof IP65 housing for outdoor use
  • Operates from -20 °C to +65 °C reliably
  • Low 70 mA draw on 9-12 V DC supply
  • Compact 116 x 75 x 17.3 mm design

ZKTECO KR601 KR602 RFID Reader

The ZKTECO KR601 KR602 is a compact RFID card reader built for access control and attendance systems. It reads ID or M1 cards at up to 10 cm range with a fast decoding algorithm. The unit operates on 9-12 V DC power and weighs 120 g.

Replaces standalone keypads

Upgrading from a keypad-only entry removes the need for users to remember codes and speeds up throughput. The jump is worth it when you need contactless ID or M1 card authentication with Wiegand 26/34 bit output for existing controllers.

Fits into access control panels and door frames

The reader mounts on a standard surface measuring 116 x 75 x 17.3 mm and requires only a single DC supply drawing up to 70 mA. Two input ports accept external LED and buzzer control signals. IP65 rating and -20 to +65 °C operation suit indoor or sheltered outdoor locations.

Highlights

  • Fast reading with 26 or 34 bit Wiegand output
  • Weatherproof IP65 housing for outdoor use
  • Operates from -20 °C to +65 °C reliably
  • Low 70 mA draw on 9-12 V DC supply
  • Compact 116 x 75 x 17.3 mm design

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What are the mounting dimensions and weight of the KR601/KR602 reader?

The reader measures 116 mm wide by 75 mm high by 17.3 mm deep and weighs 120 g.

How is the device wired for power and Wiegand output, and what is the common mistake?

Connect DC 9-12 V to the power terminals and the 26/34 bit Wiegand data lines to the controller; the frequent error is reversing the Data 0 and Data 1 wires.

What ongoing maintenance does the IP65-rated housing require?

Wipe the ABS+PC surface periodically; the sealed IP65 enclosure needs no internal servicing.
