Analog Technologies Compact High Voltage Power Supply 6kV 3mA 12V DC-DC AHV12V6KV3MAW

SKU CH-JXEB-C7HKA

Compact high-voltage DC-DC converter delivers 0 to 6 kV at up to 3 mA from a 12 V input with electronic shutdown control

  • TypeHigh Voltage Power Supply

Options 12V to 6000V 3mA

  • 0–6 kV adjustable output covers X-ray and spectroscopy needs
  • 12 V DC input simplifies integration into existing systems
  • Electronic shutdown control protects equipment during faults
  • Full-span voltage modulation enables precise process control
  • 5 V reference with ±0.05 V accuracy ensures stable regulation

Compact High-Voltage DC-DC Module

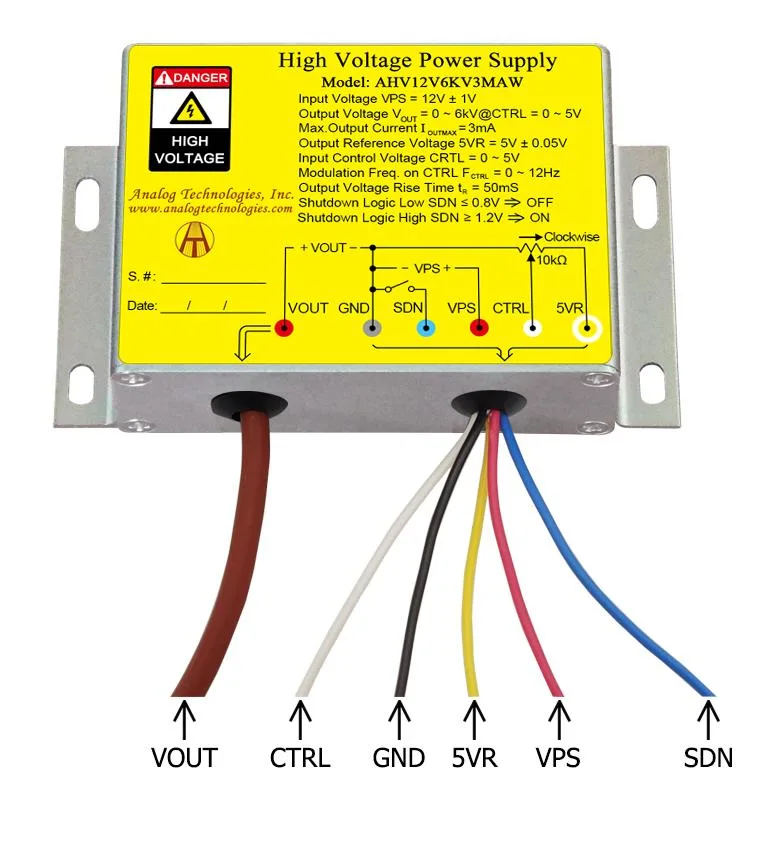

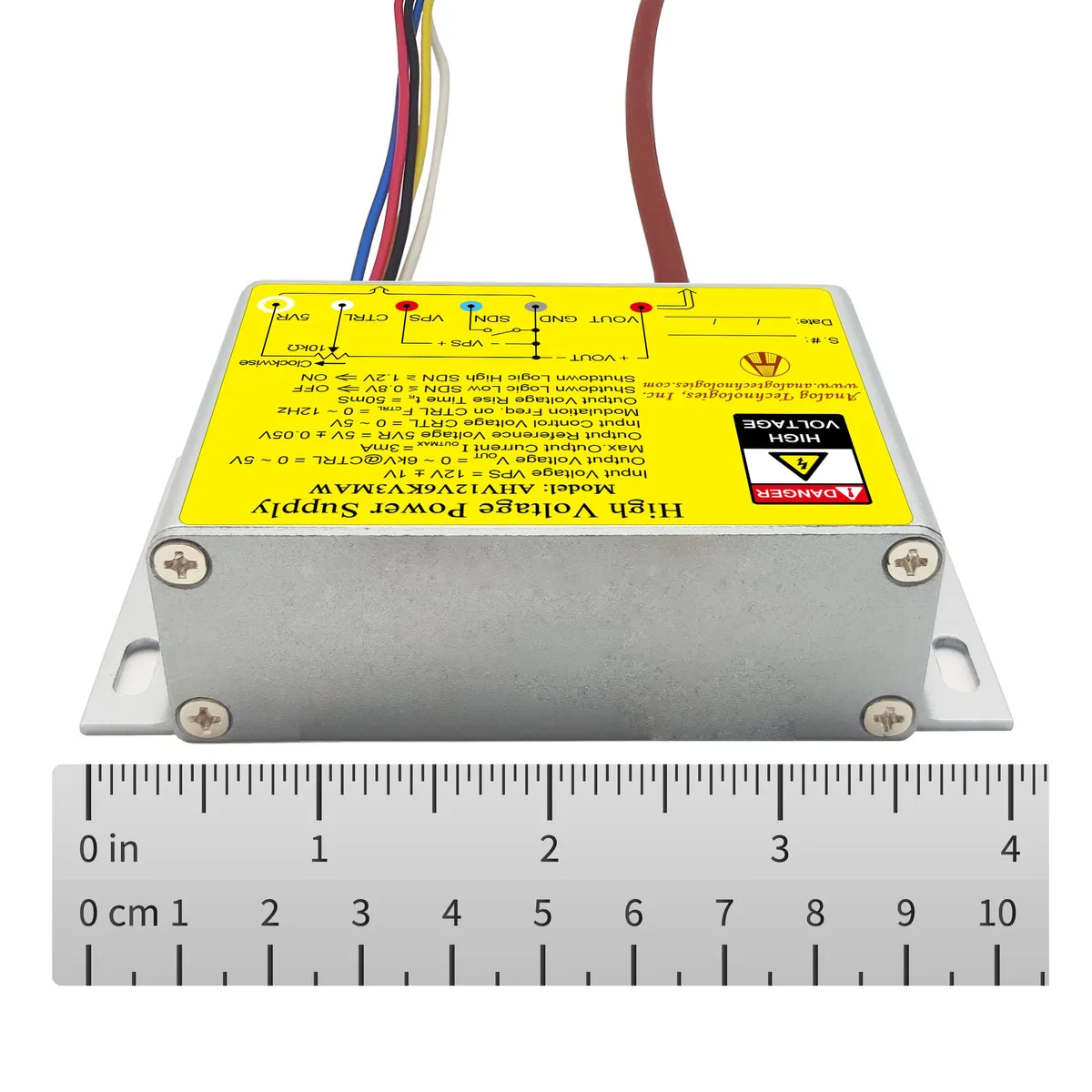

This Analog Technologies module converts a 12 V DC input into an adjustable 0 to 6 kV output with a maximum current of 3 mA. It is built for laboratory and industrial equipment that requires a programmable high-voltage source from a low-voltage rail. The unit accepts a control voltage of 0 to 5 V to set the output across its full span. An electronic shutdown function allows the output to be disabled remotely.

Suited for OEM Integration and Lab Use

The supply fits engineers designing X-ray systems, spectral analysers, electrospinning rigs or semiconductor process tools where a compact 6 kV source is needed. It is not intended for buyers who need higher output current or a wider input voltage range than the 12 V ± 1 V specified. Applications requiring continuous operation above the 1.8 A input limit should look at larger chassis-mounted units.

Simple Wiring with Control Precautions

Installation requires a stable 12 V source capable of delivering up to 1.8 A and a low-noise 0 to 5 V control signal referenced to the module ground. The 5 V reference output is accurate to ± 0.05 V and can drive the control input directly. Common issues arise from inadequate input decoupling, ground loops between the control circuitry and the high-voltage return, and exceeding the 3 mA output limit which triggers protection shutdown.

Highlights

  • 0–6 kV adjustable output covers X-ray and spectroscopy needs
  • 12 V DC input simplifies integration into existing systems
  • Electronic shutdown control protects equipment during faults
  • Full-span voltage modulation enables precise process control
  • 5 V reference with ±0.05 V accuracy ensures stable regulation

Specifications

TypeHigh Voltage Power Supply

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What input voltage and current range must my 12 V source provide for this module to operate?

The unit requires a 12 V ± 1 V supply capable of delivering between 160 mA and 1.8 A depending on load.

If I keep a legacy 0–5 V analogue control board, will it drive the 0–6 kV output correctly?

Yes, the 0–5 V control input maps directly to the full 0–6 kV output span with a 5 V ± 0.05 V reference.

How can I verify the output is tracking the control voltage after installation?

Measure the high-voltage output while sweeping the control input from 0 to 5 V; the output should scale linearly from 0 to 6 kV.
