Compact high-voltage DC-DC module with 24V input and 5kV output

Analog Technologies

Analog Technologies AHV24V5KV1MAW High Voltage Power Supply 5kV 1mA 24V DC-DC

SKU CH-BF4G-KMYNB

Compact DC-DC module converts 24 V input into a 0–5 kV, 1 mA high-voltage output with full-span control and electronic shutdown

  • TypeHigh Voltage Power Supply

Options 24V to 5000V 1mA

  • 0–5 kV adjustable output covers diverse high-voltage needs
  • 24 V input simplifies integration into standard DC systems
  • 1 mA maximum current supports precision low-power applications
  • 0–5 V control voltage enables full-span modulation
  • Electronic shutdown control adds safety for sensitive equipment

Target Applications

The AHV24V5KV1MAW is a compact DC-DC high voltage power supply converting a 24 V input to an adjustable 0 to 5 kV output at up to 1 mA. It suits engineers building X-ray sources, spectral analysers, electrospinning rigs or semiconductor process equipment where precise high-voltage bias is required.

Suitability Limits

Users needing more than 1 mA output current, an input voltage other than 24 V, or a lower maximum voltage should consider alternative modules. The unit also lacks an integrated display or digital interface, so systems requiring direct front-panel readout will need external instrumentation.

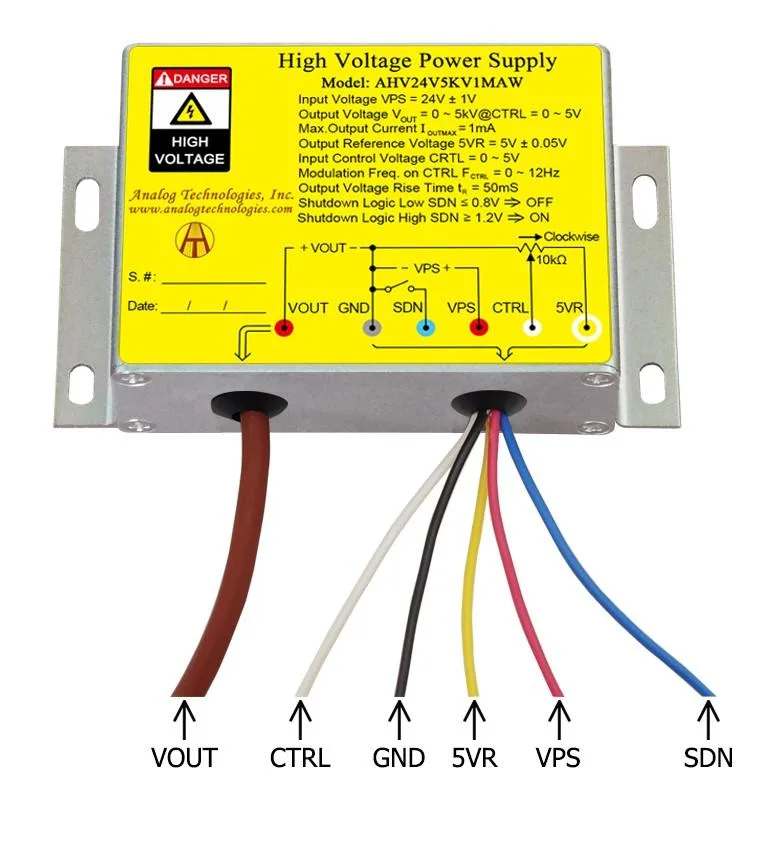

Control Interface

Output voltage scales linearly with a 0 to 5 V control signal, and a 5 V ± 0.05 V reference voltage is provided for setting that signal. Electronic shutdown control allows fast output inhibition without cycling the main input power.

Highlights

  • 0–5 kV adjustable output covers diverse high-voltage needs
  • 24 V input simplifies integration into standard DC systems
  • 1 mA maximum current supports precision low-power applications
  • 0–5 V control voltage enables full-span modulation
  • Electronic shutdown control adds safety for sensitive equipment

Specifications

TypeHigh Voltage Power Supply

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 5 kV version or a lower-voltage model for my application?

The module delivers 0 to 5 kV controlled by a 0 to 5 V signal, so select it only if your load requires up to 5 kV at 1 mA; lower-voltage units are separate models.

What does the 1 mA output current mean when the supply is installed in my system?

It limits the continuous high-voltage draw to 1 mA; at full 5 kV that equals 5 W, so your load must stay at or below that power level.

How does the 24 V input and 0 to 5 V control interface cap real-world performance?

The 24 V ± 1 V rail supplies 40 to 300 mA, and the 0 to 5 V control sets output linearly; neither interface can exceed those voltage or current bounds.
