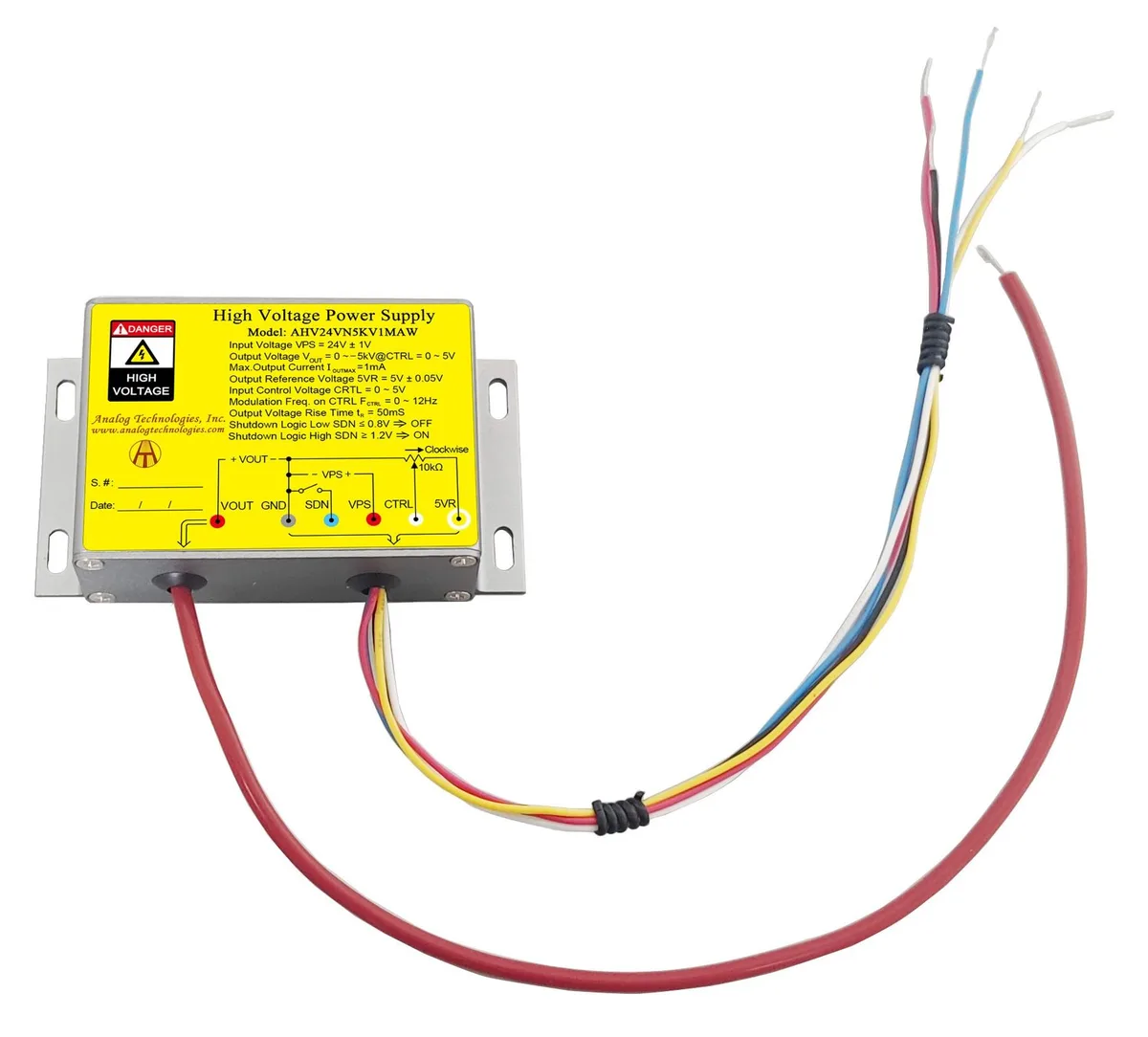

Compact DC-DC high-voltage module with metal enclosure

Analog Technologies

Analog Technologies AHV24VN5KV1MAW High Voltage Power Supply -5kV 1mA 24V DC-DC

SKU CH-ZSTD-J9FXT

Compact DC-DC converter delivers adjustable 0 to -5 kV output at up to 1 mA from a 24 V supply

  • TypeHigh Voltage Power Supply

Options 24V to -5000V 1mA

  • 0 to -5 kV adjustable output for versatile high-voltage applications
  • 1 mA maximum current delivers precise low-power performance
  • 24 V DC input with 40 to 300 mA range suits standard industrial rails
  • Electronic shutdown control enables instant output disable for safety
  • 5 V reference with ±0.05 V accuracy ensures stable voltage regulation

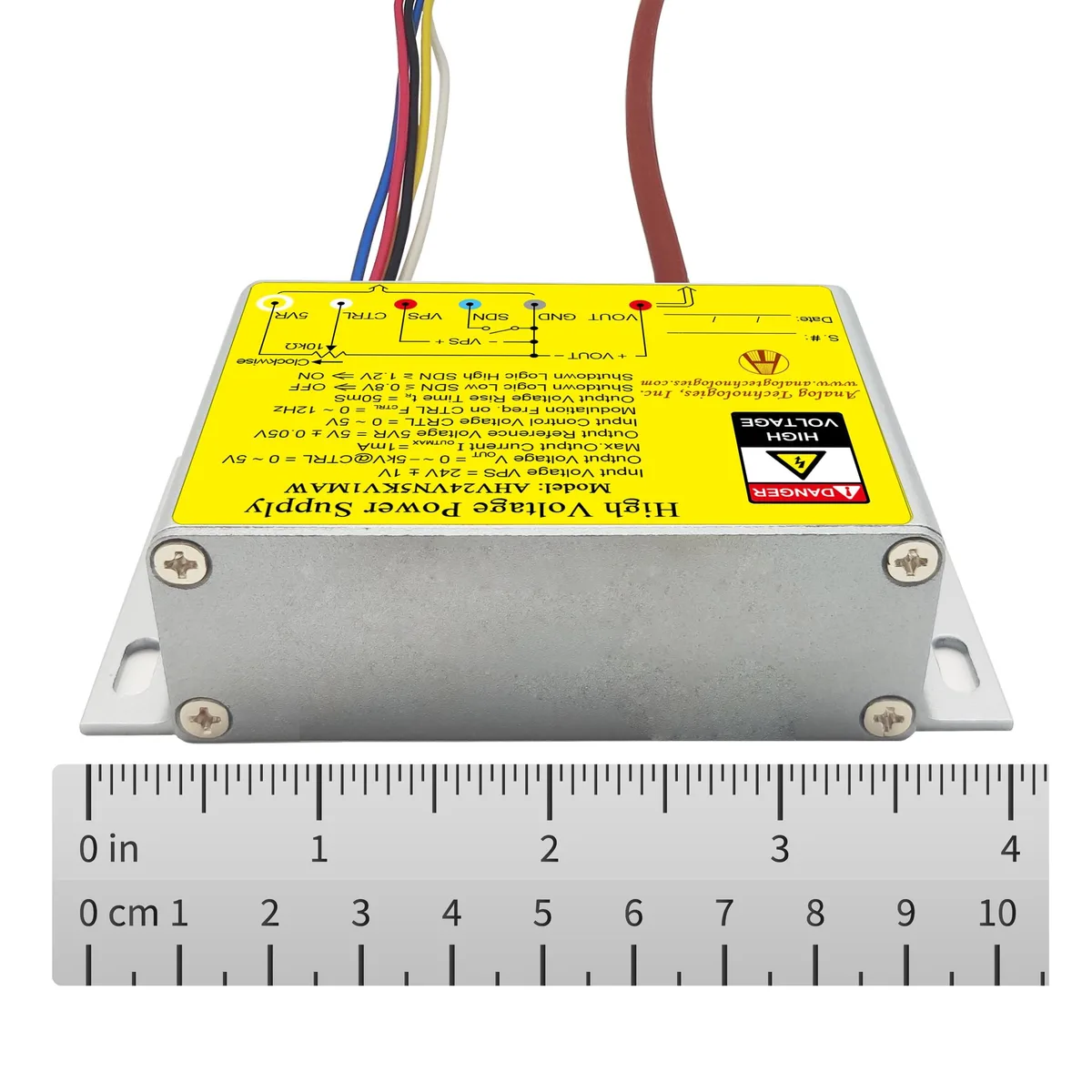

Compact High-Voltage DC-DC Module

The Analog Technologies AHV24VN5KV1MAW converts a 24V DC input into an adjustable 0 to -5kV output with a maximum current of 1mA. It is built for engineers and system integrators who need a programmable high-voltage source in scientific, analytical or industrial equipment.

Control and Protection Features

A 0 to 5V control voltage sets the output across the full span, while a 5V reference with ±0.05V tolerance supports stable regulation. Electronic shutdown allows the output to be disabled remotely without cutting the main 24V supply.

Integration Considerations

The module accepts 24V ±1V and draws between 40mA and 300mA depending on load, so the host supply must maintain regulation within that window. Wiring must be rated for the -5kV potential and kept clear of grounded surfaces to avoid arcing or leakage.

Highlights

  • 0 to -5 kV adjustable output for versatile high-voltage applications
  • 1 mA maximum current delivers precise low-power performance
  • 24 V DC input with 40 to 300 mA range suits standard industrial rails
  • Electronic shutdown control enables instant output disable for safety
  • 5 V reference with ±0.05 V accuracy ensures stable voltage regulation

Specifications

TypeHigh Voltage Power Supply

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 24V input connector need replacement after continuous operation?

The unit draws 40mA to 300mA from a 24V source; the input connector is rated for this range and does not have a scheduled replacement interval.

What limits the output first during sustained high-voltage use?

Output current is capped at 1mA, so the 1mA limit is reached before the 0 to -5kV voltage range is exhausted.

How much heat does the module produce when running all day at full load?

At maximum load the converter draws up to 300mA from the 24V rail, dissipating the difference between input power and the 5W high-voltage output as heat.
