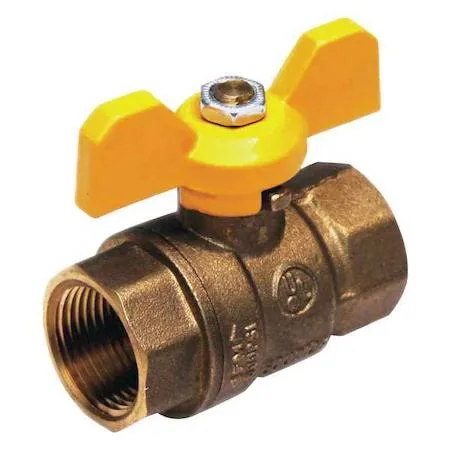

Brass ball valve with lever handle, 3/4 inch FNPT threads

Zoro Select

Zoro Select 1WMH1 3/4" FNPT Brass Ball Valve

SKU CH-DMFR-YC9TM

Inline brass ball valve controls air, oil, steam or water flow at up to 600 psi with a full-port, non-locking handle

  • Full-port design enables unrestricted flow
  • Chrome-plated brass ball resists corrosion
  • Brass body handles air, oil, steam and water
  • 600 psi operating pressure rating
  • Vacuum service rated to 29.9 in Hg

3/4" Brass Ball Valve for Air and Fluid Lines

This manual two-way ball valve is built for inline shut-off in compressed-air, oil, steam and water systems. It suits maintenance technicians and plant operators who need a reliable quarter-turn valve rated for 600 psi operating pressure.

Full-port flow with 150 psi steam limit

The full-port chrome-plated brass ball matches the 3/4" nominal bore, so air and liquid move without restriction up to the 600 psi rating. Steam service is capped at 150 psi, and the valve holds a 29.9 in Hg vacuum when the line is evacuated.

Two-piece brass body with non-locking handle

The straight-pattern, two-piece brass construction resists corrosion in workshop and industrial environments. A non-locking lever provides quick manual operation, while FNPT threads allow direct connection to standard pipe fittings without adapters.

Highlights

  • Full-port design enables unrestricted flow
  • Chrome-plated brass ball resists corrosion
  • Brass body handles air, oil, steam and water
  • 600 psi operating pressure rating
  • Vacuum service rated to 29.9 in Hg

Specifications

BrandZORO SELECT

Questions about this item

Will the 3/4" FNPT threads on this Zoro Select ball valve match the fittings on my existing air compressor piping?

The valve has 3/4 inch FNPT connections, a standard pipe thread size used on many air compressor lines, so it will screw directly onto matching male NPT fittings without adapters.

After installing the valve, how can I verify the full-port chrome-plated brass ball is sealing correctly?

With the handle turned perpendicular to the body the flow path is closed; pressurise the system and watch for pressure drop or leaks at the valve body and stem to confirm a tight seal.

Does the package include any thread sealant, pipe nipples or wrenches, or must I supply them myself?

The box contains only the two-piece brass ball valve; thread sealant, mating pipe nipples and installation tools are not included and must be purchased separately.
