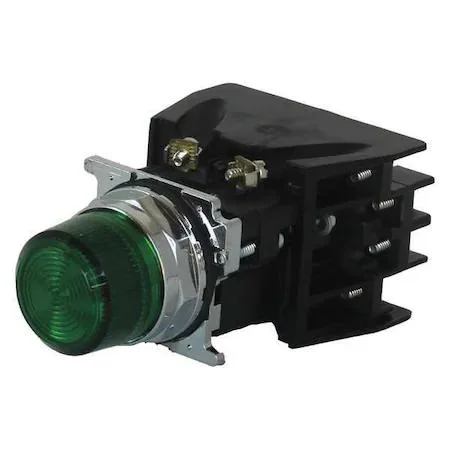

Green illuminated metal push button 30 mm momentary 120V AC LED IP65

Eaton

Eaton 10250T828GD2A Illuminated Push Button 120V AC Green

SKU CH-Q397-7KN82

A green 30 mm momentary illuminated push button with one normally open and one normally closed contact, rated 10 A at 600 V AC, LED lamp at 120 V AC, and NEMA 4X IP65 protection

  • Green LED gives clear status indication at 120 V AC
  • Momentary action with 1 NO and 1 NC contacts for flexible control
  • Rated 10 A at 600 V AC and 2.5 A at 250 V DC
  • IP65 and NEMA 4X protection suits harsh environments
  • 30 mm metal head fits standard panel cut-outs

Industrial illuminated push button

The Eaton 10250T828GD2A is a 30 mm momentary push button with a green LED lamp module rated for 120V AC. It carries one normally-open and one normally-closed contact block rated at 10A @ 600V AC and 2.5A @ 250V DC. The unit is designed for hazardous-location panels that require NEMA 12, 13, 3, 3R, 4, 4X and IP65 ingress protection.

Thermals noise and power draw

As a low-voltage control device the button generates negligible heat and produces no audible noise during actuation. The LED indicator draws minimal current at 120V AC while the screw-clamp terminals maintain secure connections without additional power dissipation in normal operation.

Decisive specification

The contact rating of 10A @ 600V AC and 2.5A @ 250V DC under NEMA A600 and Q300 designations determines whether this button suits your control-circuit load. Buyers switching higher currents or different voltage classes must select a device with matching or greater ratings.

Highlights

  • Green LED gives clear status indication at 120 V AC
  • Momentary action with 1 NO and 1 NC contacts for flexible control
  • Rated 10 A at 600 V AC and 2.5 A at 250 V DC
  • IP65 and NEMA 4X protection suits harsh environments
  • 30 mm metal head fits standard panel cut-outs

Specifications

BrandEATON

Questions about this item

How do I wire the screw-clamp terminals on this 120V AC illuminated push button?

Strip each wire, insert into the screw-clamp terminals, and tighten the screws to secure the 1 NO and 1 NC contacts for the A600/Q300 ratings.

When will the green LED lamp module need replacement on this 120V AC unit?

The integrated LED lamp module runs on 120V AC and is rated for long life; replace it when illumination dims or fails completely.

What is the first limit reached during sustained operation of this NEMA 4X/IP65 push button?

The contact rating of 10A at 600V AC or 2.5A at 250V DC defines the electrical limit before overheating or wear occurs.
