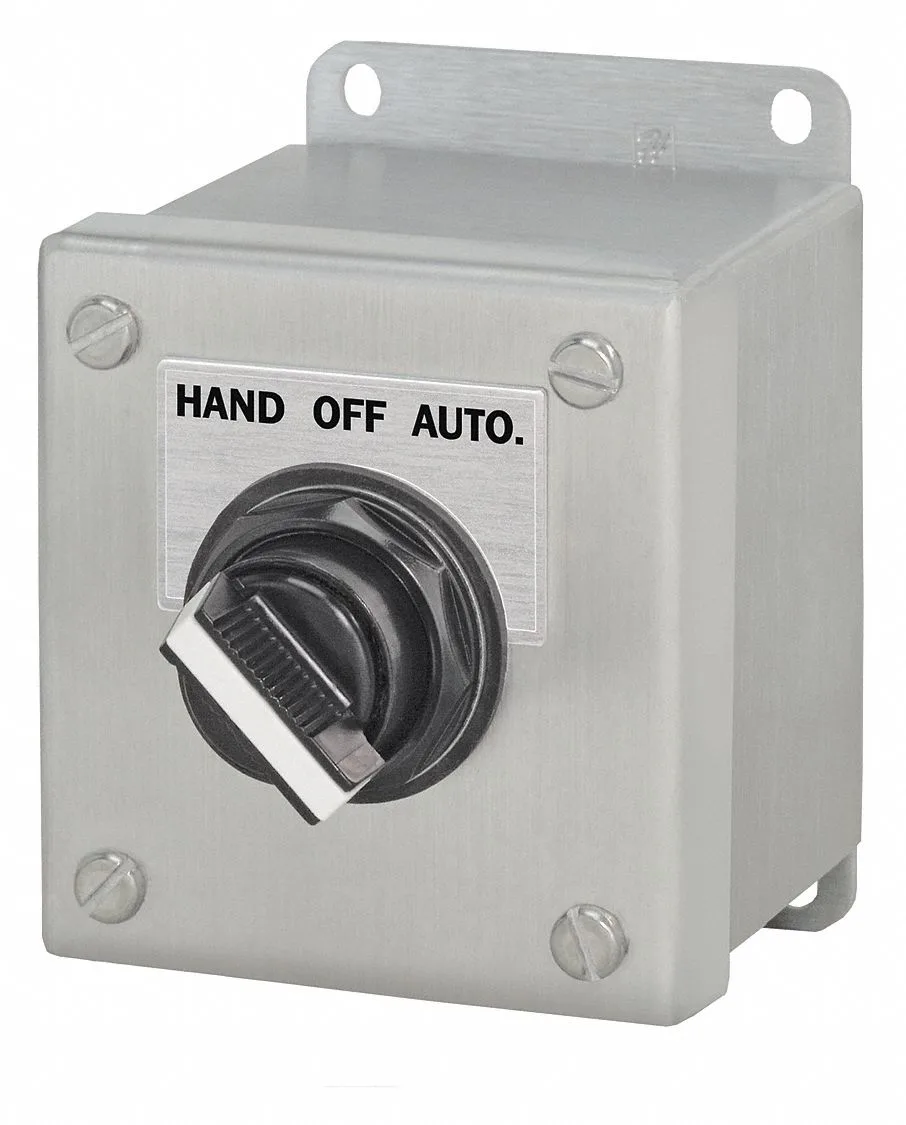

Siemens gray stainless steel selector switch control station, wall mounted, 30 mm operator, Hand/Off/Auto legend

SIEMENS

SIEMENS 52C156S Selector Switch Control Station Hand/Off/Auto

SKU CH-PTM5-HD6WS

A 30 mm maintained selector switch in a stainless-steel NEMA 4X/IP66 enclosure provides Hand/Off/Auto control with 1NO/1NC contacts rated 5 A at 600 V AC

  • 3-position selector switch provides maintained Hand/Off/Auto control
  • 1NO/1NC contacts rated 5A at 600V AC for reliable switching
  • NEMA 4X and IP66 stainless steel enclosure resists water and dust
  • Compact 30 mm operator fits 3.47 in wide wall-mount station
  • UL and CSA listed for industrial safety compliance

Selector Switch Control Station

The SIEMENS 52C156S is a wall-mounted selector switch control station designed for industrial motor control. Its single 30 mm maintained 3-position operator provides Hand, Off and Auto selections for machinery that requires manual override capability.

Contact rating and enclosure limits

The switch carries a 5A contact rating at 600V AC with a B600 NEMA designation and 1NO/1NC contact form. The stainless steel enclosure meets NEMA 4X and IP66 ratings for wash-down and outdoor environments but has no mechanical interlock between positions.

Build integration details

The unit measures 3.47 inches wide by 4.5 inches deep and mounts directly to a wall or panel. Its gray stainless steel housing resists corrosion while the maintained action keeps the selected mode engaged without spring return. Standards include CSA and UL listings.

Highlights

  • 3-position selector switch provides maintained Hand/Off/Auto control
  • 1NO/1NC contacts rated 5A at 600V AC for reliable switching
  • NEMA 4X and IP66 stainless steel enclosure resists water and dust
  • Compact 30 mm operator fits 3.47 in wide wall-mount station
  • UL and CSA listed for industrial safety compliance

Specifications

BrandSIEMENS

Questions about this item

Will the 30 mm selector switch fit the existing cutout in my control panel?

The operator is a standard 30 mm size, matching common panel cutouts for selector switches.

How can I verify the Hand/Off/Auto station is operating correctly after wiring?

Check that each position — Hand, Off, Auto — mechanically latches and that the 1NO/1NC contacts change state at 5 A, 600 V AC as rated.

Does the stainless-steel enclosure ship with mounting hardware and legend plate included?

The station includes the gray stainless-steel enclosure with Hand/Off/Auto legend; mounting screws for the 3.47 in by 4.5 in footprint are supplied separately.
