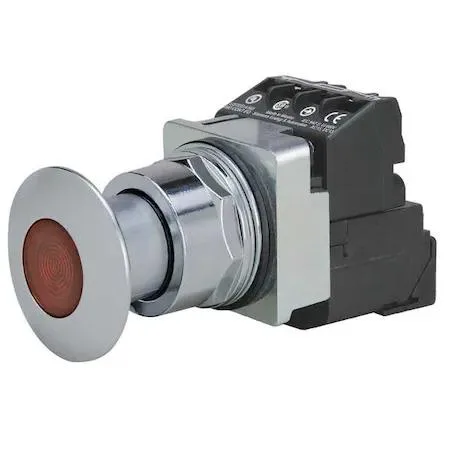

Red illuminated mushroom push button 30 mm chrome metal 24 V LED 1NO 1NC

SIEMENS

SIEMENS 52PP2D2AB 30 mm Illuminated Push Button Red 24 V LED 1NO/1NC

SKU CH-NYKH-7YG9E

30 mm red illuminated mushroom push button with 24 V LED, 1NO/1NC contacts rated 10 A at 600 V AC, and NEMA 1, 3, 3R, 4, 4X, 12, 13 protection

  • Red LED illumination for clear status indication
  • 30 mm mounting size fits standard panels
  • 1NO/1NC contacts rated 10 A at 600 V AC
  • NEMA 1, 3, 3R, 4, 4X, 12, 13 rated enclosure
  • 24 V AC/DC full-voltage LED lamp module

30 mm Illuminated Mushroom Push Button

The SIEMENS 52PP2D2AB is a 30 mm red illuminated push button with a maintained pull and maintained push action. It uses a 44 mm mushroom head operator and provides a 1NO/1NC contact configuration for control circuits.

Verify Panel Cut-Out and Control Voltage

Confirm the mounting panel has a 30 mm cut-out and that the control circuit supplies 24 V AC/DC for the LED lamp module. The contact block is rated at 10 A at 600 V AC with NEMA A600/P600 designation for the intended load.

Fits Industrial Panels with NEMA-Rated Enclosures

The chrome-plated zinc die-cast bezel and metal construction mount in panels rated NEMA 1, 3, 3R, 4, 4X, 12, and 13. The full-voltage LED module frees the installer from external resistors and carries UL and CSA listings for compliance.

Highlights

  • Red LED illumination for clear status indication
  • 30 mm mounting size fits standard panels
  • 1NO/1NC contacts rated 10 A at 600 V AC
  • NEMA 1, 3, 3R, 4, 4X, 12, 13 rated enclosure
  • 24 V AC/DC full-voltage LED lamp module

Specifications

BrandSIEMENS

Questions about this item

What components are included with the 30 mm illuminated push button?

The unit ships as a complete assembly with a red 44 mm mushroom head, chrome-plated zinc die-cast bezel, metal operator body, integrated 24 V AC/DC LED lamp module, and 1NO/1NC contact block.

Which voltage and contact configuration does this model provide?

This part number is fixed at 24 V AC/DC LED illumination with a 1NO/1NC contact form rated 10 A at 600 V AC (NEMA A600/P600).

What does the NEMA 4X rating mean for an installed button?

NEMA 4X certifies the enclosure against windblown dust, rain, splashing water, hose-directed water, and corrosion when properly mounted.
