Black rectangular card reader with rounded edges, matte finish, built-in LED and speaker, IP65 rated

ZKTECO

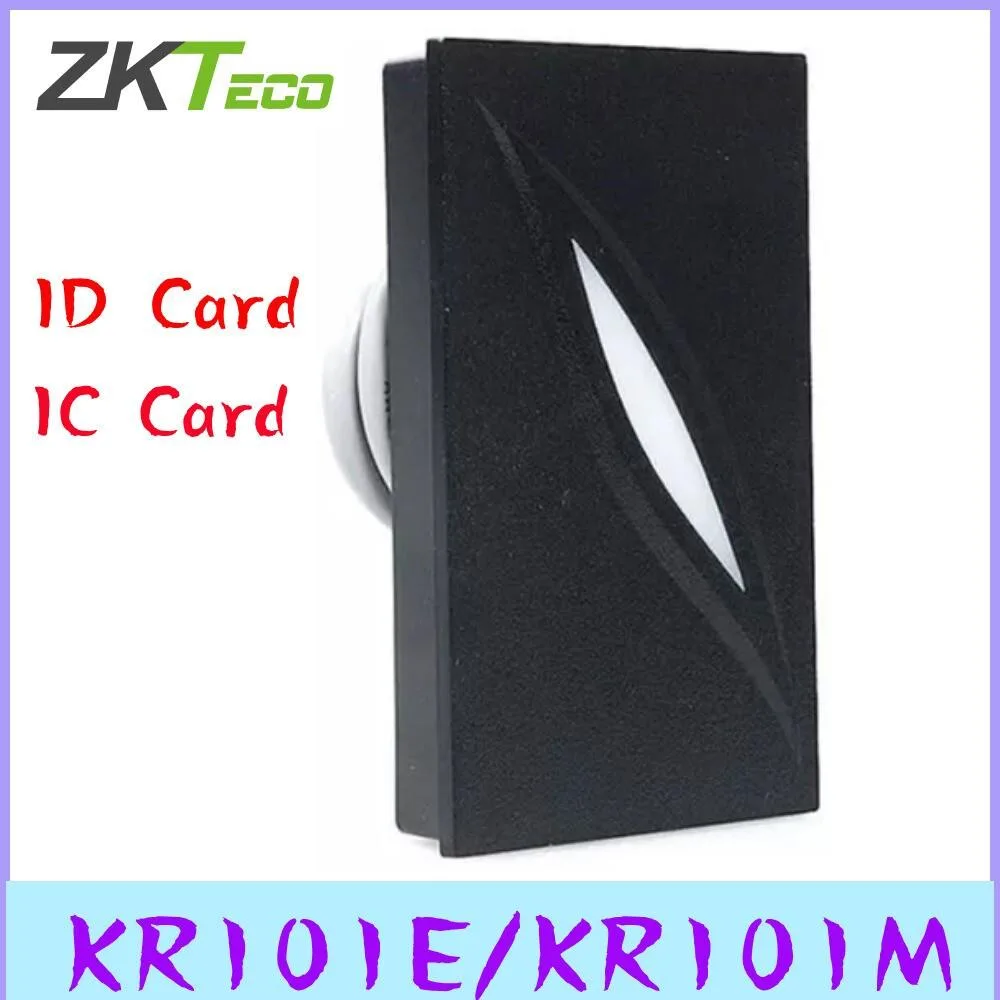

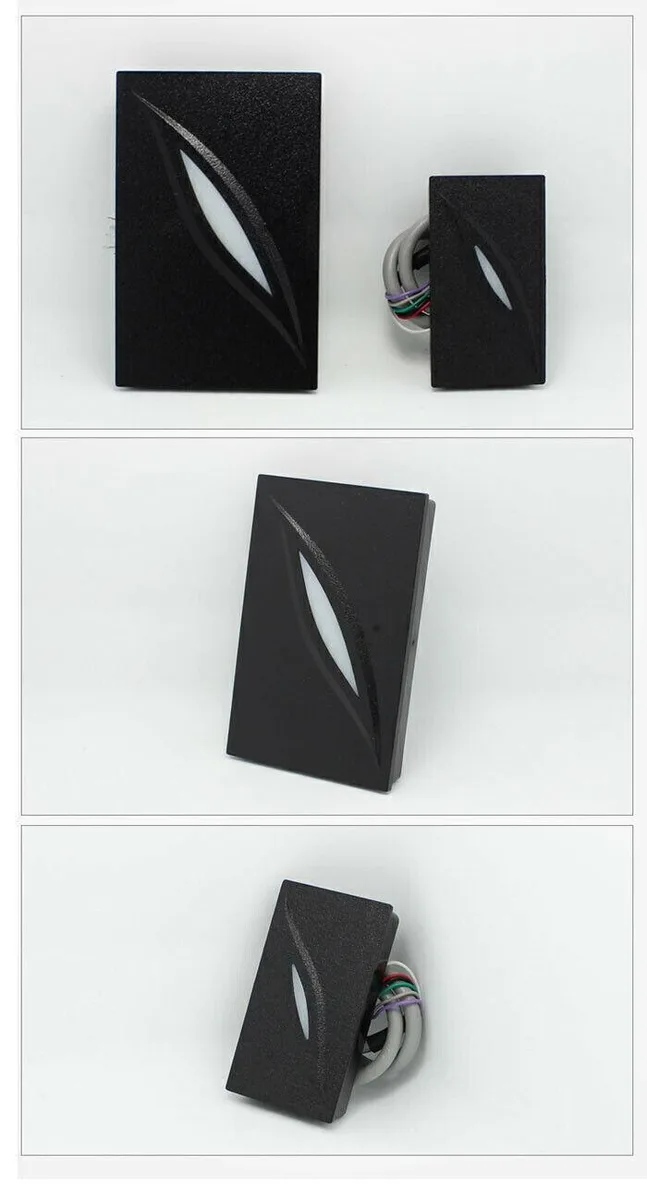

ZKTECO KR101M IC Card Reader Wiegand IP65

SKU CH-S8MJ-FVPG2

IC card reader with Wiegand output and IP65 rating for indoor or outdoor access control

Opition: Select KR101M - IC Card

  • Read IC cards at 13.56 MHz up to 5 cm
  • Wiegand 26 or 34-bit output for controller integration
  • IP65 waterproof rating for indoor and outdoor use
  • Operates from -10 °C to 70 °C in harsh environments
  • Compact 78 x 43 x 16 mm epoxy-sealed ABS housing

Access control reader for indoor and outdoor use

The ZKTECO KR101M reads Mifare IC cards at 13.56 MHz and outputs 26 or 34 bit Wiegand data. It is built for door access systems that need a compact unit with an IP65 rated ABS and PVC housing.

Sustained operation across temperature

The reader runs from DC 5 to 16 V with a standard 12 V supply and functions between minus 10 °C and 70 °C at up to 90 percent relative humidity. Solid epoxy injection and reverse polarity protection keep it stable during continuous outdoor exposure.

Replaces basic proximity readers when Mifare

It upgrades installations that only read 125 kHz cards by adding 13.56 MHz Mifare capability with a 3 to 15 cm read range. The jump is worth it when sites need encrypted card formats and a single reader for both indoor and outdoor mounting.

Highlights

  • Read IC cards at 13.56 MHz up to 5 cm
  • Wiegand 26 or 34-bit output for controller integration
  • IP65 waterproof rating for indoor and outdoor use
  • Operates from -10 °C to 70 °C in harsh environments
  • Compact 78 x 43 x 16 mm epoxy-sealed ABS housing

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the KR101M draw when it runs continuously on a 12 V supply?

The reader operates on DC 5–16 V with a standard 12 V input; static current is low, so heat and noise stay minimal during all-day use.

Which controller or panel must I already have to use the Wiegand output?

Any access controller that accepts 26-bit or 34-bit Wiegand input — such as ZKTECO C3 series — will work directly with the reader.

Will the 13.56 MHz Mifare reader read the same 125 kHz proximity cards I already issue?

No, the KR101M only reads 13.56 MHz Mifare/IC cards; 125 kHz proximity cards require the KR101E model instead.
