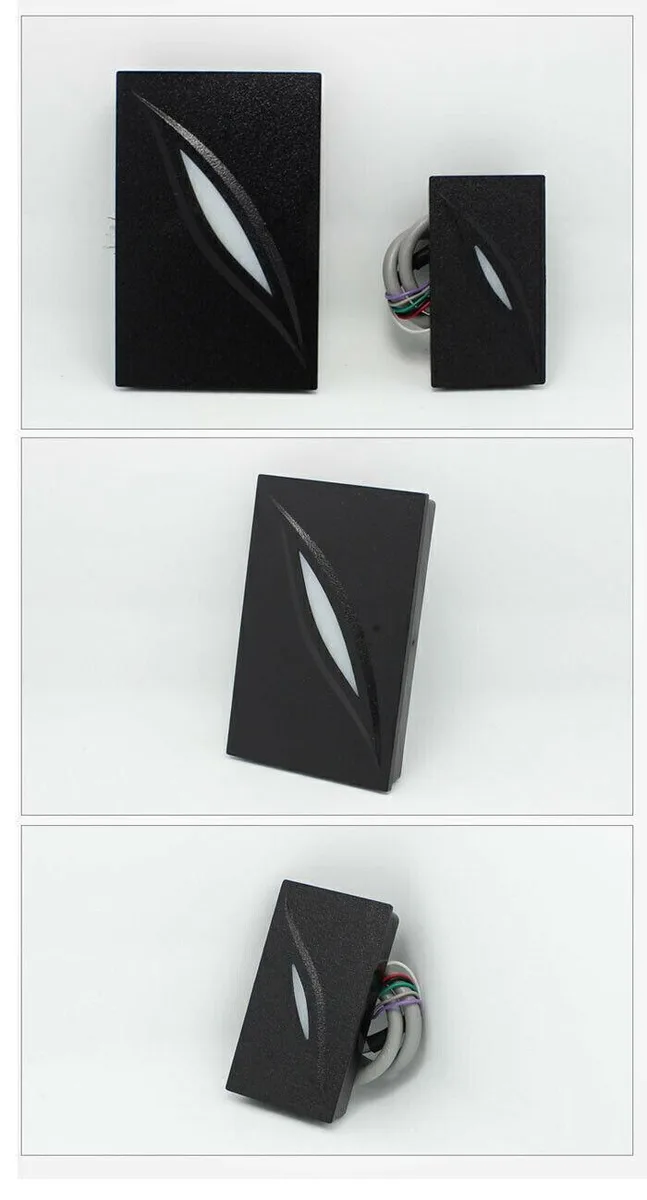

Black rectangular card reader, 78 by 43 by 16 mm, IP65 waterproof, ABS plus PVC finish, built-in dual-colour LED and buzzer

ZKTECO

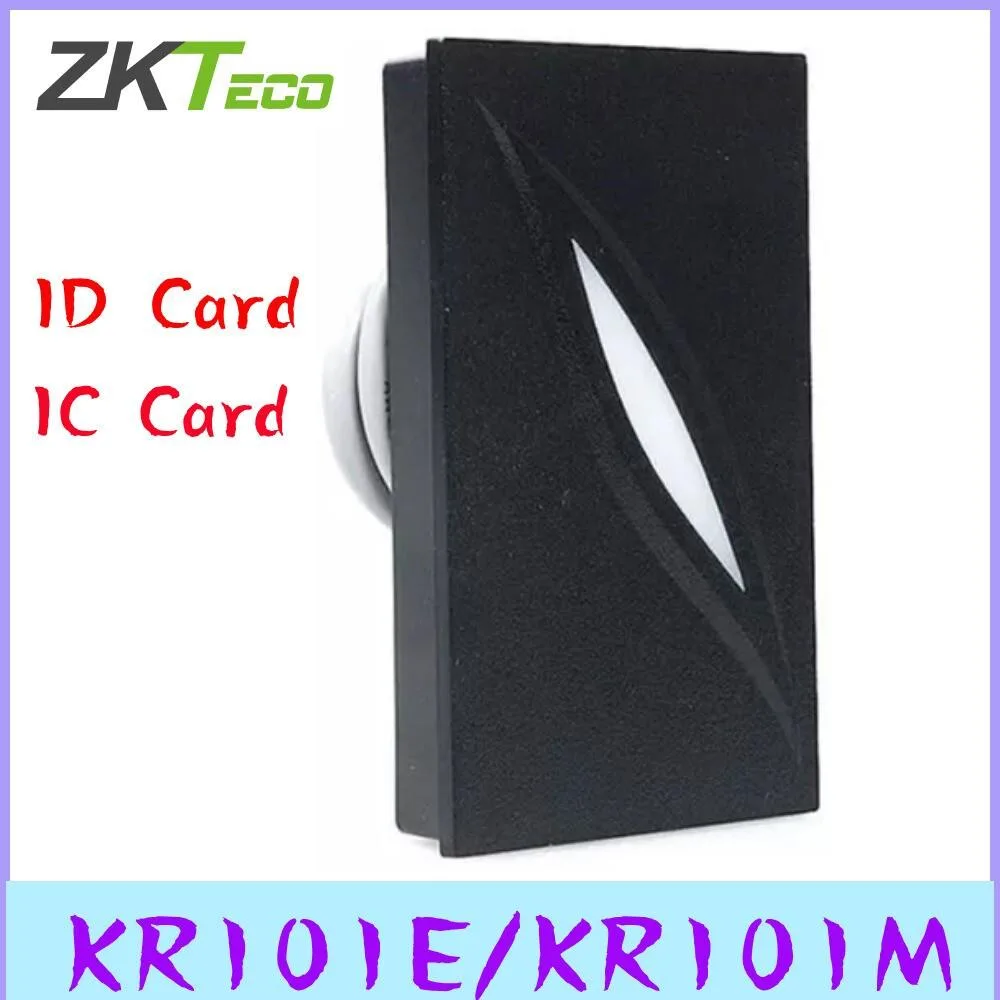

ZKTECO KR101E KR101M Waterproof Access Control Card Reader office equipment

SKU CH-JVF6-29R92

Waterproof IP65 card reader reads 125 kHz and 13.56 MHz credentials up to 15 cm, outputs Wiegand 26/34-bit, and operates from -10 °C to 70 °C

Opition: Select KR101E -ID Card

  • Weather-resistant IP65 rating protects against rain and dust
  • Wiegand 26/34-bit output integrates with existing access controllers
  • Reads 125 kHz proximity and 13.56 MHz Mifare credentials
  • Up to 10 cm read range for 125 kHz cards
  • Operates from -10 °C to 70 °C for outdoor use

Waterproof Wiegand Card Reader

The ZKTECO KR101E and KR101M are waterproof access control card readers designed for indoor and outdoor door entry systems. They connect to controllers via standard 26 or 34-bit Wiegand output and support both 125KHz proximity and 13.56MHz Mifare credentials. The IP65-rated epoxy-sealed housing operates from -10°C to 70°C.

Dual-Frequency Read Range and Headroom

The E series reads 125KHz cards up to 10cm away, while the M series reads 13.56MHz Mifare cards up to 5cm; the combined proximity range spans 3 to 15cm. Dual-colour LEDs and a built-in buzzer give immediate visual and audible feedback for granted or denied access. Power input accepts 5 to 16V DC with reverse polarity protection.

Mullion-Mount Upgrade for Legacy Readers

The slim 78 by 43 by 16mm black ABS and PVC body mounts directly on metal door frames or mullions where bulkier readers cannot fit. It replaces older single-frequency or non-waterproof units that lack Wiegand 34-bit support or external LED and buzzer control. The 100m communication distance suits extended wiring runs to central controllers.

Highlights

  • Weather-resistant IP65 rating protects against rain and dust
  • Wiegand 26/34-bit output integrates with existing access controllers
  • Reads 125 kHz proximity and 13.56 MHz Mifare credentials
  • Up to 10 cm read range for 125 kHz cards
  • Operates from -10 °C to 70 °C for outdoor use

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 26/34-bit Wiegand output connect to my existing access controller?

Yes, the reader outputs standard 26/34-bit Wiegand and can communicate up to 100 m, matching most legacy controllers that accept this format.

How do I confirm the reader is operating correctly once mounted?

The built-in dual-colour LED and loud buzzer give immediate visual and audible feedback for allowed or denied access events.

Does the package include mounting hardware and a power supply?

The unit itself is supplied; mounting screws and a 12 V DC power source are not included and must be sourced separately.
