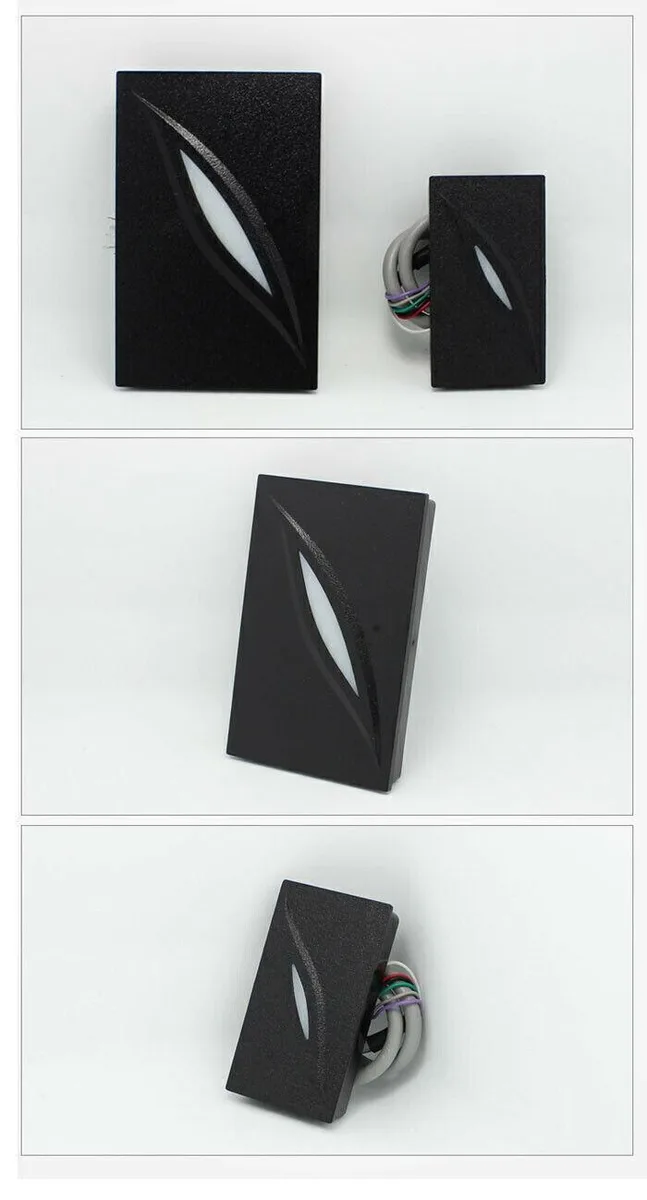

Black rectangular RFID card reader, IP65 waterproof, 78 by 43 by 16 mm

ZKTECO

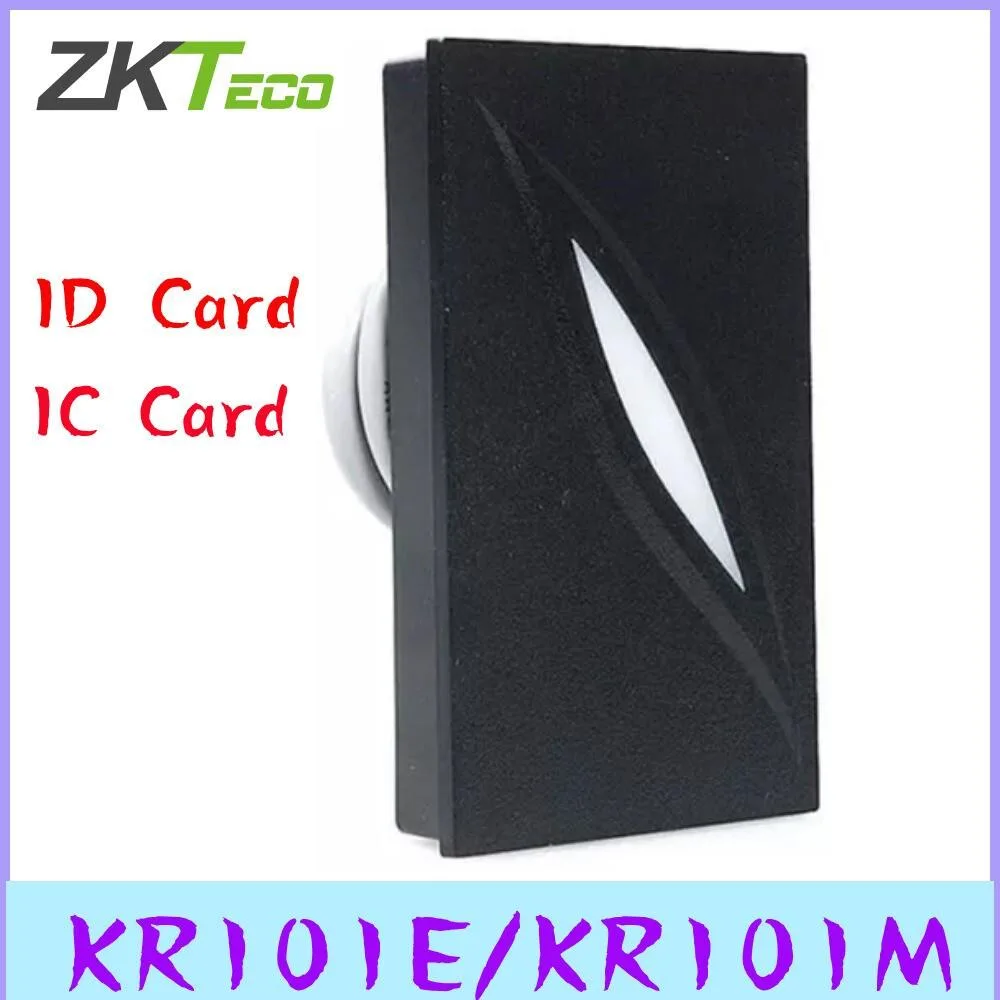

ZKTECO KR101 Waterproof RFID Card Reader Wiegand 26 34 IP65

SKU CH-92NH-0V6H9

Waterproof RFID card reader supporting 125KHz and 13.56MHz cards with Wiegand 26/34 output, IP65 rated for outdoor use

Opition: Select KR101E -ID Card

  • Weather-resistant IP65 rating suits outdoor door mounting
  • Dual-frequency reader handles 125 kHz and 13.56 MHz cards
  • Wiegand 26/34-bit output fits standard access controllers
  • Compact 78 × 43 × 16 mm body installs on metal frames
  • Built-in LED and buzzer give instant visual and audible feedback

Outdoor Access Reader

The ZKTECO KR101 is a waterproof RFID card reader built for door access control systems. It supports 125KHz proximity and 13.56MHz Mifare cards with a read range up to 10cm and 5cm respectively. The unit outputs standard 26 or 34bit Wiegand data for controller integration.

Rugged IP65 Housing

An ABS plus PVC body with solid epoxy injection achieves an IP65 waterproof rating for reliable outdoor operation. The compact 78 by 43 by 16mm profile mounts easily on metal door frames or mullions. Built-in dual-colour LEDs and a loudspeaker provide clear visual and audible access feedback.

Wiegand System Upgrade

This reader replaces older non-weatherproof keypads or readers that cannot withstand -10°C to 70°C temperatures. The 100m communication distance suits extended entrance lanes where shorter-range units fail. Buyers needing encrypted OSDP protocol or multi-technology credential support should specify a different model.

Highlights

  • Weather-resistant IP65 rating suits outdoor door mounting
  • Dual-frequency reader handles 125 kHz and 13.56 MHz cards
  • Wiegand 26/34-bit output fits standard access controllers
  • Compact 78 × 43 × 16 mm body installs on metal frames
  • Built-in LED and buzzer give instant visual and audible feedback

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the Wiegand 26/34 interface limit in practice?

The reader outputs Wiegand 26 or 34 bit data with a maximum communication distance of 100 metres.

What mounting surface and space does the KR101 require?

It fits a metal door frame or mullion and measures 78 by 43 by 16 millimetres.

How is the reader wired and which step is often missed?

Connect DC 12 V to the power terminals and the Wiegand data lines to the controller; the step often missed is enabling the external LED and buzzer control wires for status feedback.
