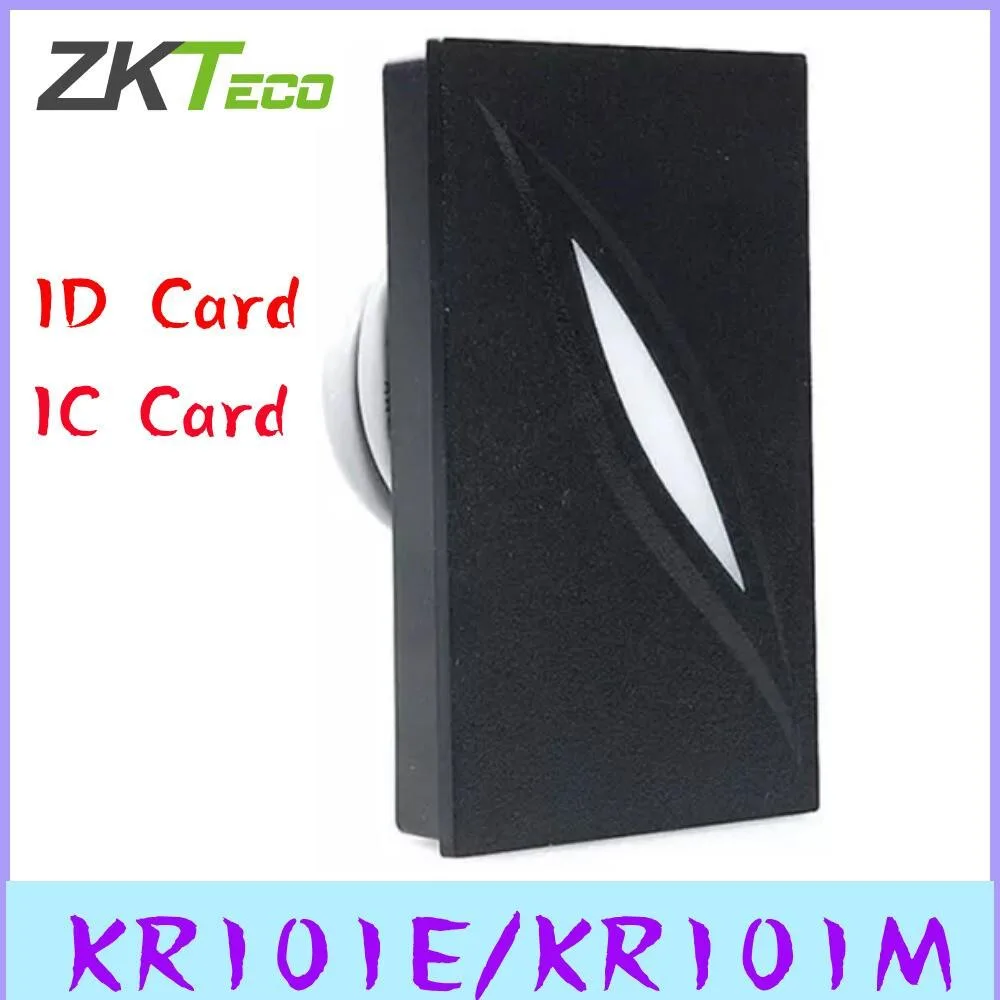

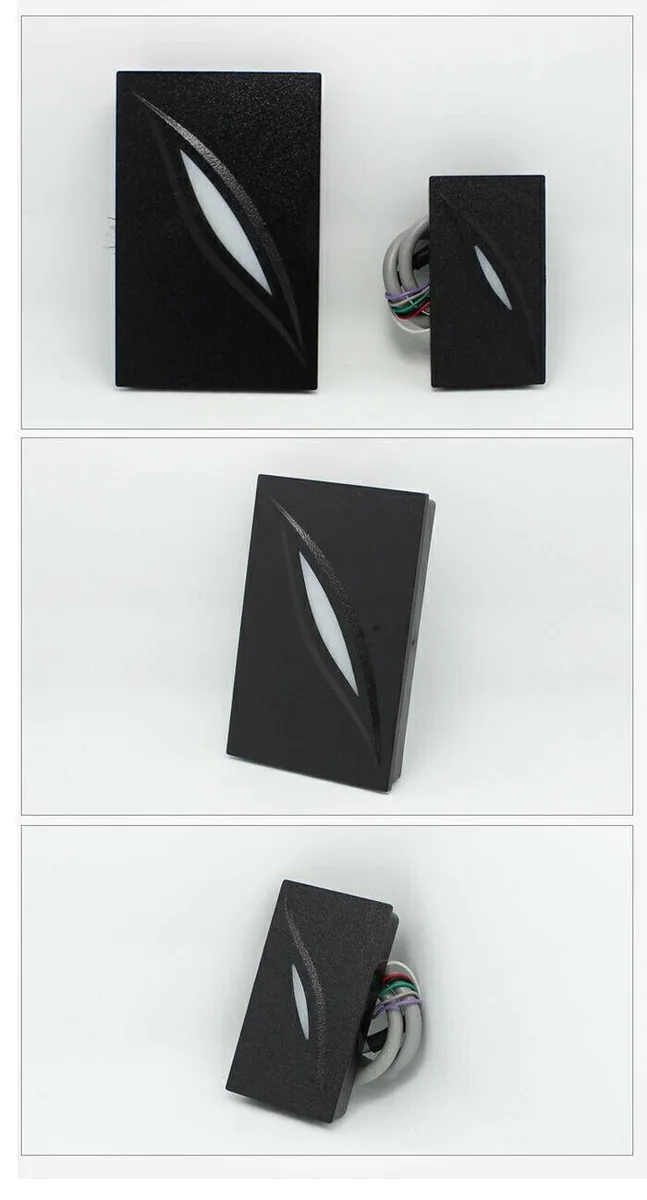

Black rectangular RFID reader with rounded edges, smooth matte finish, dual-colour LED indicator, 78 by 43 by 16 mm

ZKTECO

ZKTECO KR101E / KR101M RFID Reader 125KHz 13.56MHz Office Equipment

SKU CH-XQG0-M7KWV

Dual-frequency RFID reader handles 125 kHz and 13.56 MHz cards at up to 10 cm range, outputs Wiegand 26/34-bit, and withstands outdoor use with IP65 sealing and a -20 °C to +65 °C temperature span

Opition: Select KR101E -ID Card

  • Dual-frequency 125KHz and 13.56MHz reads both proximity and Mifare cards
  • IP65 waterproof with epoxy sealing suits indoor and outdoor mounting
  • Wiegand 26/34-bit output integrates with standard access controllers
  • Compact 78 x 43 x 16 mm fits metal door frames and mullions
  • DC 5–16 V supply with reverse-polarity protection simplifies wiring

Dual-frequency access reader

The ZKTECO KR101E and KR101M read both 125KHz proximity cards and 13.56MHz Mifare credentials. They output standard Wiegand 26 or 34-bit data to compatible controllers. An IP65-rated epoxy-sealed housing allows indoor or outdoor mounting on metal frames or mullions. Built-in dual-colour LED and buzzer give immediate visual and audible access feedback.

Verify controller and wiring first

Confirm your access controller accepts Wiegand 26 or 34-bit input and can supply DC 5 to 16 volts, typically 12 volts. The reader communicates up to 100 metres over Wiegand cable; plan the cable run accordingly. Operating temperature spans -10°C to 70°C with 10 to 90 percent relative humidity. The compact 78 by 43 by 16 millimetre body fits narrow mullion spaces.

Replaces single-frequency

Upgrade when you need both ID and IC card support on one device or require IP65 protection for exterior doors. The jump is worthwhile if your current reader lacks dual-frequency capability, has a shorter read range than 10 centimetres for 125KHz or 5 centimetres for 13.56MHz, or cannot withstand outdoor conditions. Buyers needing only one frequency or an indoor-only unit may find simpler alternatives.

Highlights

  • Dual-frequency 125KHz and 13.56MHz reads both proximity and Mifare cards
  • IP65 waterproof with epoxy sealing suits indoor and outdoor mounting
  • Wiegand 26/34-bit output integrates with standard access controllers
  • Compact 78 x 43 x 16 mm fits metal door frames and mullions
  • DC 5–16 V supply with reverse-polarity protection simplifies wiring

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the KR101E reader include mounting hardware or a power supply, or must I buy those separately?

The reader is supplied as a standalone unit; mounting screws and a 12 V DC power source are not included and must be sourced separately.

Should I choose the E series or the M series if I need the longer 125 kHz read distance?

The E series reads 125 kHz cards up to 10 cm, while the M series is limited to 5 cm at 13.56 MHz, so pick the E series for maximum proximity range.

What does the 100 m Wiegand communication distance mean when the reader is wired to a controller?

It means the Wiegand signal can travel up to 100 metres over suitable cable between the reader and the access controller without signal degradation.
