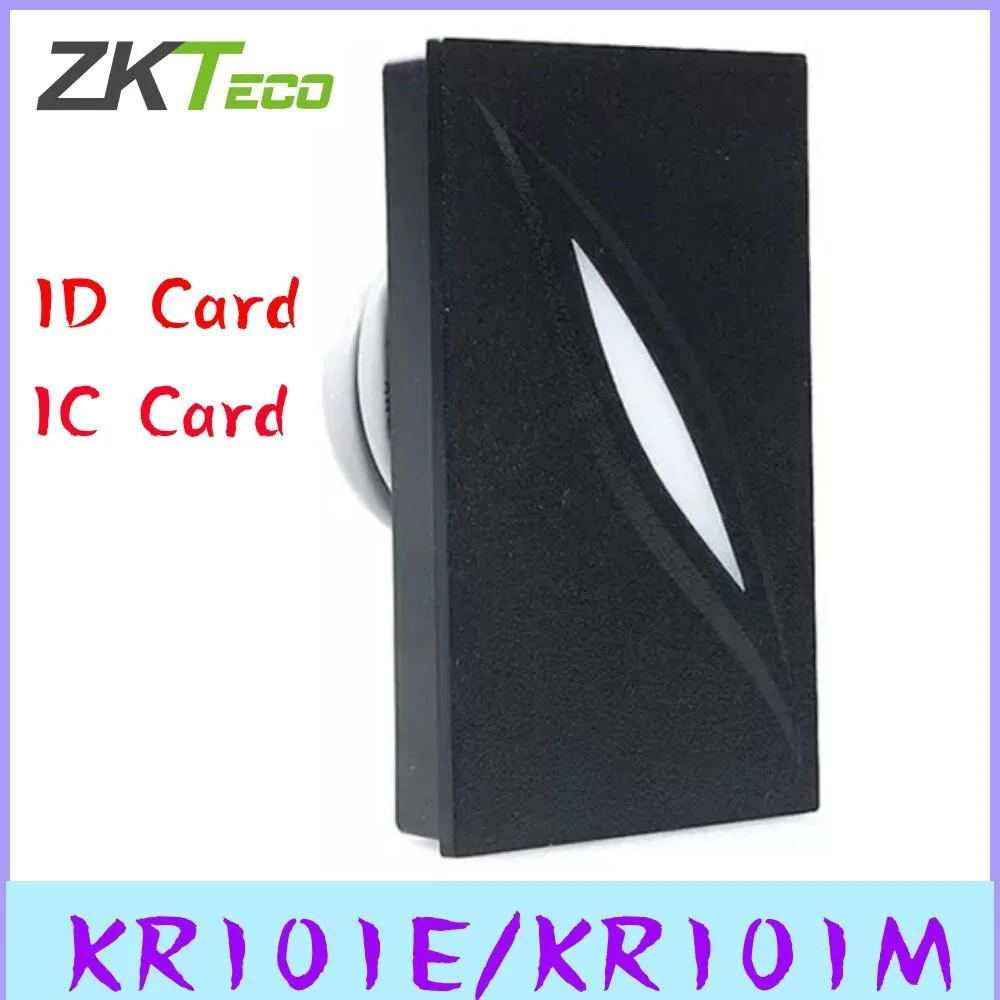

Black rectangular card reader with smooth matte finish and built-in LED indicator

ZKTECO

ZKTECO KR101E KR101M Wiegand Card Reader Office Equipment

SKU CH-00CV-D9F7Y

Wiegand card reader reads 125 kHz and 13.56 MHz cards up to 10 cm range with IP65 waterproofing for indoor or outdoor access control

Opition: Select KR101E -ID Card

  • Easy installation on metal frames with solid epoxy injection
  • Reads 125 kHz proximity cards up to 10 cm range
  • Reads 13.56 MHz Mifare cards up to 5 cm range
  • Waterproof IP65 rated for outdoor use from -20 °C to 65 °C
  • Wiegand 26/34-bit output with 100 m communication distance

ZKTECO KR101E/M Wiegand Card Reader

The ZKTECO KR101E and KR101M are Wiegand interface card readers designed for door access control systems. They support both 125KHz proximity and 13.56MHz Mifare IC cards, making them suitable for office security installations. The readers feature an IP65 waterproof rating and operate across a temperature range of -10°C to 70°C for indoor or outdoor use.

Check Wiegand Compatibility and Power Supply

Verify that your access control controller accepts standard 26 or 34bit Wiegand output before ordering. Ensure the site can provide a DC power supply between 5V and 16V, with 12V as the standard operating voltage. Confirm the mounting location accommodates the 78mm by 43mm by 16mm dimensions and allows for the specified proximity read range.

Replaces Standalone Keypads or Older Readers

This unit upgrades installations that currently rely on keypad-only entry or older non-waterproof readers lacking Wiegand integration. The jump is worth it when you need dual-frequency card support, external LED and buzzer control, and a robust ABS+PVC housing rated IP65 for exposed door frames. It is not for buyers who need biometric verification or controllers with built-in card enrollment.

Highlights

  • Easy installation on metal frames with solid epoxy injection
  • Reads 125 kHz proximity cards up to 10 cm range
  • Reads 13.56 MHz Mifare cards up to 5 cm range
  • Waterproof IP65 rated for outdoor use from -20 °C to 65 °C
  • Wiegand 26/34-bit output with 100 m communication distance

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the box include a power supply or just the reader?

The reader ships alone and requires a DC 5 to 16 V source, typically 12 V, which must be provided separately.

Should I choose the E or M version for my cards?

Choose KR101E for 125 KHz proximity cards with up to 10 cm read range, or KR101M for 13.56 MHz Mifare cards with up to 5 cm read range.

How far can I run the Wiegand cable to the controller?

The Wiegand 26/34 bit interface supports communication up to 100 m between the reader and the access controller.
