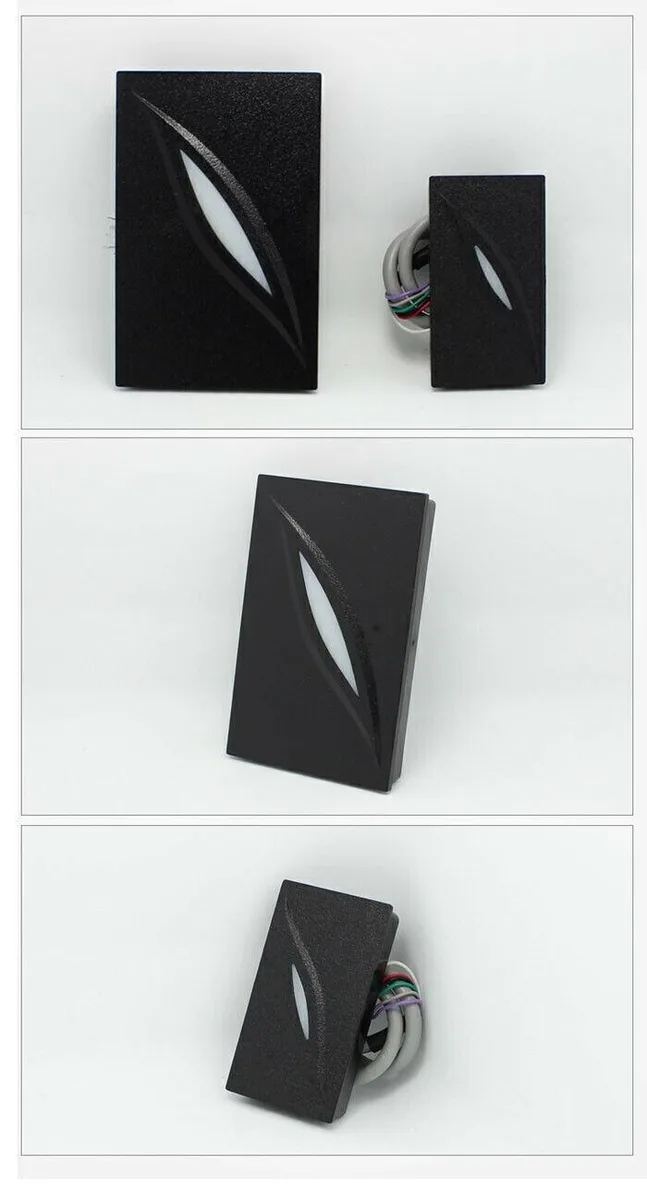

Black rectangular access-control reader, 78 by 43 by 16 mm, IP65 rated, with dual-colour LED and buzzer

ZKTECO

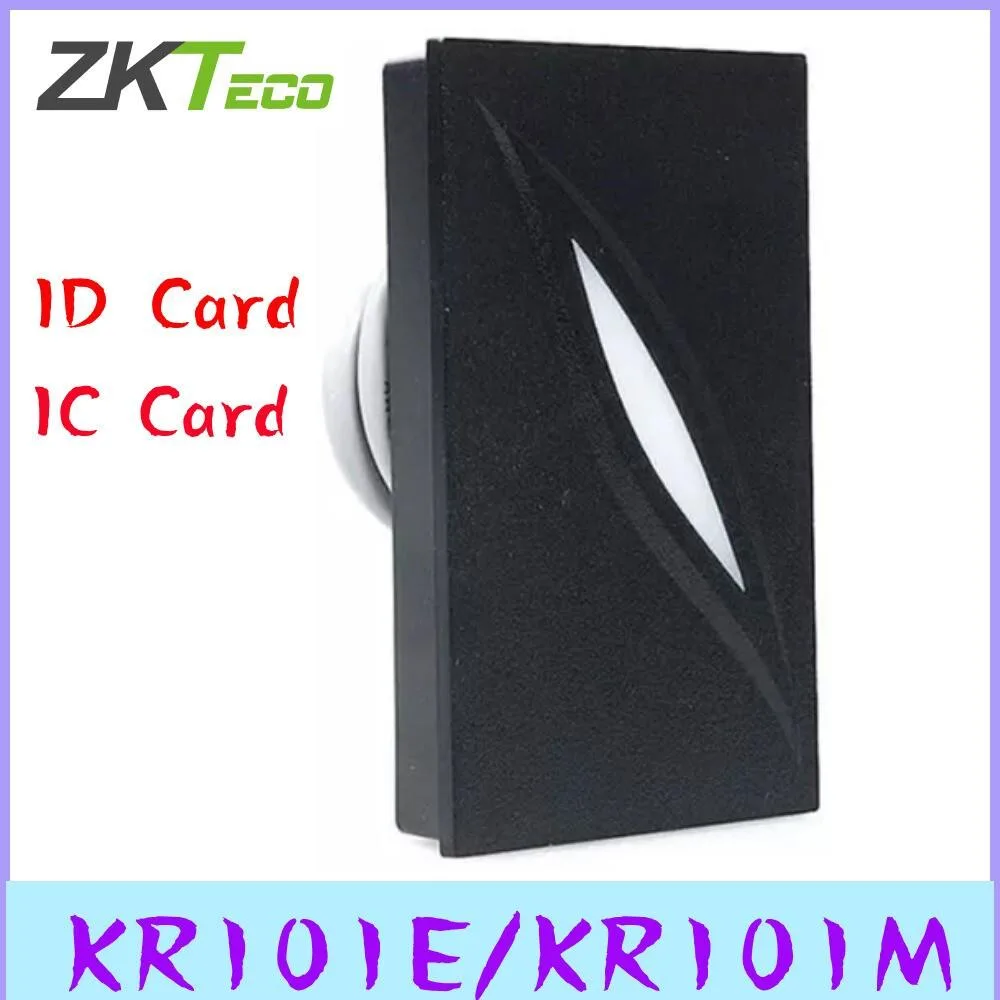

ZKTECO KR101E KR101M Wiegand Reader IP65 office equipment

SKU CH-6QY0-KS2AT

Wiegand access reader reads 125 kHz proximity cards up to 10 cm and 13.56 MHz Mifare cards up to 5 cm with IP65 waterproofing

Opition: Select KR101E -ID Card

  • Reads ID and IC cards for flexible access control
  • Up to 10 cm read range with 125 kHz proximity cards
  • IP65 waterproof rating suits outdoor door mounting
  • Wiegand 26/34-bit output integrates with standard controllers
  • Operates from −20 °C to +65 °C for year-round reliability

Access Control Reader

The ZKTECO KR101E and KR101M are Wiegand proximity readers designed for door access control systems. They support both 125 kHz ID and 13.56 MHz Mifare IC cards for versatile credential management. The units feature an IP65 waterproof rating and an operating temperature range of -10 °C to 70 °C for reliable outdoor installation. Built-in dual-colour LEDs and a buzzer provide immediate visual and audible access feedback.

Wiegand Integration

The readers output standard 26-bit or 34-bit Wiegand signals over a communication distance of up to 100 metres. They operate on a DC 5 V to 16 V supply with a standard 12 V input and include reverse polarity protection. The compact 78 mm by 43 mm by 16 mm ABS and PVC housing mounts easily on metal door frames or mullions. External LED and buzzer control lines allow the host controller to drive the indicators directly.

Upgrade From Standalone Keypads

This reader replaces basic keypads or single-technology proximity units by adding dual-frequency card support and a rugged IP65 enclosure. The jump is worthwhile when a site requires both ID and Mifare credentials on the same door or when the installation is exposed to weather. It is not suited for installations that need long-range hands-free reading beyond 15 cm or for systems that do not accept a Wiegand interface.

Highlights

  • Reads ID and IC cards for flexible access control
  • Up to 10 cm read range with 125 kHz proximity cards
  • IP65 waterproof rating suits outdoor door mounting
  • Wiegand 26/34-bit output integrates with standard controllers
  • Operates from −20 °C to +65 °C for year-round reliability

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How far can the 125 kHz proximity reader reliably detect a card?

The E series reads up to 10 cm and the M series up to 5 cm, with an overall proximity range of 3–15 cm.

What heat or noise should I expect when the reader runs continuously outdoors?

It operates silently with no fan, handles -10 °C to 70 °C, and draws only 5–16 V DC at low static current.

Which controller and power source must I already have for this Wiegand reader to work?

A 12 V DC supply and a panel that accepts 26/34-bit Wiegand input over up to 100 m cable.
