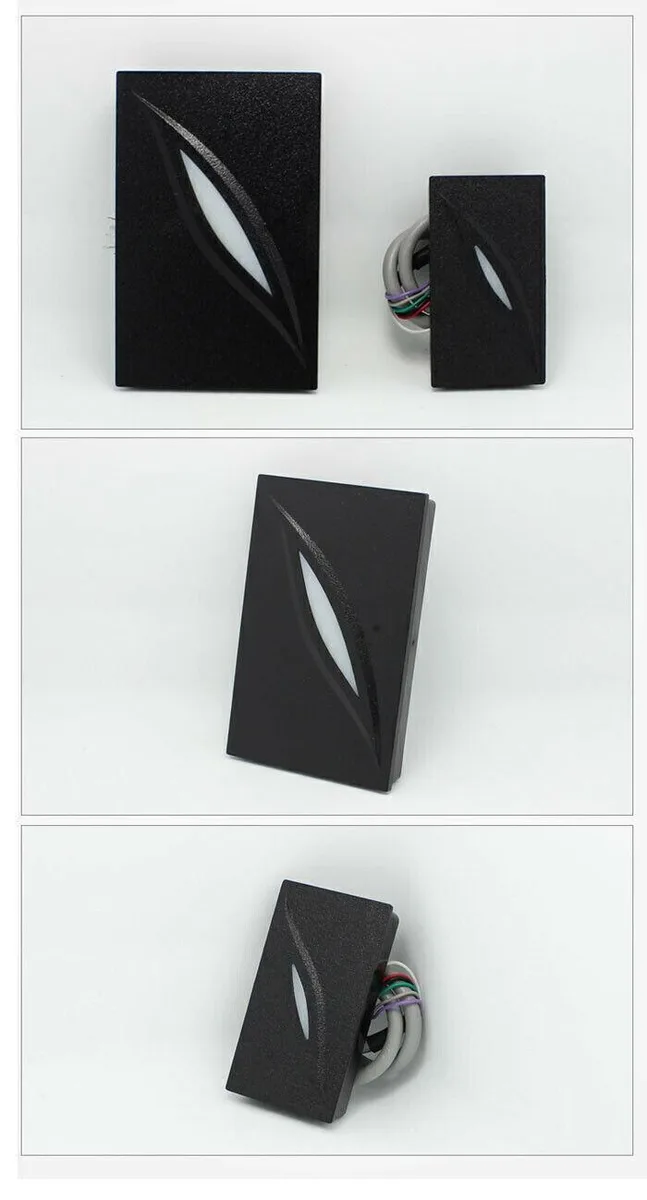

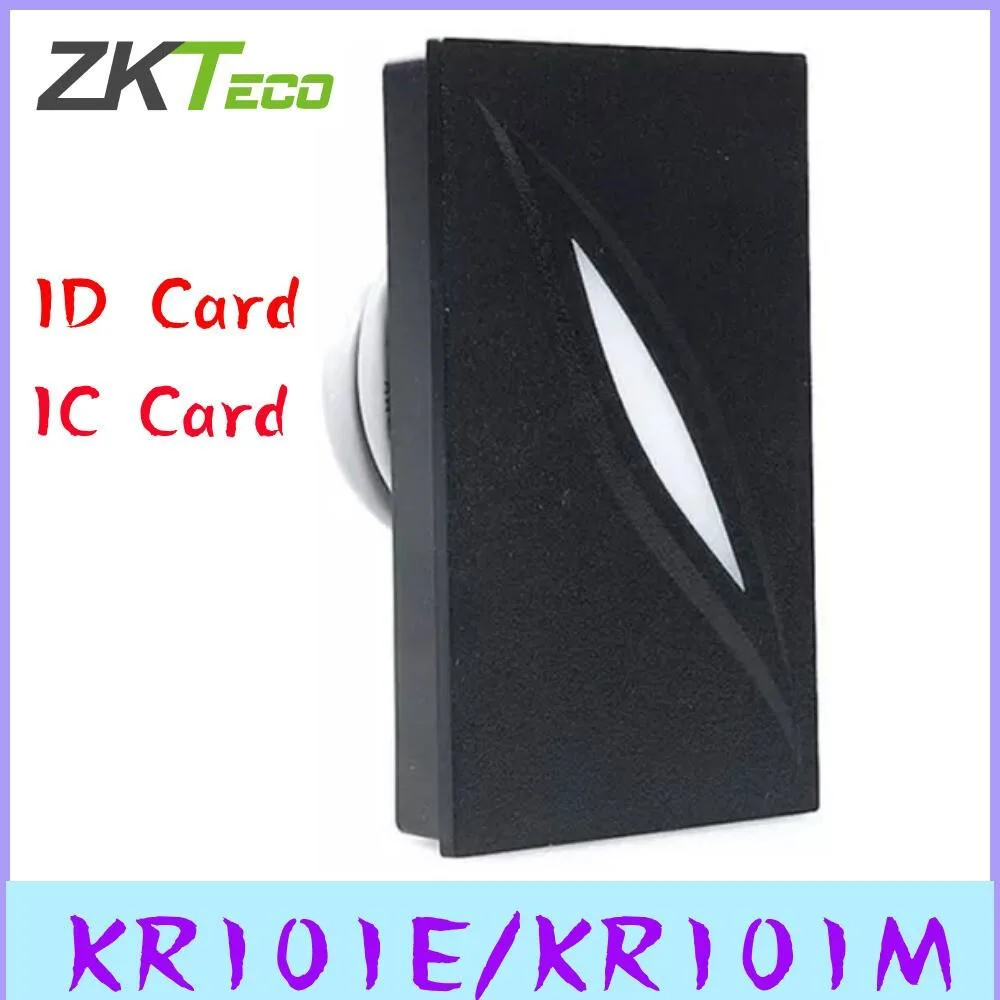

Black rectangular card reader, 78 by 43 by 16 mm, IP65 waterproof ABS and PVC housing

ZKTECO

ZKTECO KR101M IC Card Reader IP65 office equipment

SKU CH-2QVH-JTZS7

An IP65-rated Wiegand IC card reader for indoor or outdoor door access, reading Mifare cards up to 5 cm away

Opition: Select KR101M - IC Card

  • Reads IC Mifare cards at 13.56 MHz frequency
  • IP65 waterproof rating suits outdoor door access control
  • Wiegand 26/34 bit output connects to C3 controllers
  • Operates from -10 °C to 70 °C temperature range
  • Compact 78 x 43 x 16 mm fits metal door frames

ZKTECO KR101M IC Card Reader

The ZKTECO KR101M is an IP65-rated proximity reader designed for door access control systems. It reads 13.56 MHz Mifare IC cards and outputs standard Wiegand 26/34-bit signals for connection to compatible controllers. The unit suits indoor or outdoor entry points where a compact, weatherproof credential reader is required.

Epoxy-Sealed Housing with Mullion Mount

The reader is encapsulated in solid epoxy within an ABS and PVC black resin shell, achieving IP65 waterproof protection and operating from -10 °C to 70 °C. It mounts directly on a metal door frame or mullion using the 78 by 43 by 16 mm footprint. Built-in dual-colour LEDs and a loudspeaker provide visual and audible access feedback, while reverse polarity protection guards the DC 5 to 16 V supply.

Upgrade from Non-Weatherproof

This model replaces older indoor-only readers or 125 kHz proximity units when Mifare IC card support and outdoor durability are needed. The jump is worthwhile for sites moving to 13.56 MHz credentials, requiring IP65 sealing, or installing on exposed mullions where epoxy potting and a 100 m Wiegand cable run simplify wiring.

Highlights

  • Reads IC Mifare cards at 13.56 MHz frequency
  • IP65 waterproof rating suits outdoor door access control
  • Wiegand 26/34 bit output connects to C3 controllers
  • Operates from -10 °C to 70 °C temperature range
  • Compact 78 x 43 x 16 mm fits metal door frames

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What Wiegand bit formats does the KR101M reader output?

It outputs standard 26-bit or 34-bit Wiegand data, with 34-bit as the default.

What are the exact mounting dimensions for the reader?

The unit measures 78 mm wide, 43 mm high and 16 mm deep, designed for metal door frames or mullions.

How is the reader wired for power and data, and what mistake should be avoided?

Connect DC 5–16 V (typically 12 V) to the power terminals and the Wiegand data lines to the controller; reverse-polarity protection prevents damage if power wires are swapped.
