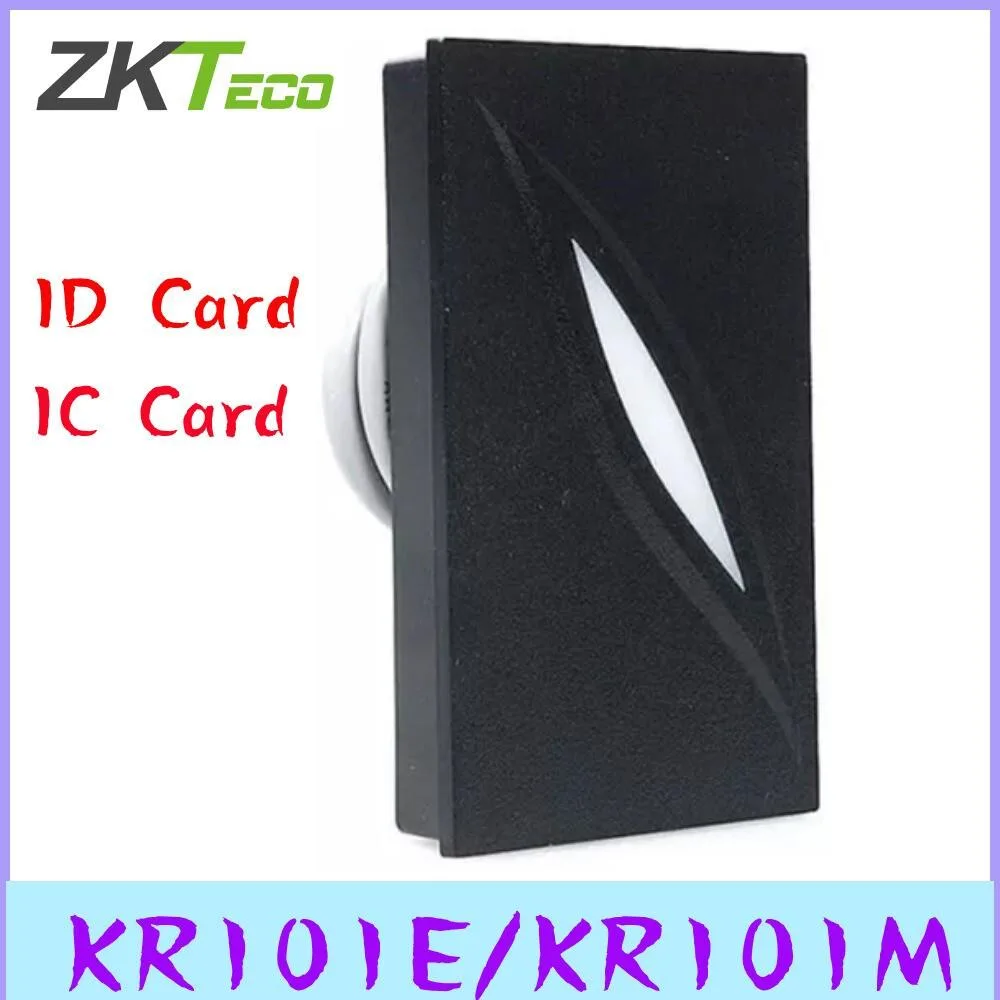

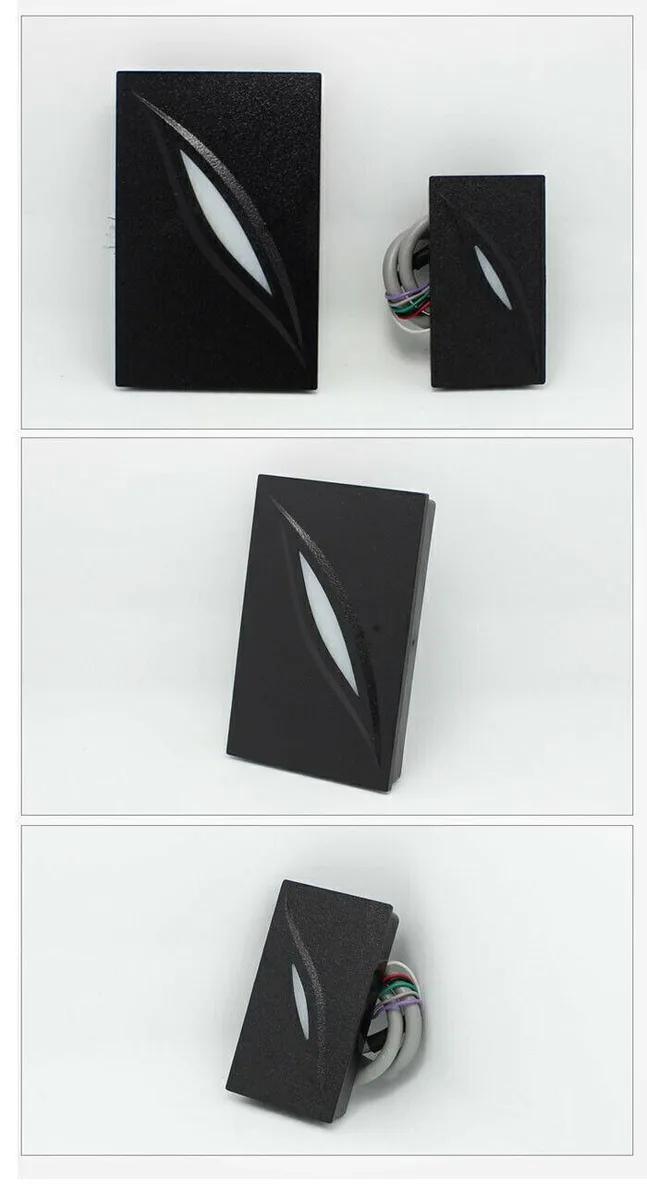

Black rectangular card reader with smooth matte finish and built-in LED indicator

ZKTECO

ZKTECO KR101M IC Card Reader Wiegand 26 34 IP65 office equipment

SKU CH-AKPW-EAHH8

Waterproof IP65 RFID reader accepts 13.56 MHz IC cards and outputs Wiegand 26/34-bit for access control systems

Opition: Select KR101M - IC Card

  • Waterproof IP65 rating protects against dust and water jets
  • Reads IC Mifare cards at 13.56 MHz up to 15 cm range
  • Wiegand 26/34-bit output integrates with access controllers
  • Operates from -10 °C to 70 °C for outdoor use
  • Compact 78 x 43 x 16 mm ABS+PVC housing fits mullion mounting

ZKTECO KR101M IC Card Reader

The KR101M is a compact RFID reader that operates at 13.56 MHz and reads Mifare IC cards. It communicates through a standard Wiegand 26 or 34 bit output and is housed in an IP65-rated black ABS and PVC enclosure measuring 78 by 43 by 16 mm. The unit accepts a DC supply from 5 to 16 volts.

Access control installers needing outdoor-rated

This reader suits installers who need a waterproof device for door entry systems using Wiegand 26 or 34 bit signalling. It is not for projects that require 125 kHz proximity credentials or readers with interfaces other than Wiegand.

13.56 MHz Mifare with Wiegand 26/34 output

The single specification that decides fit is the 13.56 MHz Mifare card technology combined with a fixed Wiegand 26 or 34 bit output; the controller must support that exact frequency and data format.

Highlights

  • Waterproof IP65 rating protects against dust and water jets
  • Reads IC Mifare cards at 13.56 MHz up to 15 cm range
  • Wiegand 26/34-bit output integrates with access controllers
  • Operates from -10 °C to 70 °C for outdoor use
  • Compact 78 x 43 x 16 mm ABS+PVC housing fits mullion mounting

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often should I check the epoxy sealing on the KR101M reader for outdoor use?

The solid epoxy injection and IP65 rating protect the reader from water ingress; routine visual inspection every 12 months is sufficient unless physical damage occurs.

What limits the maximum cable run when the reader operates continuously on a 12 V supply?

The Wiegand interface supports communication up to 100 m; voltage drop over longer cables becomes the practical limit for sustained operation.

Does the built-in buzzer and dual-colour LED add noticeable heat or power draw during all-day operation?

The reader draws standard DC 12 V with low static current; the buzzer and LED are low-power indicators that do not raise temperature beyond the -10 °C to 70 °C operating range.
