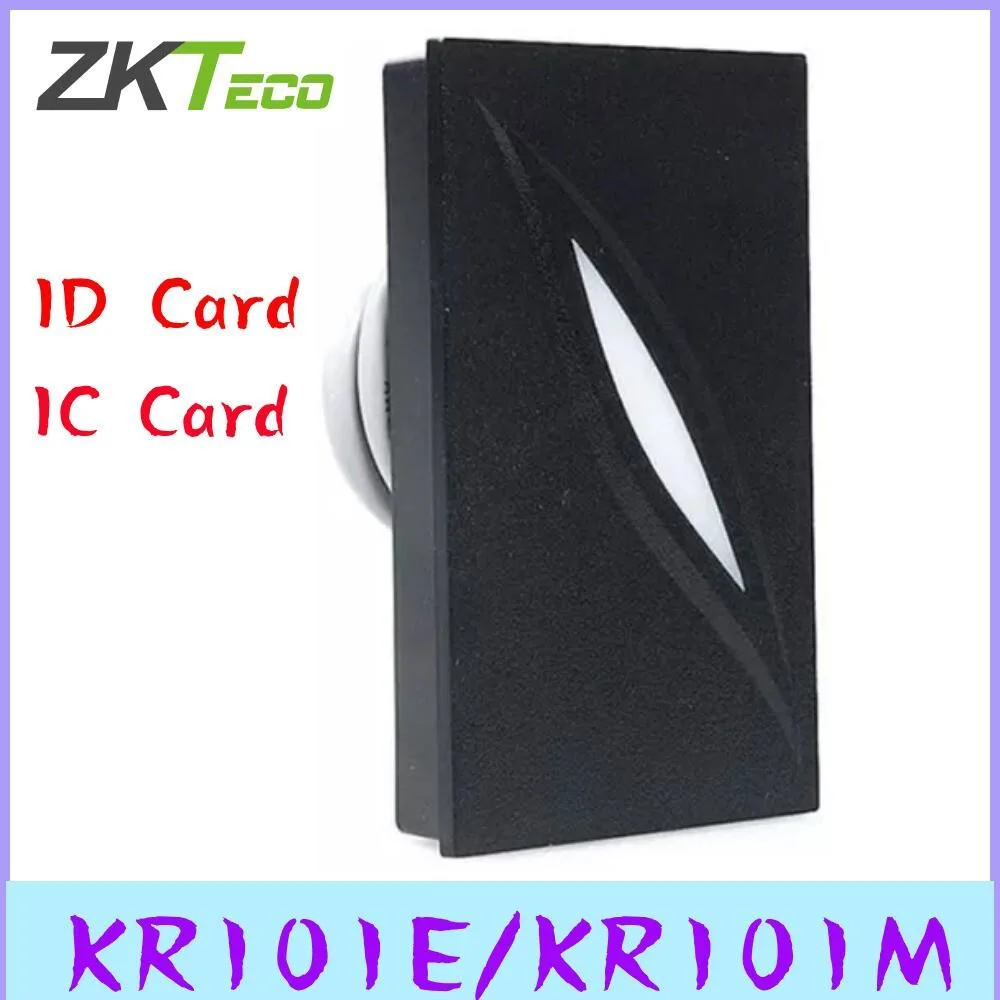

Black rectangular card reader with LED indicator, 78 by 43 by 16 millimetres, IP65 rated

ZKTECO

ZKTECO KR101M IC Card Reader Wiegand 26 34 IP65

SKU CH-FQDD-1QT72

Waterproof IP65 access-control reader reads 13.56 MHz Mifare IC cards up to 15 cm and outputs 26/34-bit Wiegand over 100 m on 12 V DC

Opition: Select KR101M - IC Card

  • Waterproof IP65 withstands outdoor rain and dust
  • Wiegand 26/34 output integrates with standard controllers
  • Reads 13.56 MHz Mifare cards at up to 5 cm range
  • Compact 78×43×16 mm housing fits metal door frames
  • Operating range -10 °C to 70 °C suits extreme climates

Access Control Reader for IC Cards

The ZKTECO KR101M reads 13.56 MHz Mifare IC cards at up to 5 cm range. It outputs standard Wiegand 26 or 34 bit data and connects to compatible controllers such as the C3 series. The unit is built for indoor and outdoor mounting on metal door frames or mullions. Its IP65 rating and epoxy-sealed ABS+PVC housing protect against water and dust ingress.

Outdoor Installations Needing Mifare Support

Suits projects that require a compact, weatherproof Mifare reader with Wiegand output for a single door. The built-in dual-colour LED and buzzer give clear visual and audible access feedback. Buyers needing 125 kHz proximity card support should look elsewhere, as this model reads only 13.56 MHz IC credentials. It also lacks onboard user storage, so a separate controller is required for access decisions.

Wiegand 26/34 Output with 100 m Cable Run

The reader transmits Wiegand signals up to 100 m over standard cable, giving flexibility for controller placement. Operating voltage spans DC 5–16 V with 12 V typical, drawing minimal static current. It functions from -10 °C to 70 °C and 10–90 % relative humidity. The 78×43×16 mm footprint fits narrow mullions, while the 3–15 cm proximity range covers typical badge presentation distances.

Highlights

  • Waterproof IP65 withstands outdoor rain and dust
  • Wiegand 26/34 output integrates with standard controllers
  • Reads 13.56 MHz Mifare cards at up to 5 cm range
  • Compact 78×43×16 mm housing fits metal door frames
  • Operating range -10 °C to 70 °C suits extreme climates

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What power supply voltage range does the KR101M require to operate?

The reader accepts a DC input from 5 V up to 16 V, with 12 V as the standard operating voltage.

Can the reader connect to an existing access controller that only supports 26-bit Wiegand?

Yes, the device outputs both 26-bit and 34-bit Wiegand formats, so it works with controllers limited to 26-bit.

How can I confirm the reader is powered and communicating after installation?

The built-in dual-colour LED shows access granted or denied status, and the internal buzzer sounds on each successful read.
