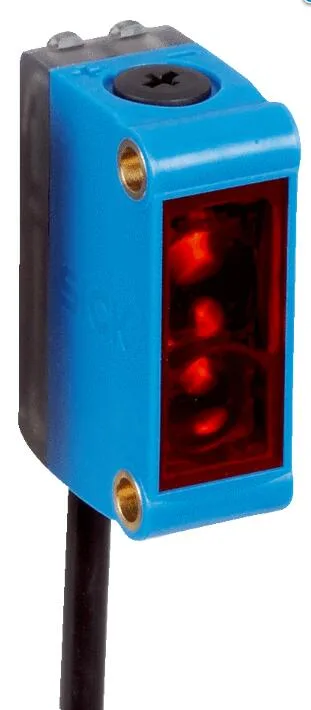

ZIBOO SICK GL6-P1212 Photoelectric Sensor PNP 6m Range
Miniature photoelectric retro-reflective sensor with PNP output, 6 m maximum range, 2 m cable and IP67 housing

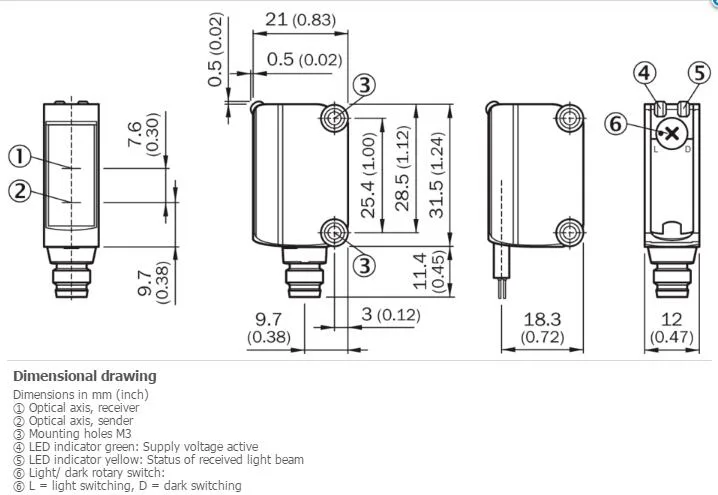

- Compact 12 mm x 31.5 mm x 21 mm housing fits tight spaces
- PinPoint LED gives visible red light spot Ø 8 mm at 350 mm
- PNP output with selectable light/dark switching up to 1,000 Hz
- IP67 enclosure rating withstands dust and water ingress
- Supplied with stainless steel bracket and P250 reflector for quick mounting
Miniature photoelectric sensor for industrial
The ZIBOO SICK GL6-P1212 is a compact photoelectric retro-reflective sensor designed for automated detection tasks. Its rectangular 12 mm by 31.5 mm by 21 mm housing fits tight machine spaces. The sensor operates on 10 to 30 V DC supply voltage, making it suitable for standard industrial control circuits. It targets engineers and technicians needing reliable presence sensing.
IP67-rated ABS/PC housing
The plastic housing combines ABS and PC materials with PMMA optics, sealed to IP67 for dust and water resistance. A 2-metre three-wire PVC cable provides fixed wiring without separate connectors. Supplied stainless steel mounting bracket 1.4301/304 and P250 reflector simplify installation on frames or panels. Potentiometer adjustment over 270 degrees allows precise range setting.
PinPoint LED at 650 nm
Visible red PinPoint LED produces an 8 mm light spot at 350 mm distance for accurate alignment. Maximum sensing range reaches 6 metres with a 5-metre operating range. PNP output switches up to 100 mA with light/dark mode selectable via selector. Response time under 625 microseconds supports fast production lines. Operating temperature spans –25 °C to +55 °C.
Highlights
- Compact 12 mm x 31.5 mm x 21 mm housing fits tight spaces
- PinPoint LED gives visible red light spot Ø 8 mm at 350 mm
- PNP output with selectable light/dark switching up to 1,000 Hz
- IP67 enclosure rating withstands dust and water ingress
- Supplied with stainless steel bracket and P250 reflector for quick mounting
Specifications
| Brand | Sick |
|---|---|
| Model | SICK GL6-P1212 |
Questions about this item
What is the maximum sensing range of the GL6-P1212 retro-reflective sensor?
The maximum sensing range is 6 m with the supplied P250 reflector; the operating range is 5 m.
What are the housing dimensions and mounting bracket material for the GL6-P1212?
The rectangular housing measures 12 mm x 31.5 mm x 21 mm and includes a stainless steel 1.4301 mounting bracket.
How is the GL6-P1212 wired and which step is commonly missed during installation?
It uses a 3-wire, 2 m PVC cable for 10–30 V DC supply; the light/dark selector must be set to match the required switching mode.
