ZIBOO IME12-04BPSZW2S inductive proximity sensor PNP 4mm M12 electrician tool
A flush-mount M12 inductive sensor with 4 mm range, PNP normally-open output, 2 kHz switching, IP67 metal housing and 2 m PVC cable for 10–30 V DC systems
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Detects metal at 4 mm range with 3.24 mm safe distance
- Switches at 2,000 Hz for fast response on production lines
- PNP normally-open output works with 10–30 V DC control systems
- IP67-rated nickel-plated brass housing survives –25 °C to +75 °C environments
- 2 m PVC cable with short-circuit and reverse-polarity protection built in

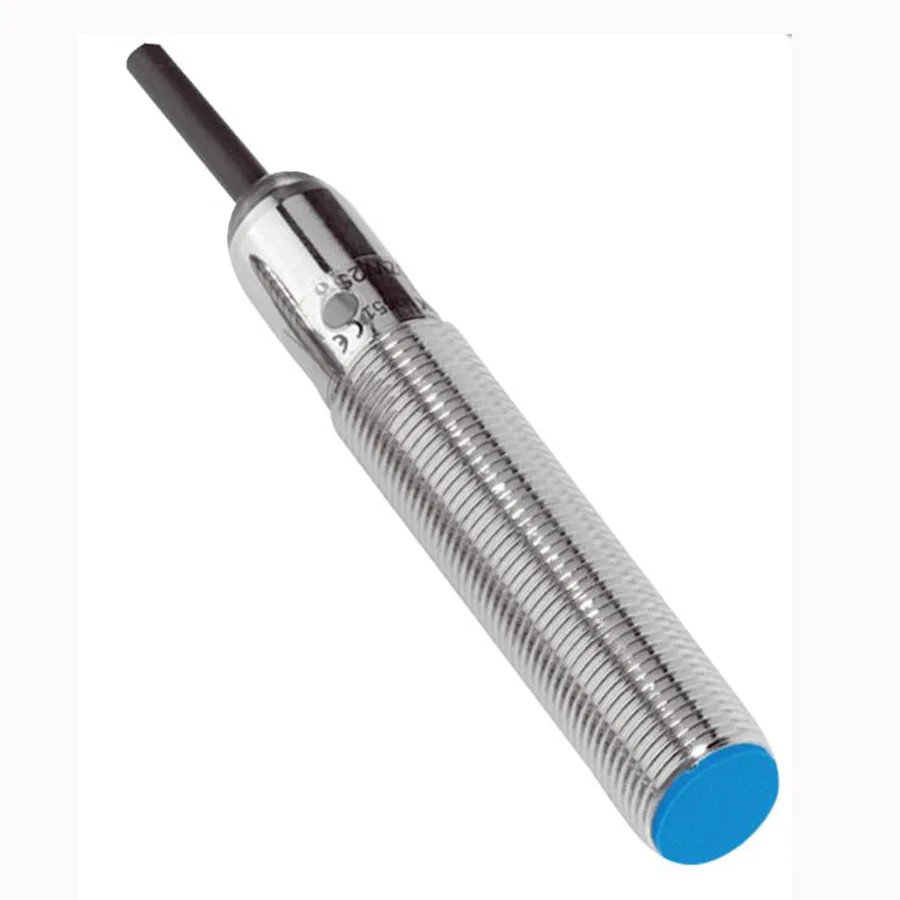

M12 inductive proximity sensor PNP
This sensor detects metal objects at a four millimetre range with a flush mount design. It operates on ten to thirty volts DC and switches at two thousand hertz. The output is PNP normally open with a two metre three-wire cable.
Suited for machine monitoring not long-range
The unit fits automated equipment that needs reliable presence sensing in tight spaces. Its IP67 nickel-plated brass housing resists oil and coolant. Buyers needing a greater sensing distance or a non-flush mounting style should consider other models.
Four millimetre sensing range decides fit
The safe sensing range is three point two four millimetres and the switching hysteresis is five percent. At twenty-five degrees Celsius the reproducibility is two percent. These figures determine whether the sensor meets the application tolerance.
Highlights
- Detects metal at 4 mm range with 3.24 mm safe distance
- Switches at 2,000 Hz for fast response on production lines
- PNP normally-open output works with 10–30 V DC control systems
- IP67-rated nickel-plated brass housing survives –25 °C to +75 °C environments
- 2 m PVC cable with short-circuit and reverse-polarity protection built in
Specifications
| Brand | ZIBOO |
|---|---|
| Model | IME12-04BPSZW2S |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
How do I install the M12 × 1 threaded sensor and what step is often missed?
Screw the nickel-plated brass housing into an M12 × 1 threaded hole, tightening to no more than 12 Nm; the flush-mount design requires a clear 4 mm sensing face, so do not recess the sensor deeper than the thread length of 48 mm.
What maintenance or replacement will this inductive proximity sensor need later?
The sensor has no moving parts; its PVC-jacketed 3-wire cable (Ø 3.9 mm, 0.25 mm² conductors) should be inspected periodically for abrasion or cuts, and the IP67-rated housing cleaned if debris builds up on the PA 66 sensing face.
What limit appears first during continuous operation at the 2 000 Hz switching frequency?
The 200 mA continuous current rating (Ia) of the PNP output is the first hard limit; exceeding it triggers short-circuit protection, while the 10 V–30 V DC supply must stay within ripple ≤ 10 % and the ambient temperature must remain between –25 °C and +75 °C.
