Cylindrical nickel-plated brass sensor with red plastic face M12 thread 4mm range

ZIBOO

ZIBOO IME12-04BPSZC0K Inductive Proximity Sensor PNP 4mm M12 electrician tool

SKU CH-H4YG-8YNJ2 MPN IME12-04BPSZC0K

A flush-mount M12 inductive proximity sensor with 4 mm sensing range, PNP NO output, 2,000 Hz switching frequency and IP67-rated nickel-plated brass housing

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Detects metal at 4 mm flush range
  • Switches up to 2,000 Hz for fast signals
  • PNP normally-open output suits DC controls
  • IP67 metal housing survives –25 °C to +75 °C
  • M12 4-pin connector enables quick wiring

M12 Inductive Sensor for Flush Mounting

The ZIBOO IME12-04BPSZC0K is a cylindrical inductive proximity sensor with a 4 mm sensing range and a short M12 × 1 metal housing. It provides a PNP normally-open output on a 4-pin M12 connector and operates on 10 to 30 V DC. The IP67-rated brass body suits industrial automation and machine-monitoring tasks where a compact flush mount is required.

Wiring and Mounting Notes

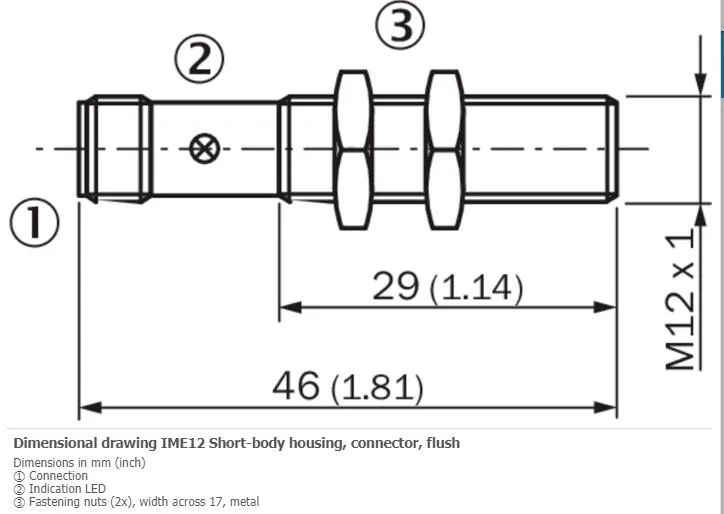

A DC 3-wire connection mates with the male M12 plug; ensure the supply stays within 10 to 30 V DC with ripple below 10 %. The sensor draws 10 mA and delivers up to 200 mA continuous current with short-circuit, reverse-polarity and power-up pulse protection. Tighten the M12 thread to no more than 12 Nm; the 29 mm thread length and 46 mm overall body fit standard mounting brackets without special tools.

Pre-Installation Checks

Verify that the target material and mounting geometry allow the 3.24 mm safe sensing range and that ambient temperature stays between –25 °C and +75 °C. Confirm the control system accepts a PNP NO signal at up to 2,000 Hz switching frequency and tolerates a 2 V voltage drop. The nickel-plated brass housing and PA 66 sensing face resist to IP67, so check cable routing and connector sealing for the intended environment.

Highlights

  • Detects metal at 4 mm flush range
  • Switches up to 2,000 Hz for fast signals
  • PNP normally-open output suits DC controls
  • IP67 metal housing survives –25 °C to +75 °C
  • M12 4-pin connector enables quick wiring

Specifications

BrandSICK
ModelIME12-04BPSZC0K
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How can I verify the IME12-04BPSZC0K is operating correctly after installation?

Power the sensor with 10 V DC to 30 V DC and bring a metal target within 4 mm of the sensing face; the PNP NO output should switch, indicated by the load activating at up to 200 mA.

What comes in the box and what must I source separately?

The box contains one IME12-04BPSZC0K sensor with an M12 x 1 thread, 46 mm housing length and 4-pin M12 male connector; you must supply a compatible 4-pin M12 cable and a 10 V DC to 30 V DC power source.

Which sensing-range version should I choose for flush mounting in an M12 thread?

This model provides a 4 mm nominal sensing range and a 3.24 mm safe sensing range, designed for flush installation in an M12 x 1 threaded hole with a maximum tightening torque of 12 Nm.
